Multifunction Switch, Wiper/Washer Portion

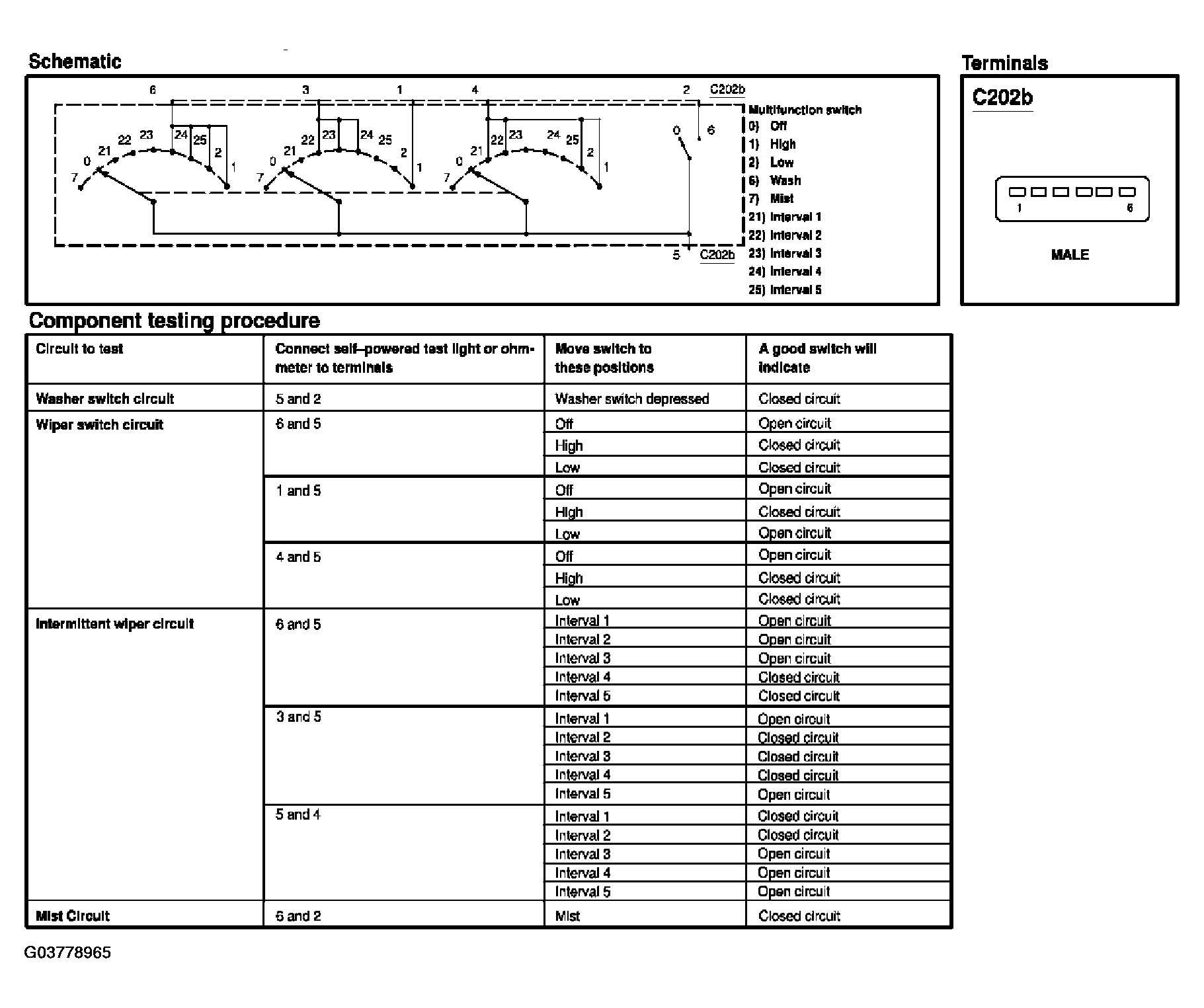

Fig 1: Testing Multifunction Switch, Wiper/Washer Portion
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
