Pinpoint Test A: No Communication With The Navigation System Module

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

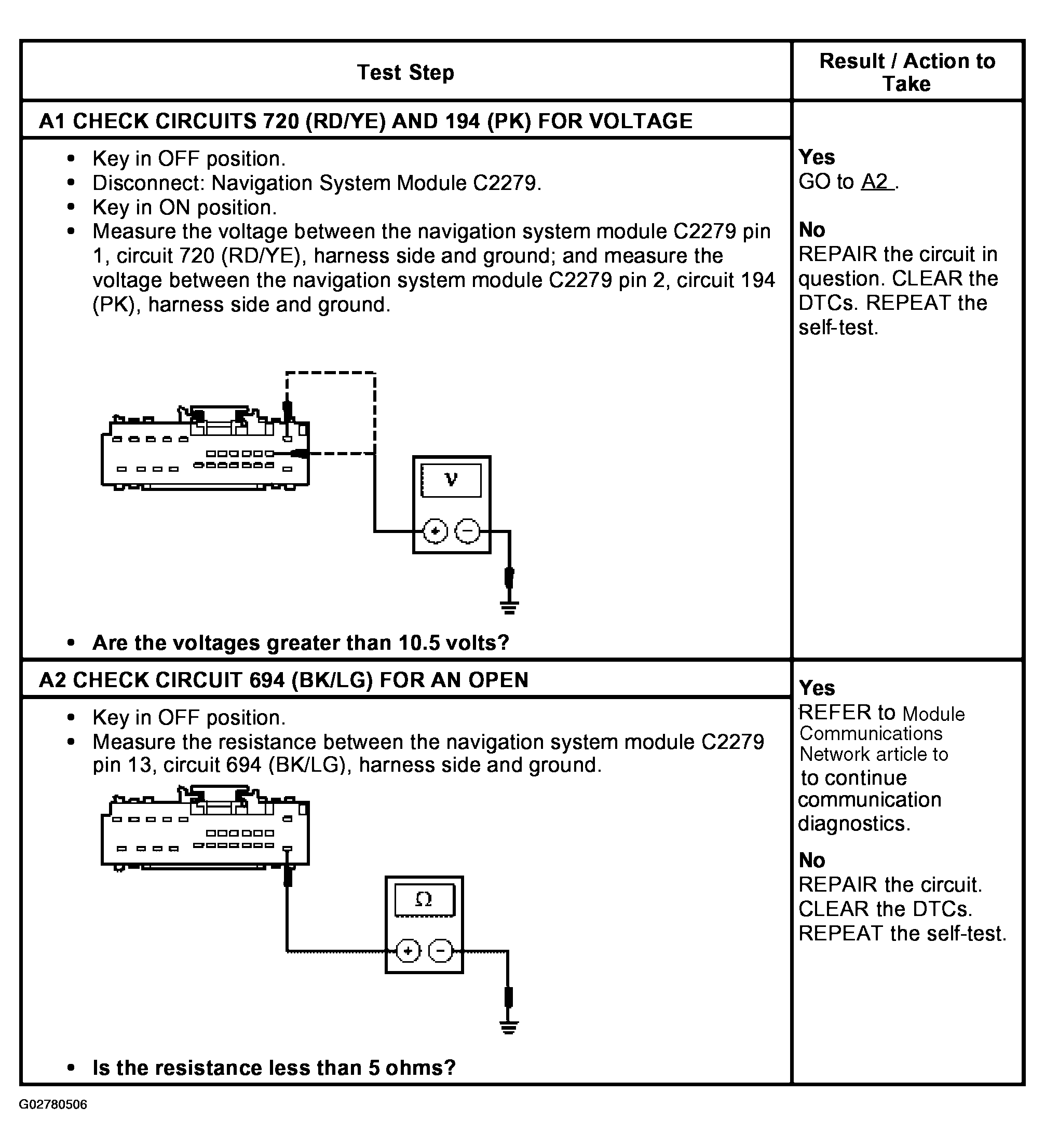

Fig 1: Pinpoint Test A: No Communication With Navigation System Module (Steps A1-A2)

Courtesy of FORD MOTOR CO.
