System View - 3.0L 2V Engine (CII Pump)

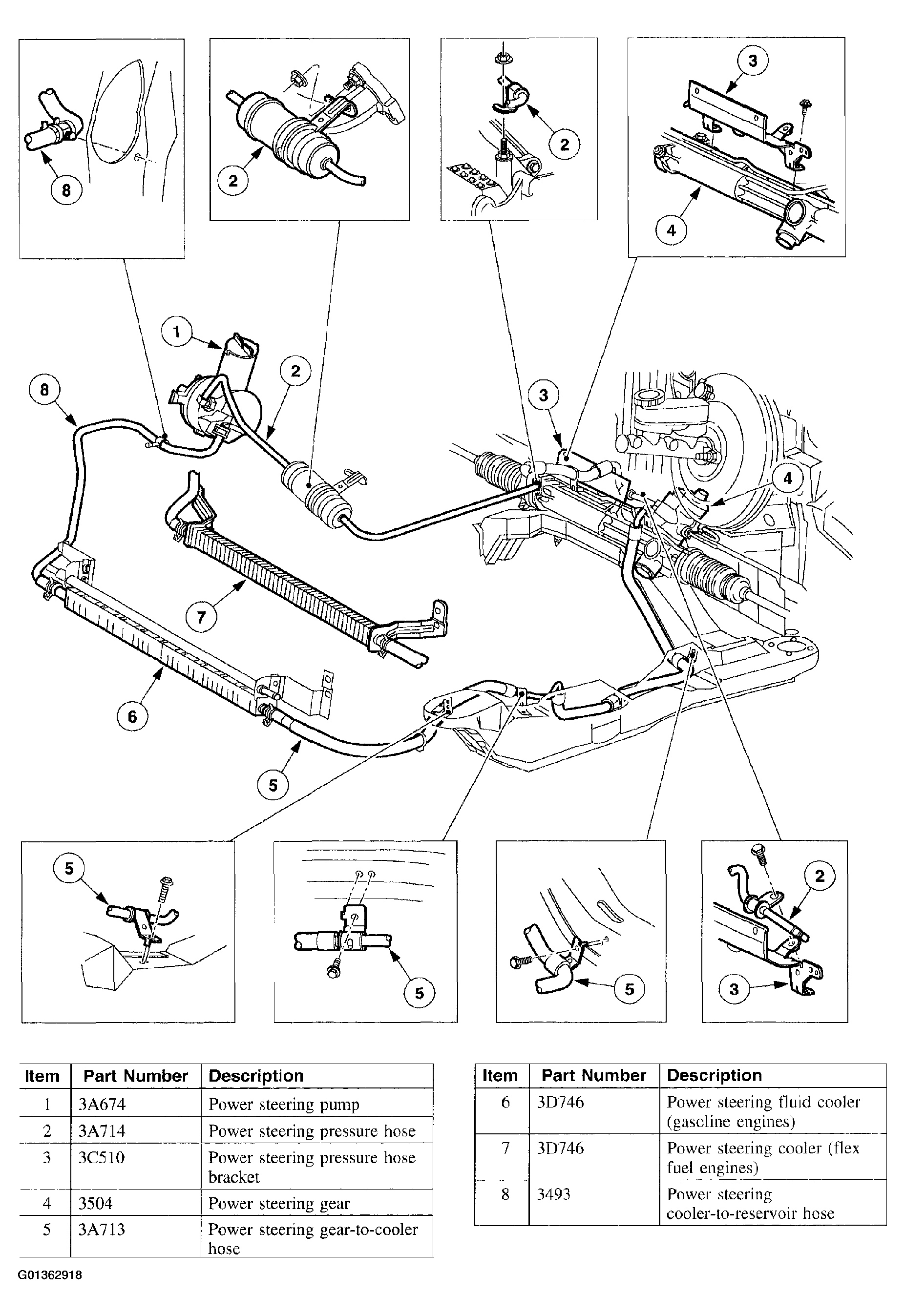

Fig 1: Identifying System View - 3.0L 2V Engine (CII Pump)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
