Pinpoint Test A: No Communication With The Smart Junction Box (SJB)

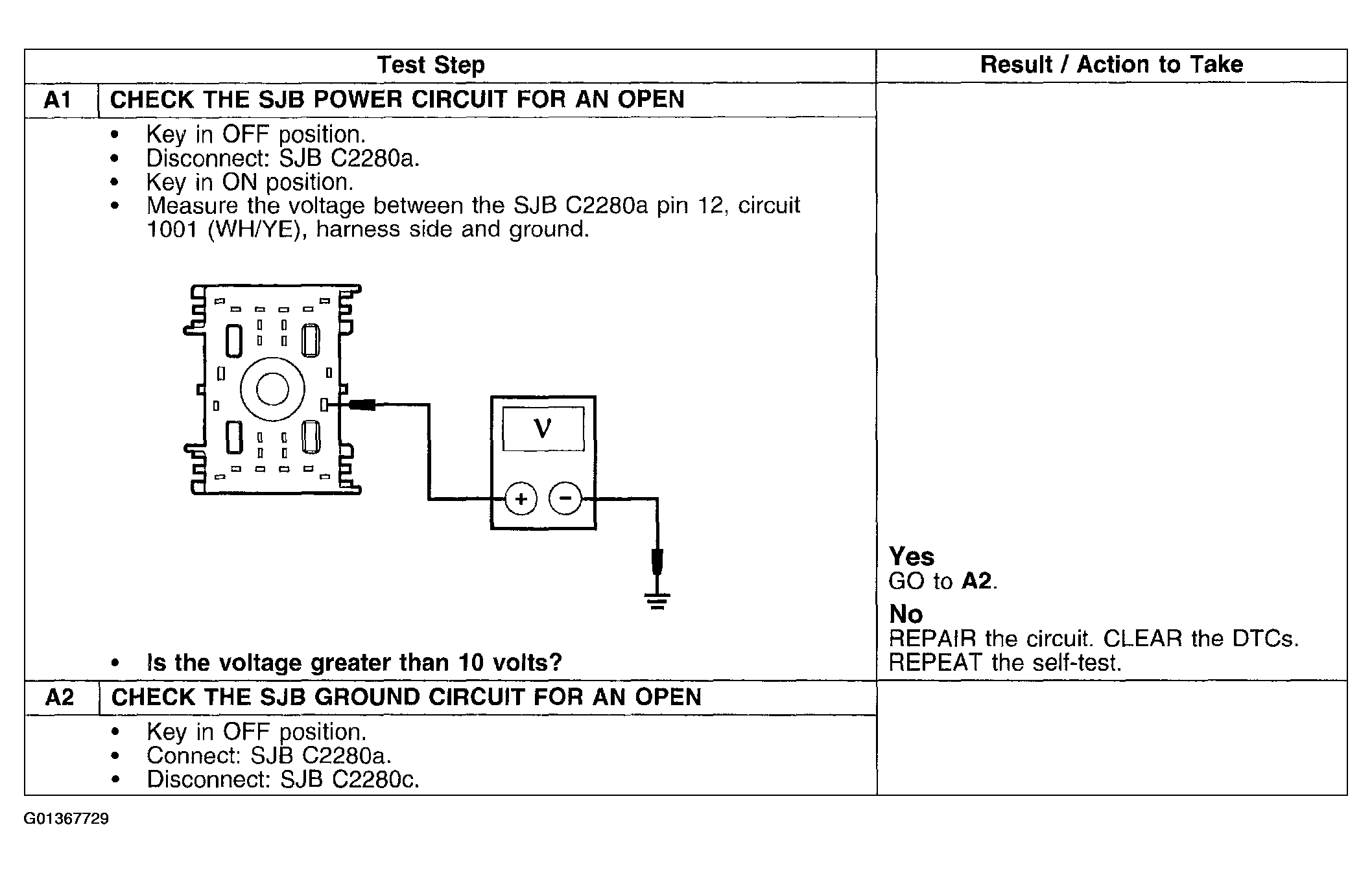

Fig 1: Pinpoint Test A: No Communication With The Smart Junction Box (SJB) (Step A1-A2)
G01367729Courtesy of FORD MOTOR CO.

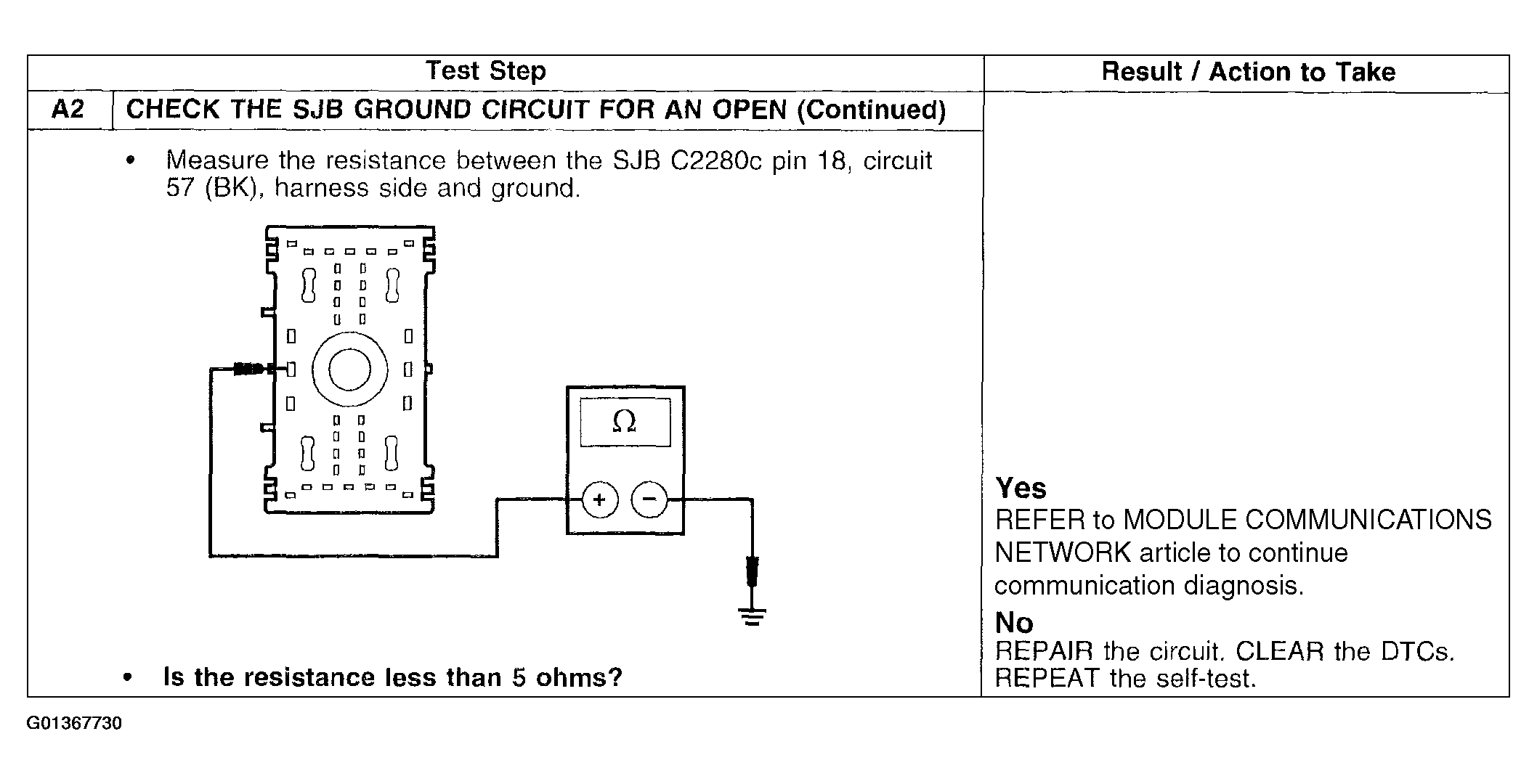

Fig 2: Pinpoint Test A: No Communication With The Smart Junction Box (SJB) (Step A2 Cont.)
G01367730Courtesy of FORD MOTOR CO.
