Pinpoint Test FD: Brake Pedal Inputs: Introduction: Notes

NOTE: This pinpoint test is intended to diagnose the following:

• Brake Pedal Position (BPP) switch.
• Brake pedal applied (BPA).
• Harness circuits: B+, BPP, BPA.
• Powertrain control module (PCM) (12A650).

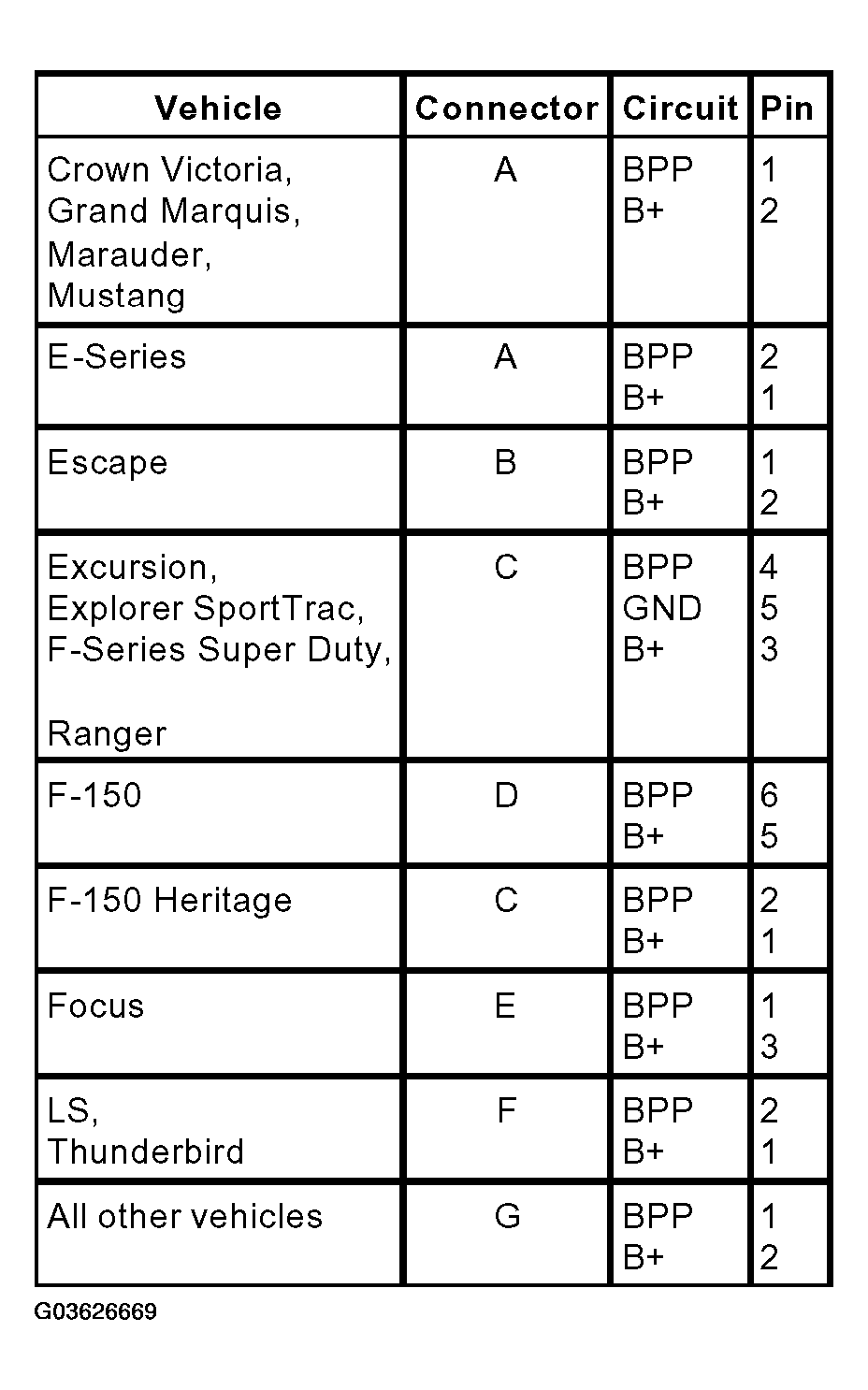

Fig 1: Identifying Brake Pedal Position (BPP) Switch Connector (1 Of 3)

Courtesy of FORD MOTOR CO.

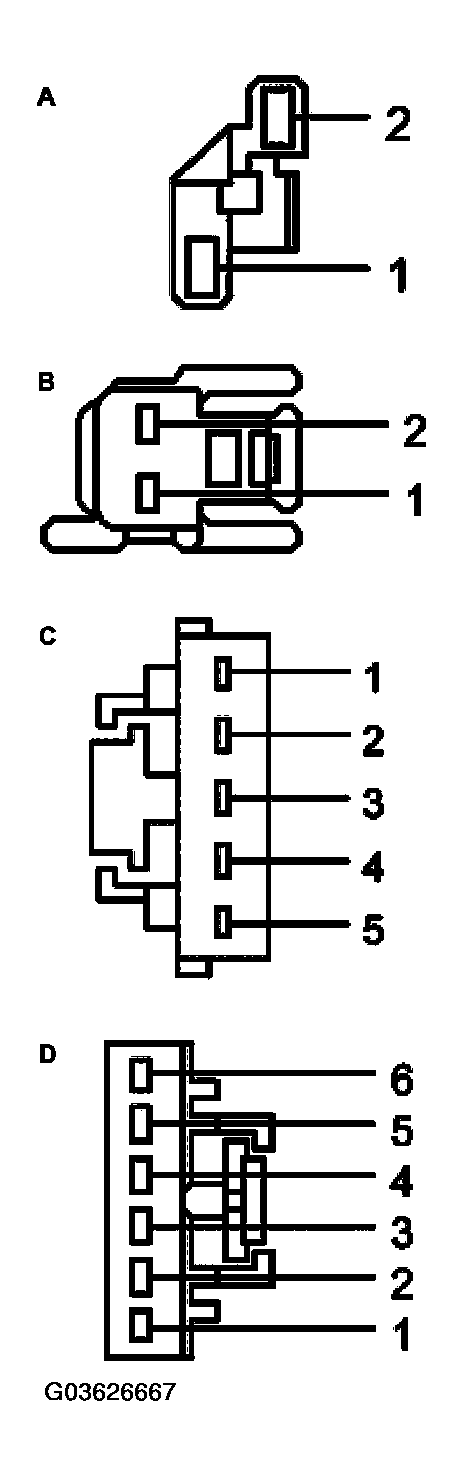

Fig 2: Identifying Brake Pedal Position (BPP) Switch Connector (2 Of 3)

Courtesy of FORD MOTOR CO.

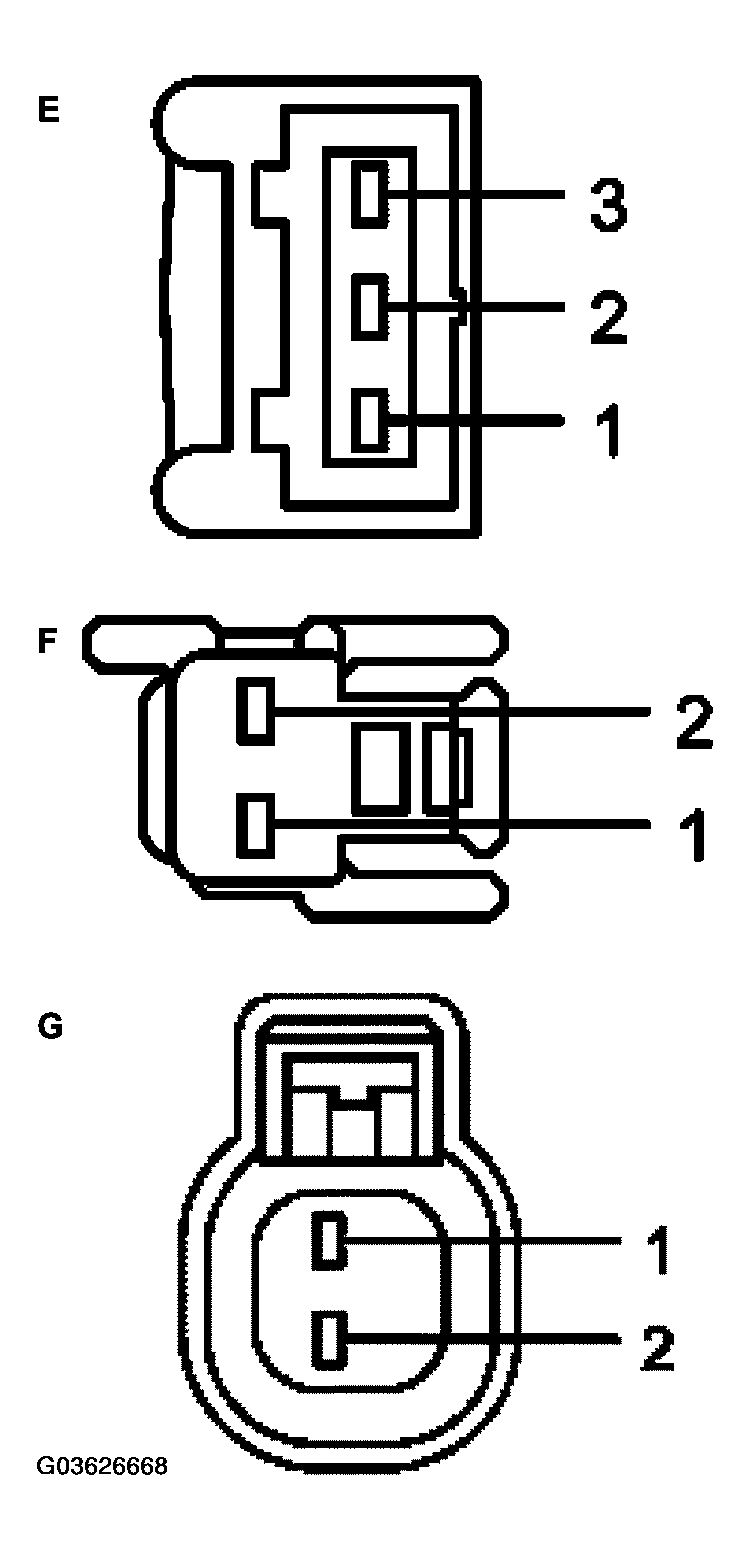

Fig 3: Identifying Brake Pedal Position (BPP) Switch Connector (3 Of 3)

Courtesy of FORD MOTOR CO.

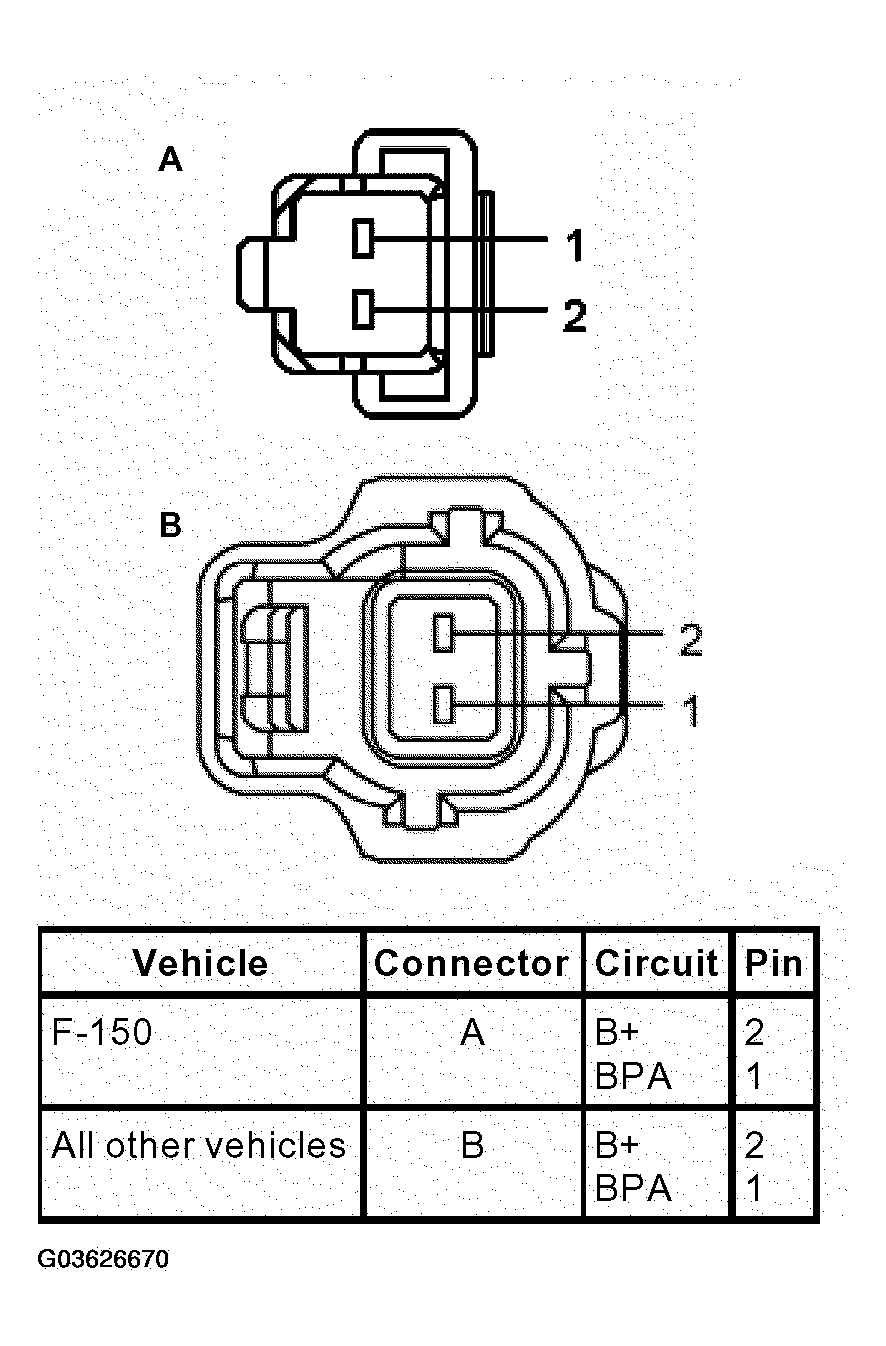

Fig 4: Identifying Brake Pressure Applied (BPA) Switch Connector

Courtesy of FORD MOTOR CO.
