Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Prior to removal of the module, it is necessary to upload module configuration information to the appropriate diagnostic tool. This information needs to be downloaded into the new module once installed. For additional information, refer to MODULE CONFIGURATION .

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
Loosen the bolts and disconnect the bulkhead connectors from the instrument panel fuse junction panel.

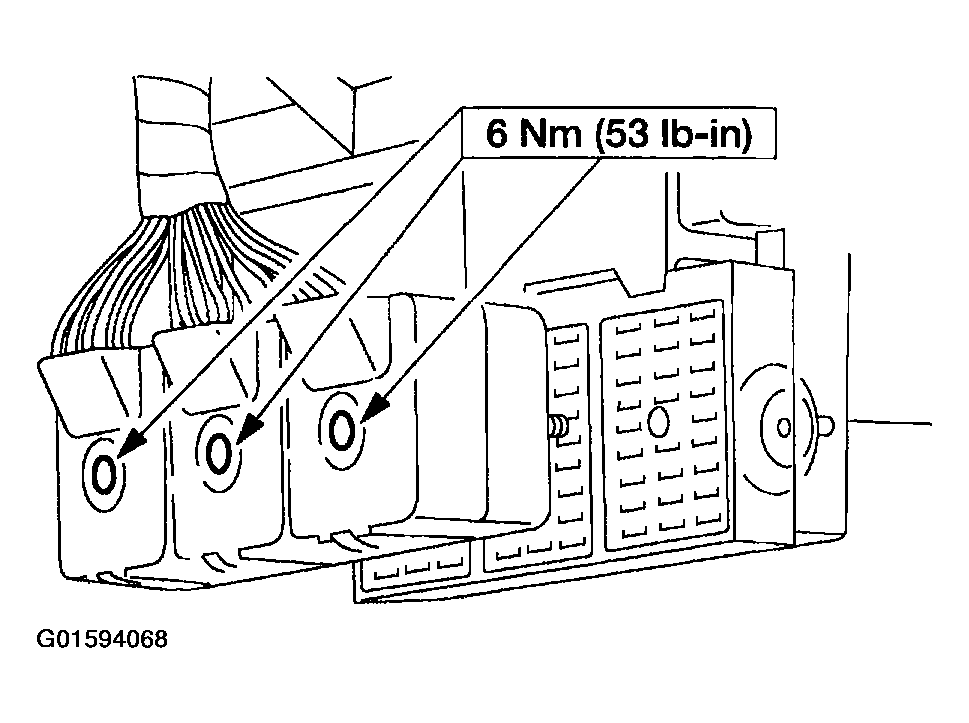

Fig 1: Disconnecting Bulkhead Connectors From Instrument Panel Fuse Junction Panel
Courtesy of FORD MOTOR CO.
Position the instrument panel fuse junction panel aside.
1. Remove the nuts.
2. Remove clips.

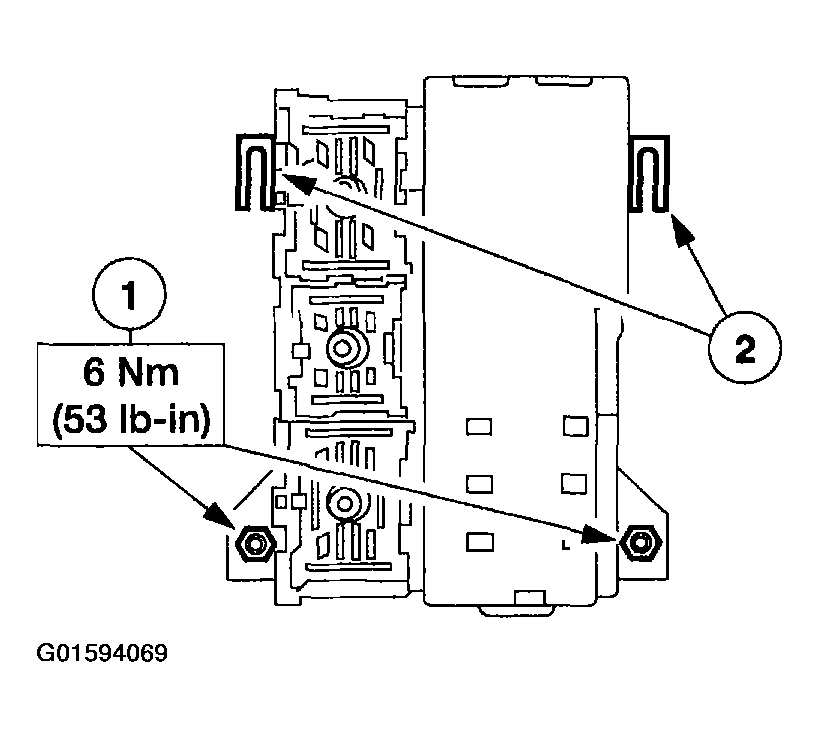

Fig 2: Removing Clip And Nuts
Courtesy of FORD MOTOR CO.
Remove the generic electronic module (GEM).
1. Disconnect the electrical connectors.
2. Remove the screw.
3. Unclip and remove the GEM.

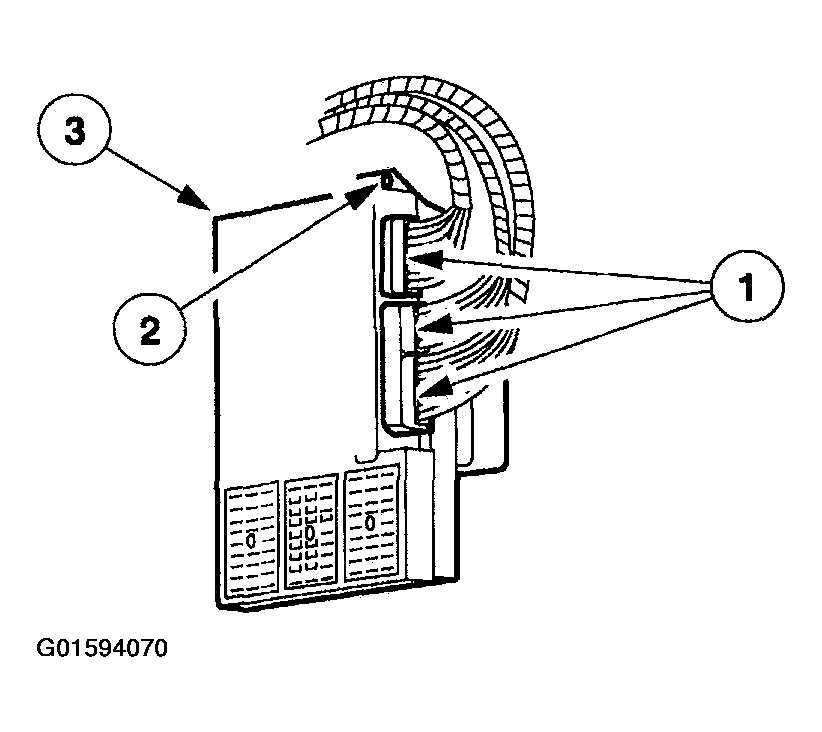

Fig 3: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.

CAUTION: Once the new module is installed, it is necessary to download the module configuration information from the diagnostic tool equipment into the new module. For additional information, refer to MODULE CONFIGURATION .

To install, reverse the removal procedure.
