Pinpoint Test B: The Remote Climate (RCC) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

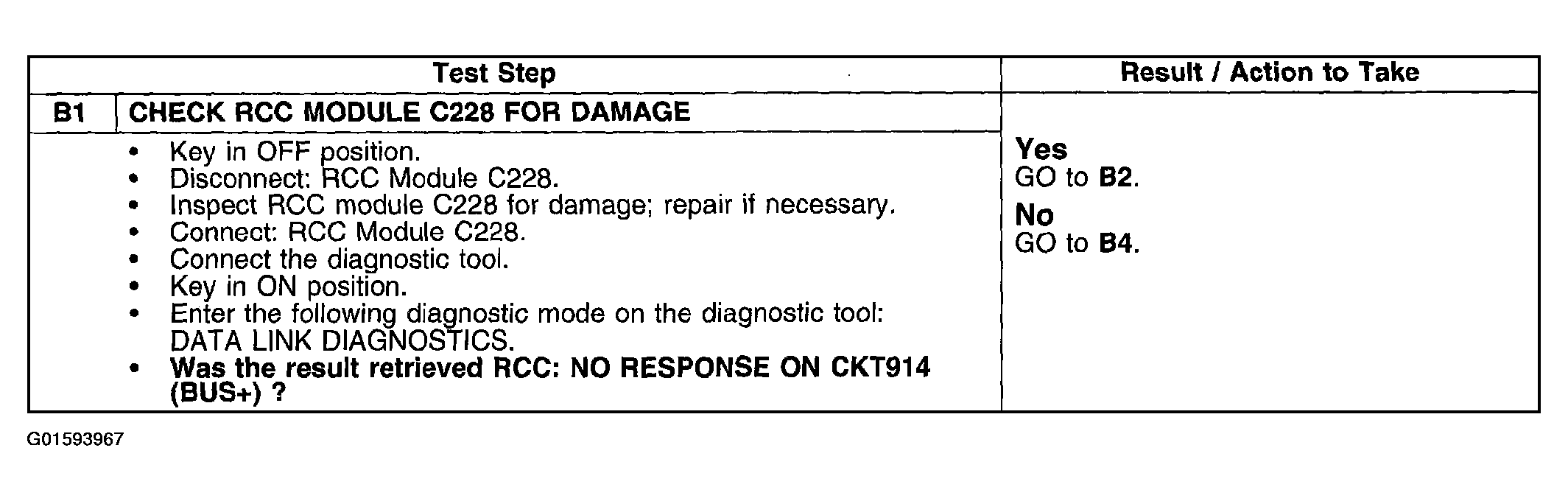

Fig 1: Pinpoint Test B: Remote Climate (RCC) Module Does Not Respond To Diagnostic Tool (Steps B1)

Courtesy of FORD MOTOR CO.

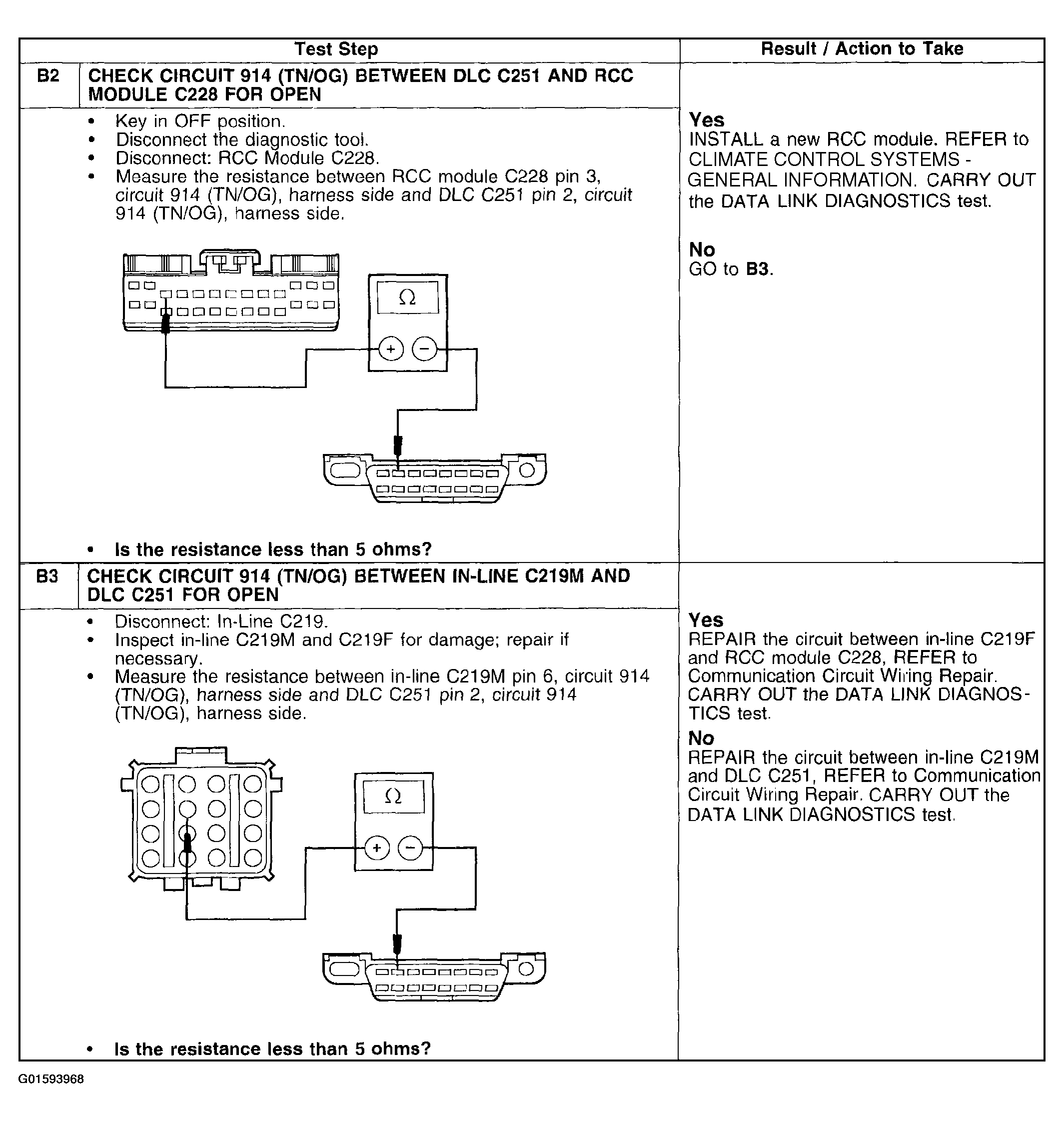

Fig 2: Pinpoint Test B: Remote Climate (RCC) Module Does Not Respond To Diagnostic Tool (Steps B2-B3)

Courtesy of FORD MOTOR CO.

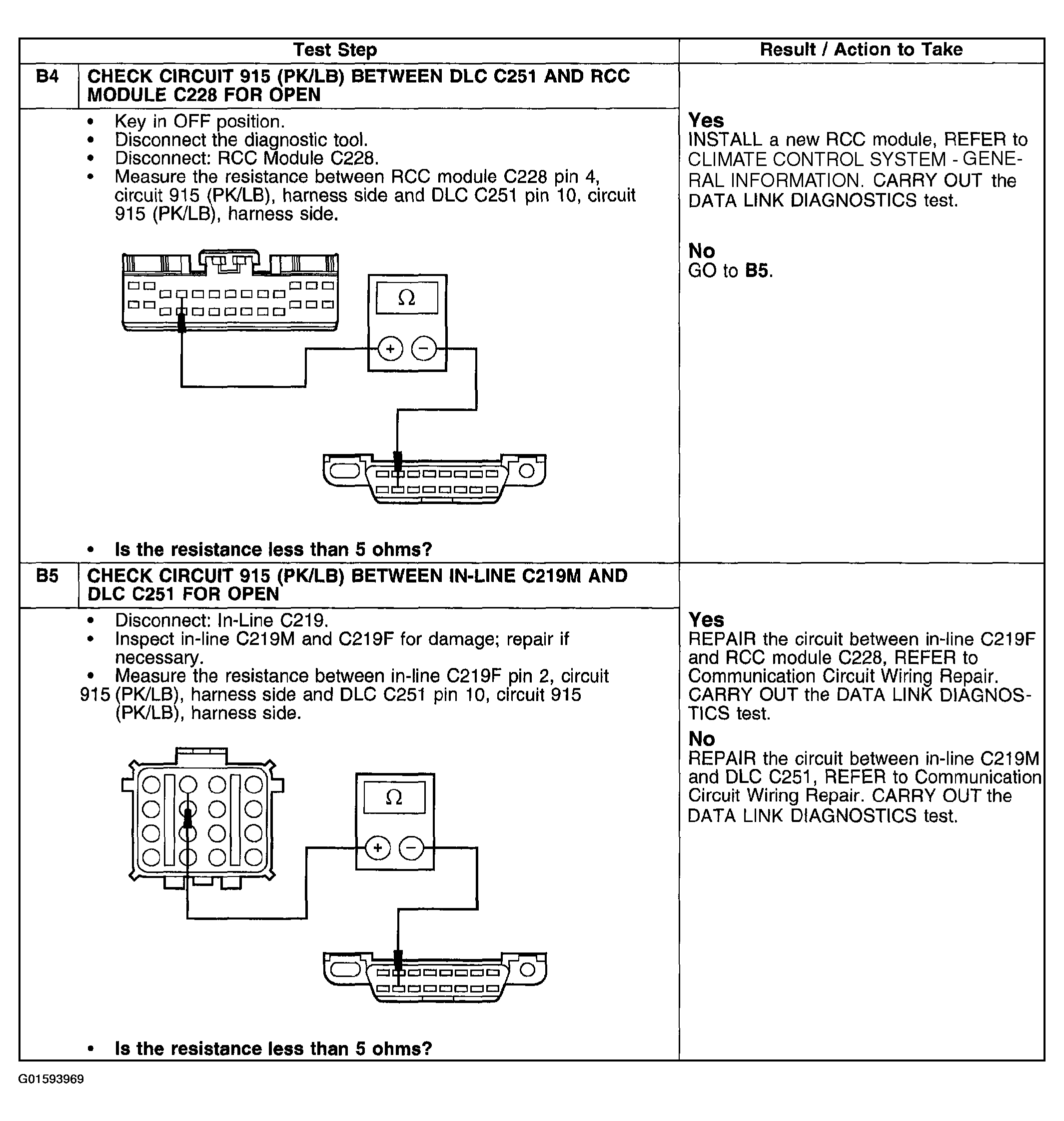

Fig 3: Pinpoint Test B: Remote Climate (RCC) Module Does Not Respond To Diagnostic Tool (Steps B4-B5)

Courtesy of FORD MOTOR CO.
