Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Sped Control Inoperative

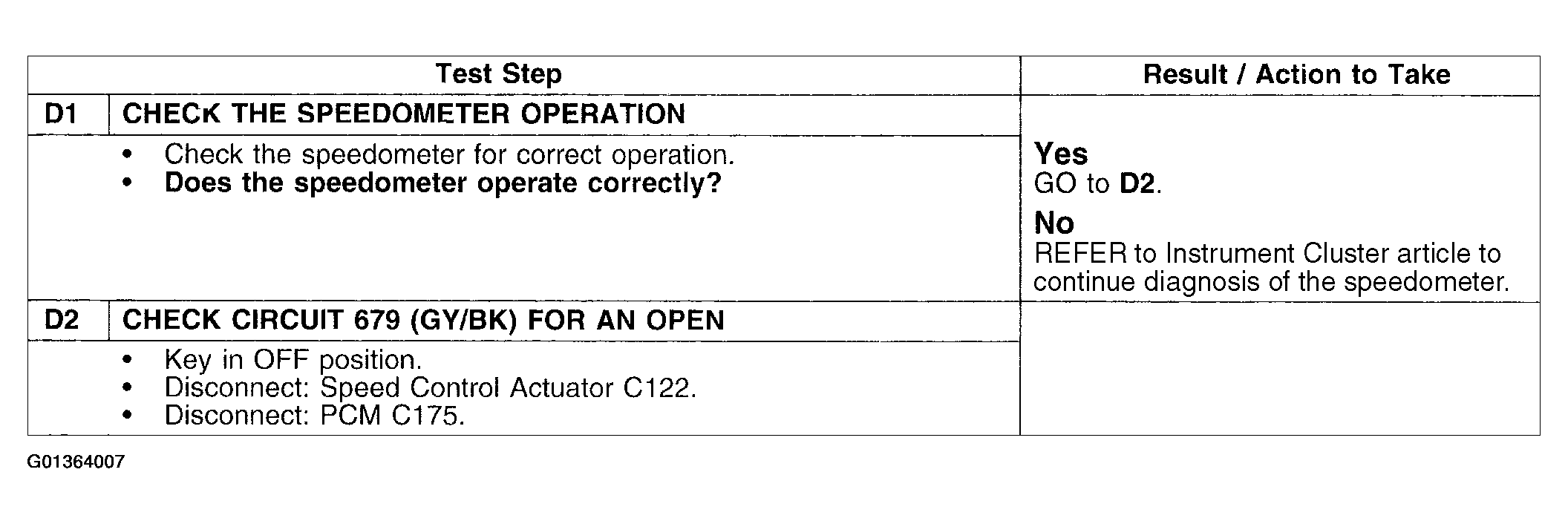

Fig 1: Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Sped Control Inoperative (Steps D1 To D2)
G01364007Courtesy of FORD MOTOR CO.

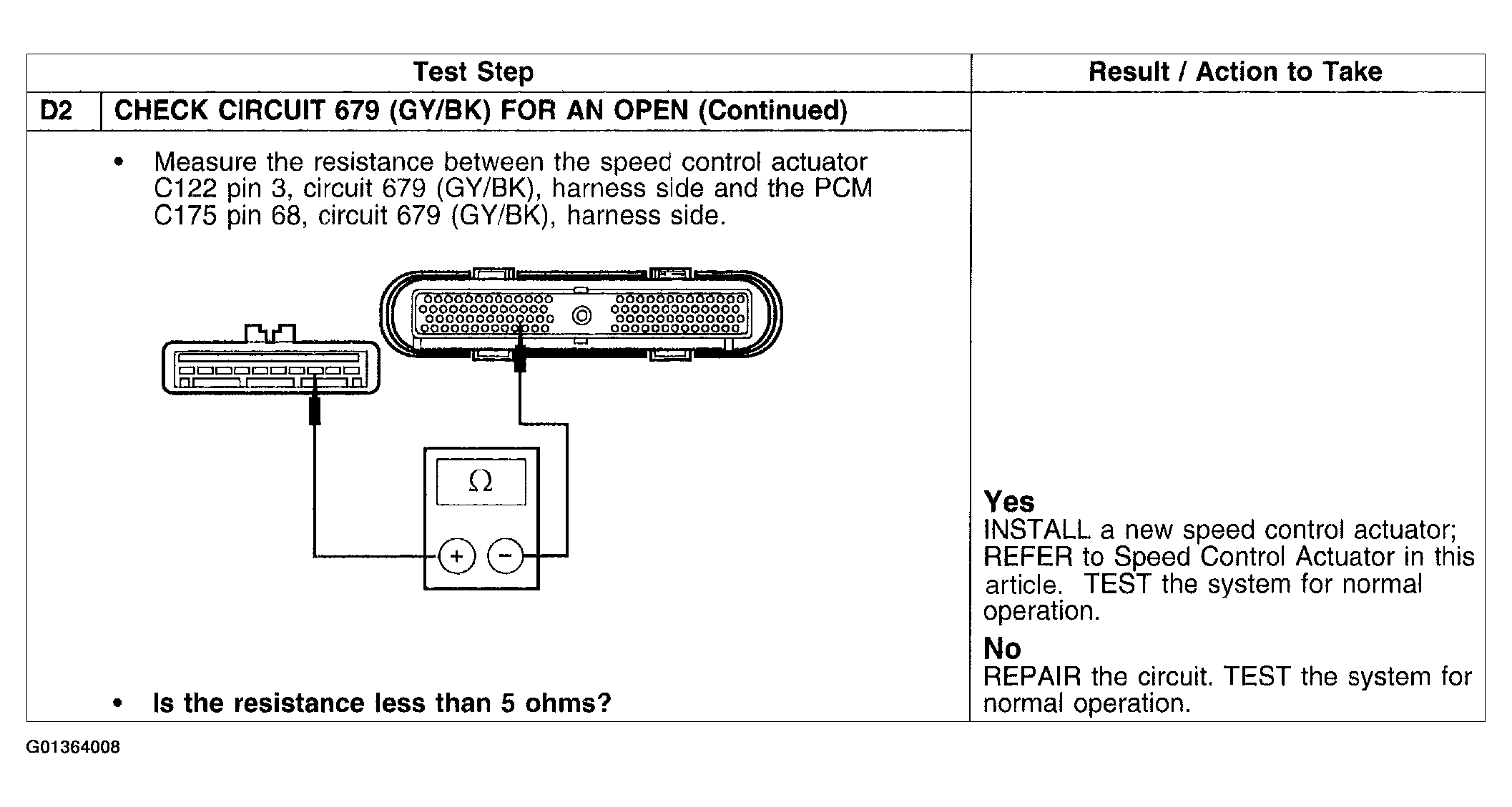

Fig 2: Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Sped Control Inoperative (Step D2 Continued)
G01364008Courtesy of FORD MOTOR CO.
