Removal and Installation

    NOTE: Driver door shown, all others similar.
  1. Remove the door trim panel. For additional information, refer to INTERIOR TRIM AND ORNAMENTATION .
  2. Remove the window control switch.
    1. Disconnect the window control switch electrical connectors.
    2. Release the 6 window control switch bezel tabs.

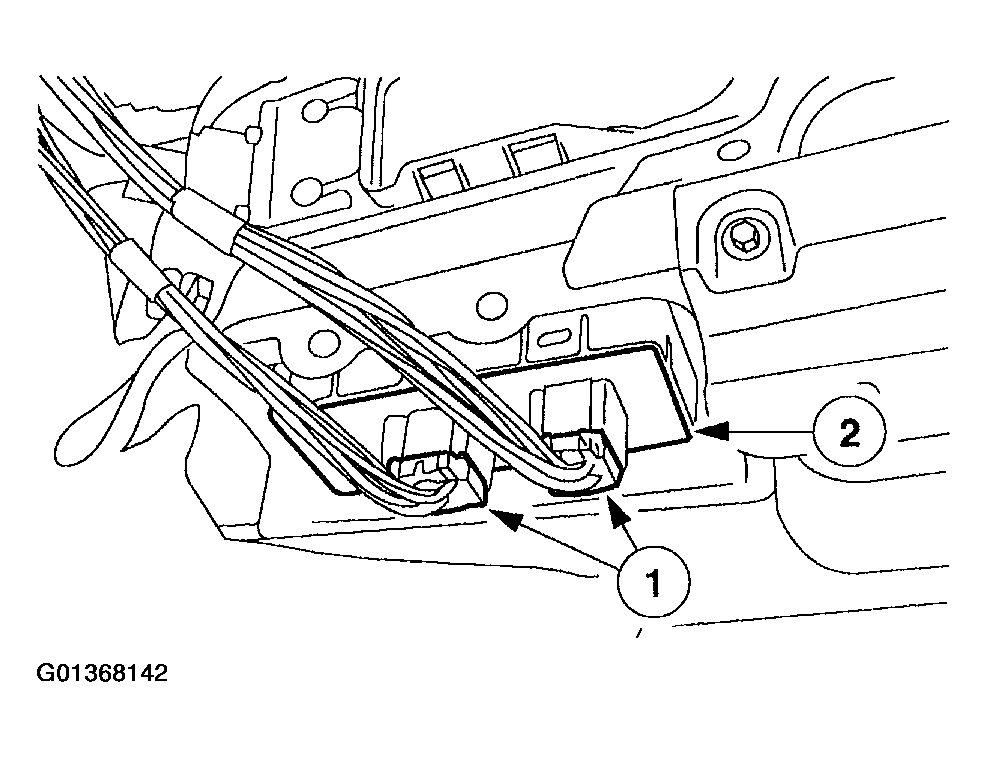

      Fig 1: Disconnecting Window Control Switch Electrical Connectors
      G01368142Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
