Valve - Spring Squareness

  1. Measure the out-of-square on each valve spring.

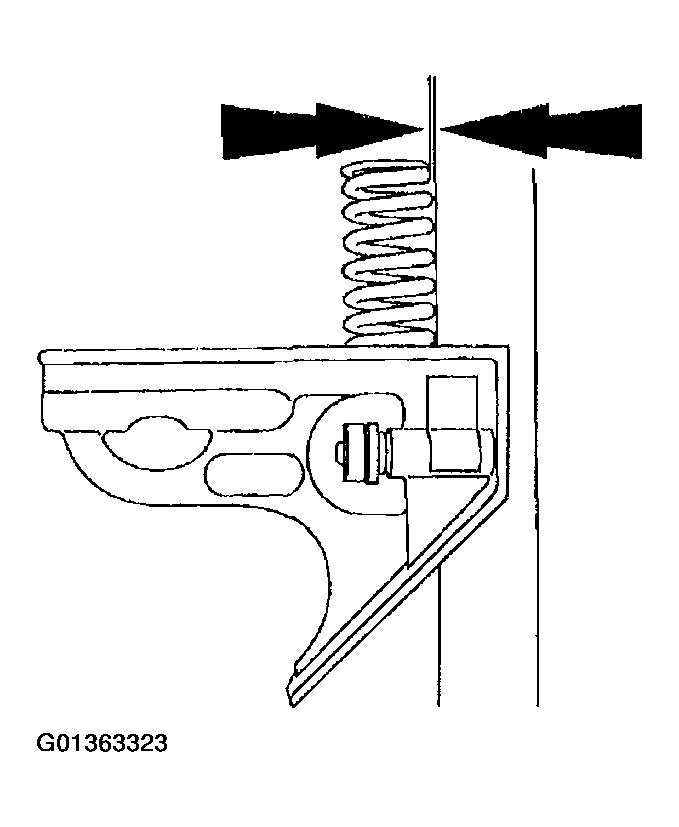

    Fig 1: Measuring Out-Of-Square On Each Valve Spring
    G01363323Courtesy of FORD MOTOR CO.
    • Turn the valve spring and observe the space between the top of the valve spring and the square. Install a new valve spring if out of square. For additional information refer to ENGINE - 3.0L (2V) or ENGINE - 3.0L (4V) .
