Pinpoint Test G Chart - Transmission Control Switch Is Inoperative
WARNING: This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

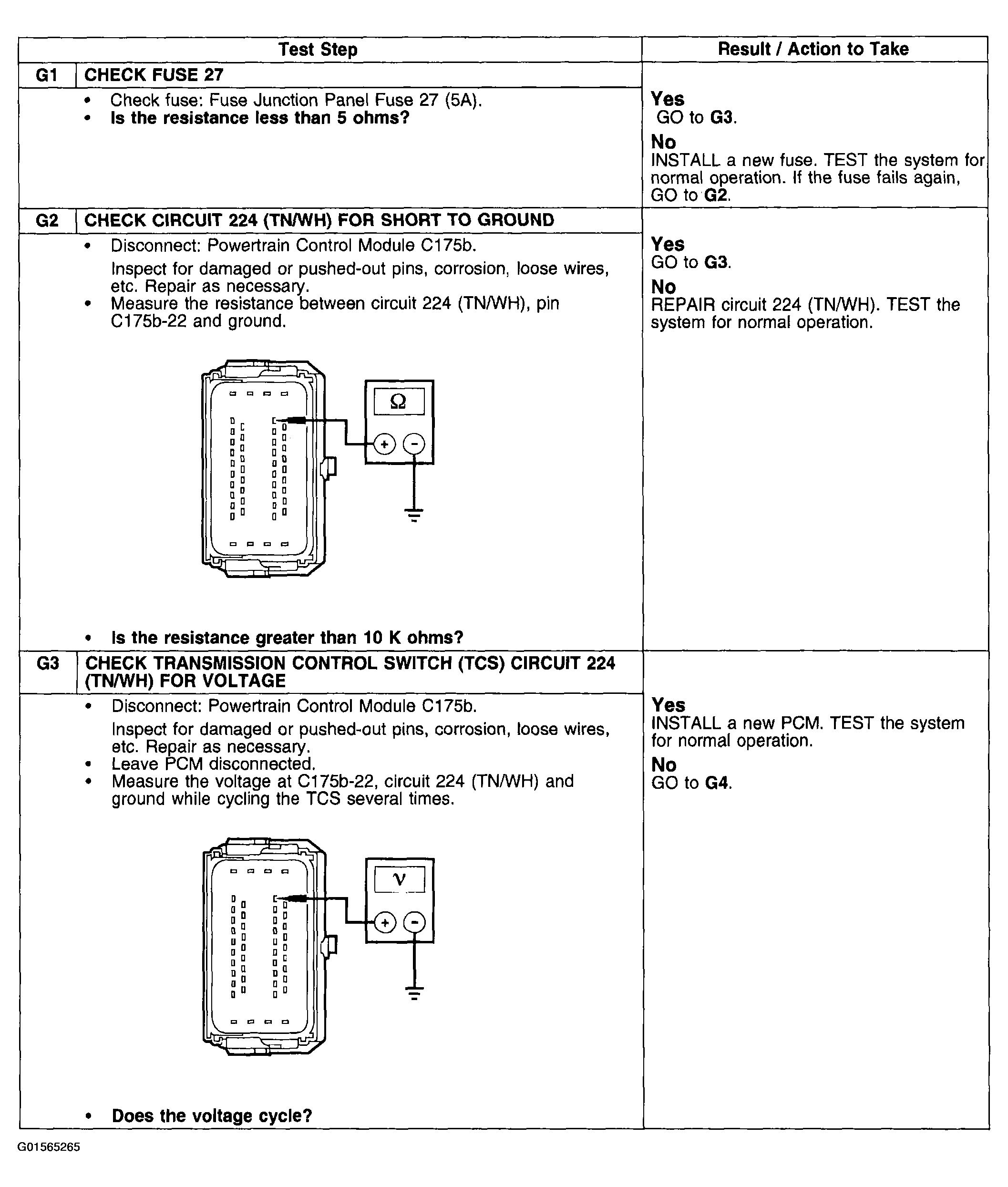

Fig 1: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G1-G3)
Courtesy of FORD MOTOR CO.

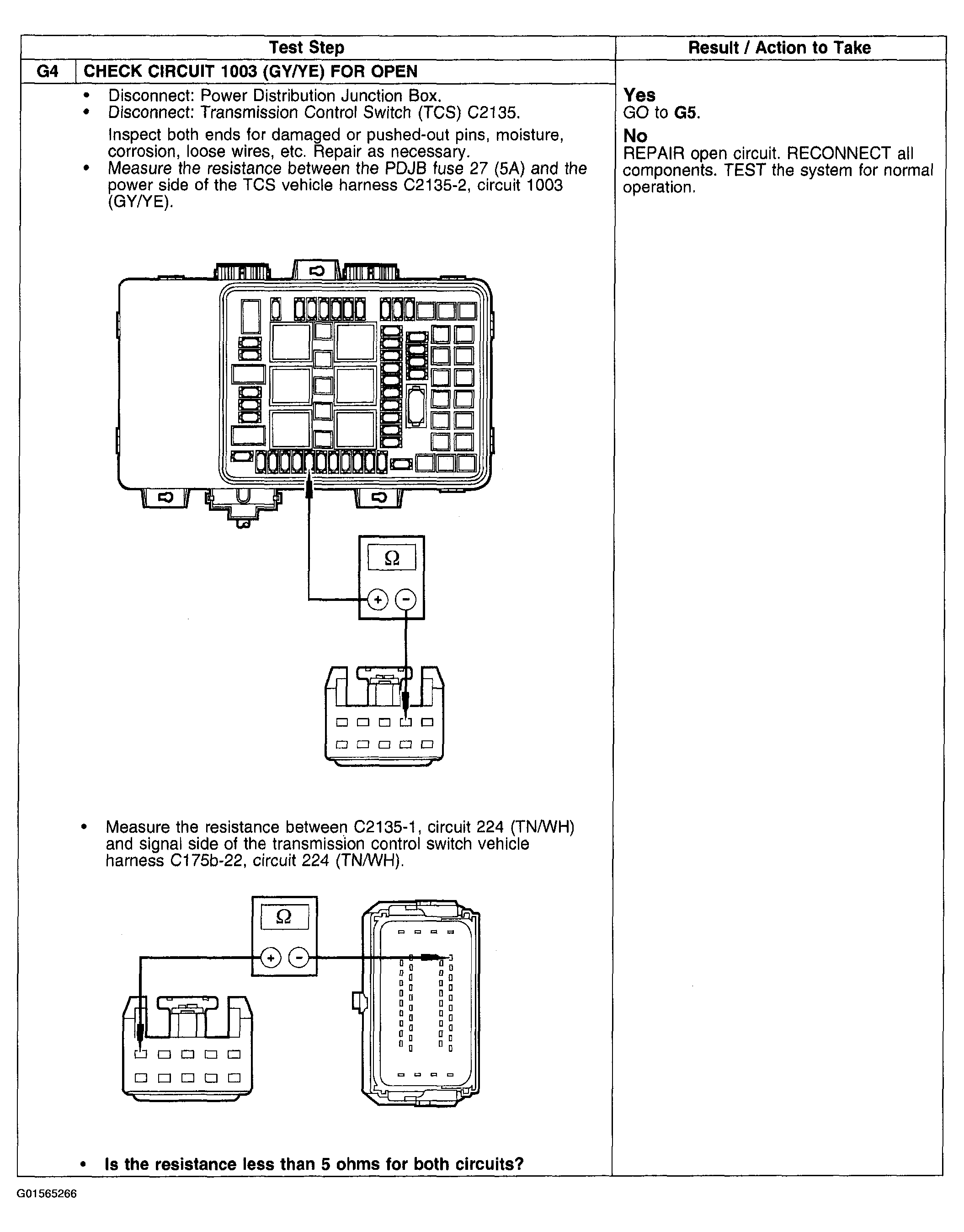

Fig 2: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G4)
Courtesy of FORD MOTOR CO.

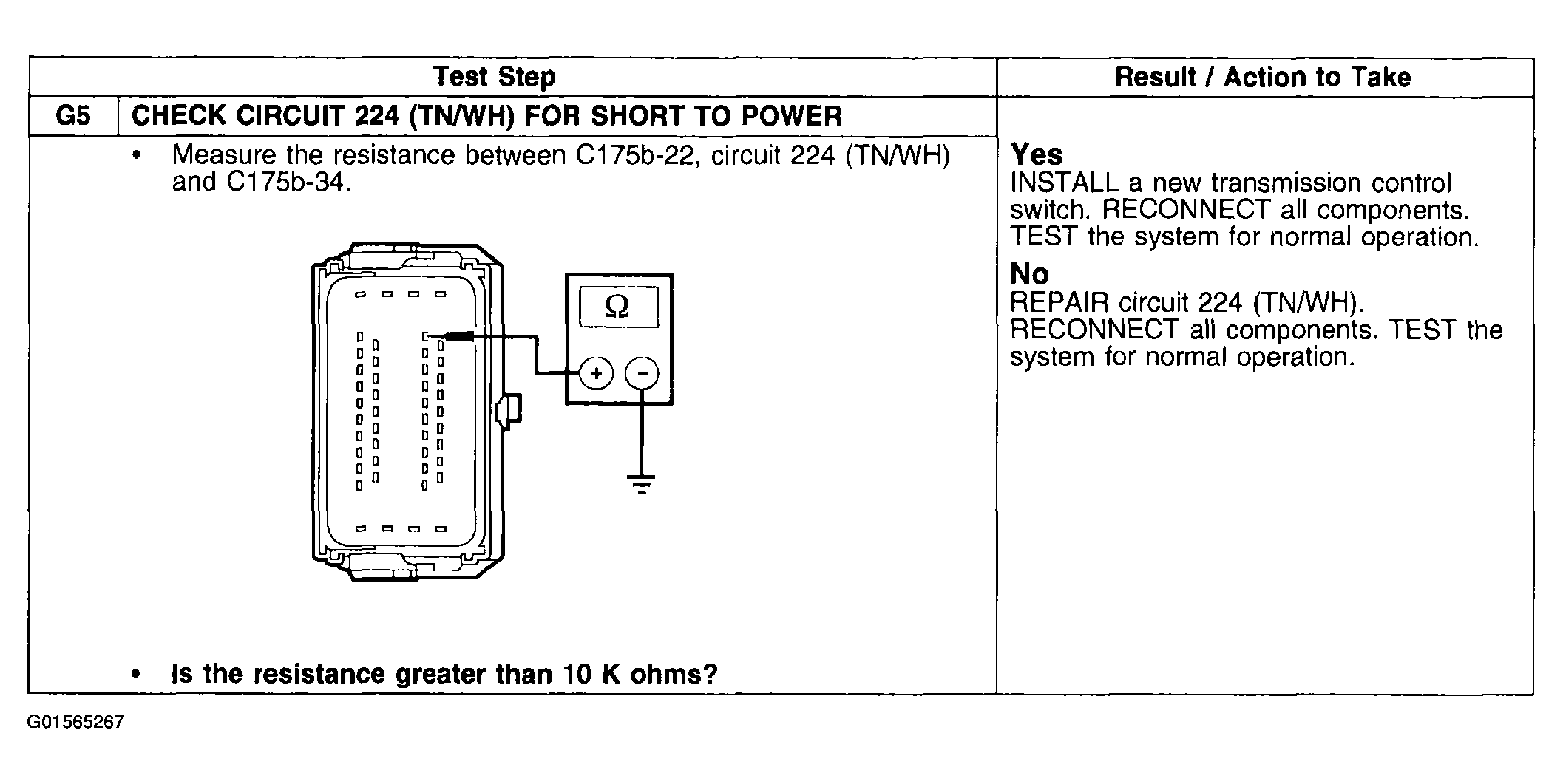

Fig 3: Pinpoint Test G Chart - Transmission Control Switch Is Inoperative (G5)
