Pinpoint Test A: Flash Code 1 - With Last Switch Pressed And No Dynamic Pull Occurs At Throttle

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

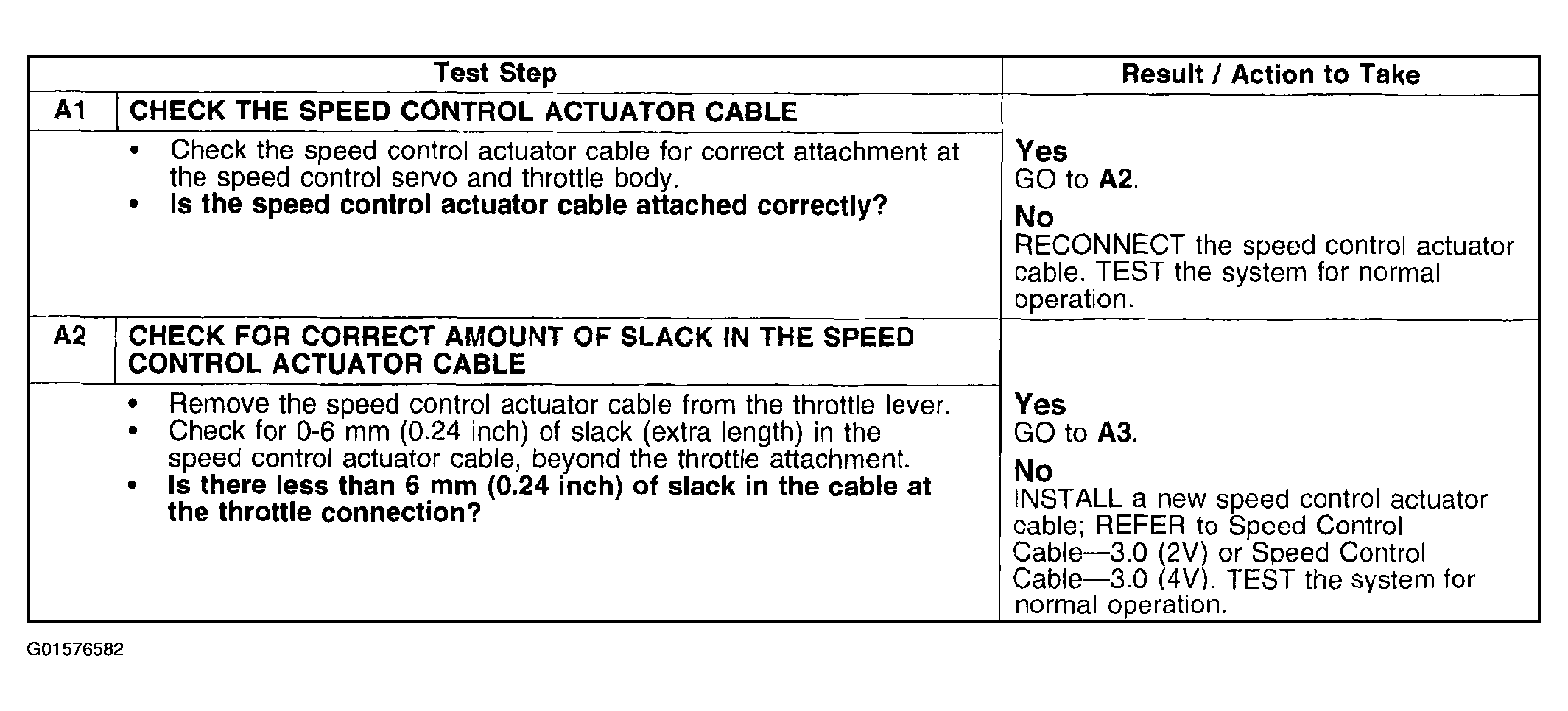

Fig 1: Pinpoint Test A: Flash Code 1 - With Last Switch Pressed And No Dynamic Pull Occurs At Throttle (Steps A1-A2)
G01576582Courtesy of FORD MOTOR CO.

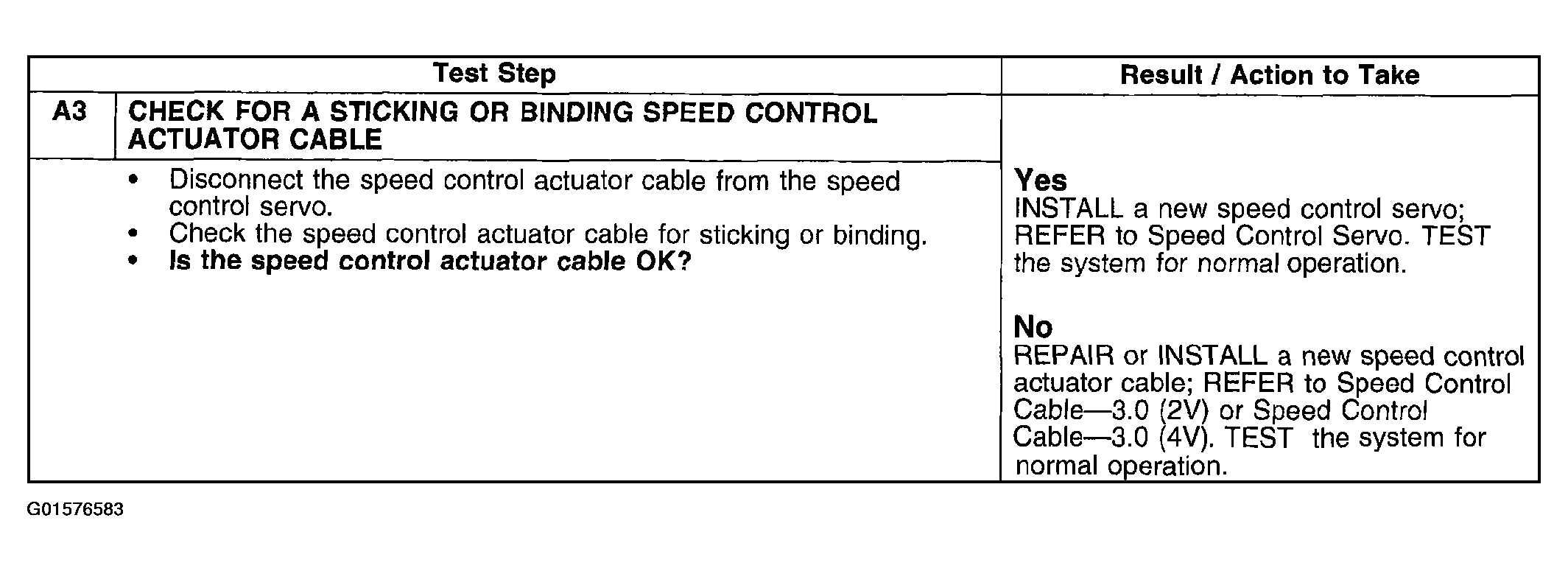

Fig 2: Pinpoint Test A: Flash Code 1 - With Last Switch Pressed And No Dynamic Pull Occurs At Throttle (Steps A3)
G01576583Courtesy of FORD MOTOR CO.
