Pinpoint Test C: Flash Code 3 - DEACTIVATOR Switch Or Circuit Failure
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

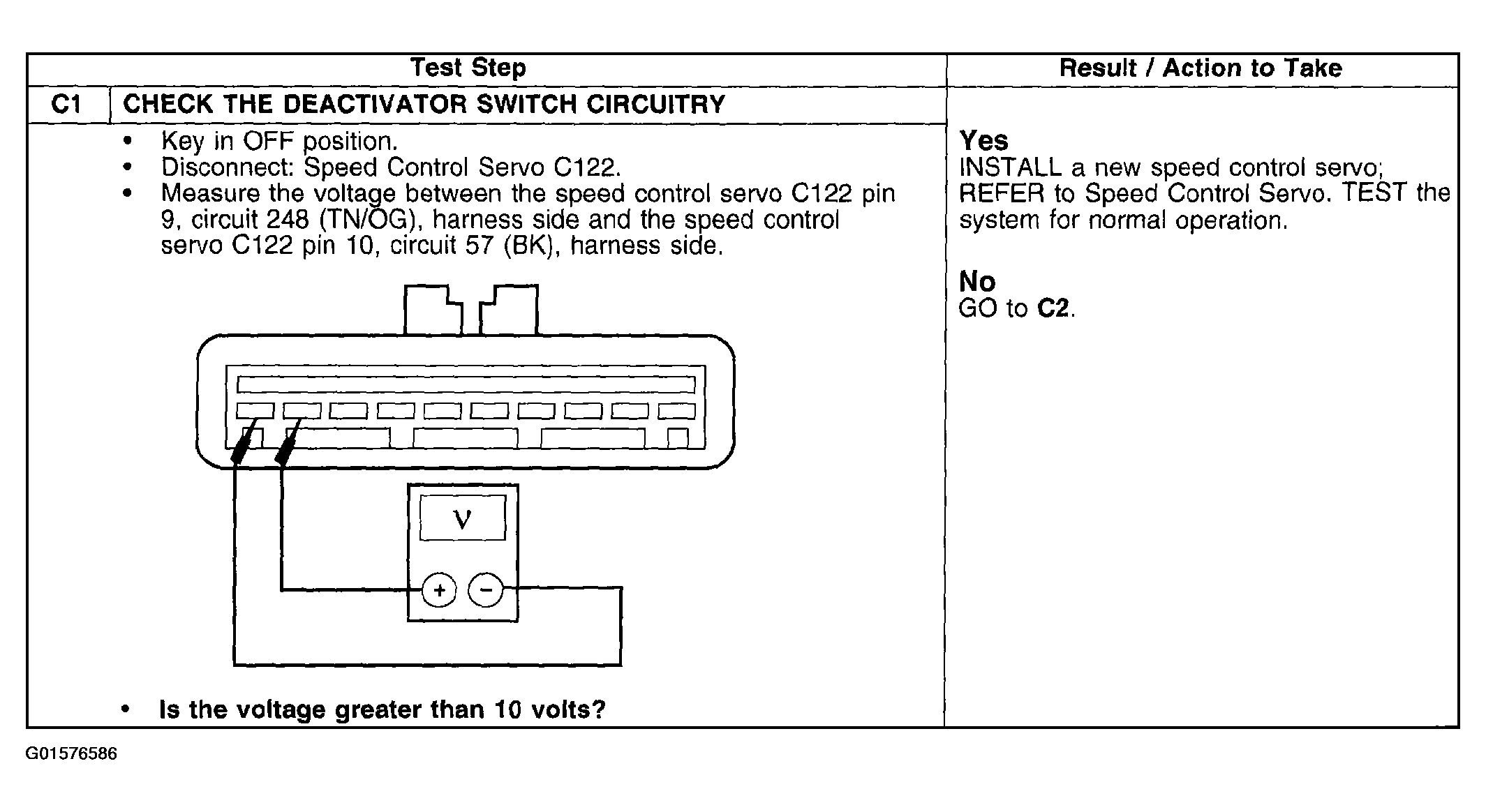

Fig 1: Pinpoint Test C: Flash Code 3 - Deactivator Switch Or Circuit Failure (Steps C1)
Courtesy of FORD MOTOR CO.

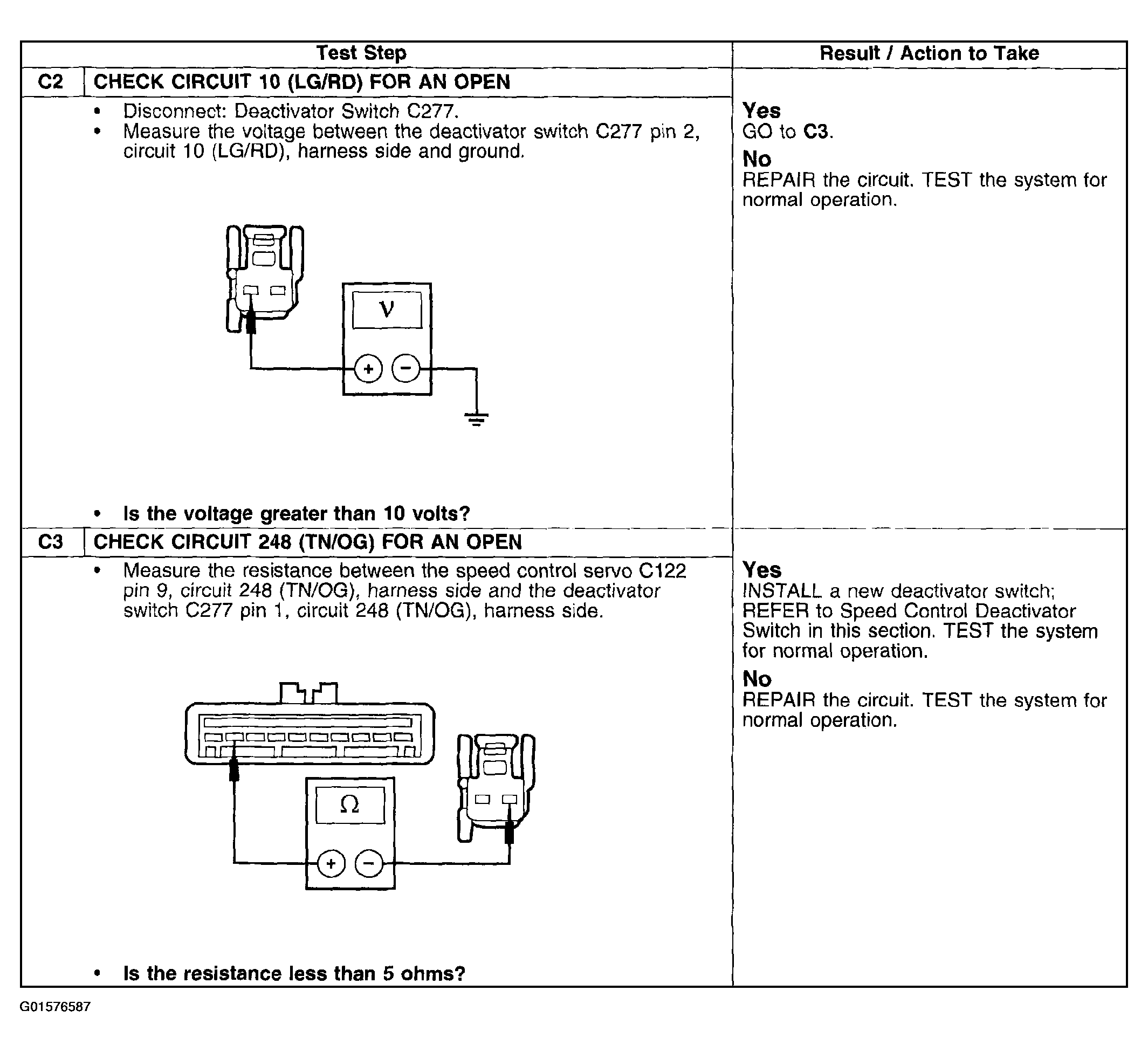

Fig 2: Pinpoint Test C: Flash Code 3 - Deactivator Switch Or Circuit Failure (Steps C2-C3)
