Pinpoint Test H: The Illuminated Entry Inoperative When Using The Keypad
WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

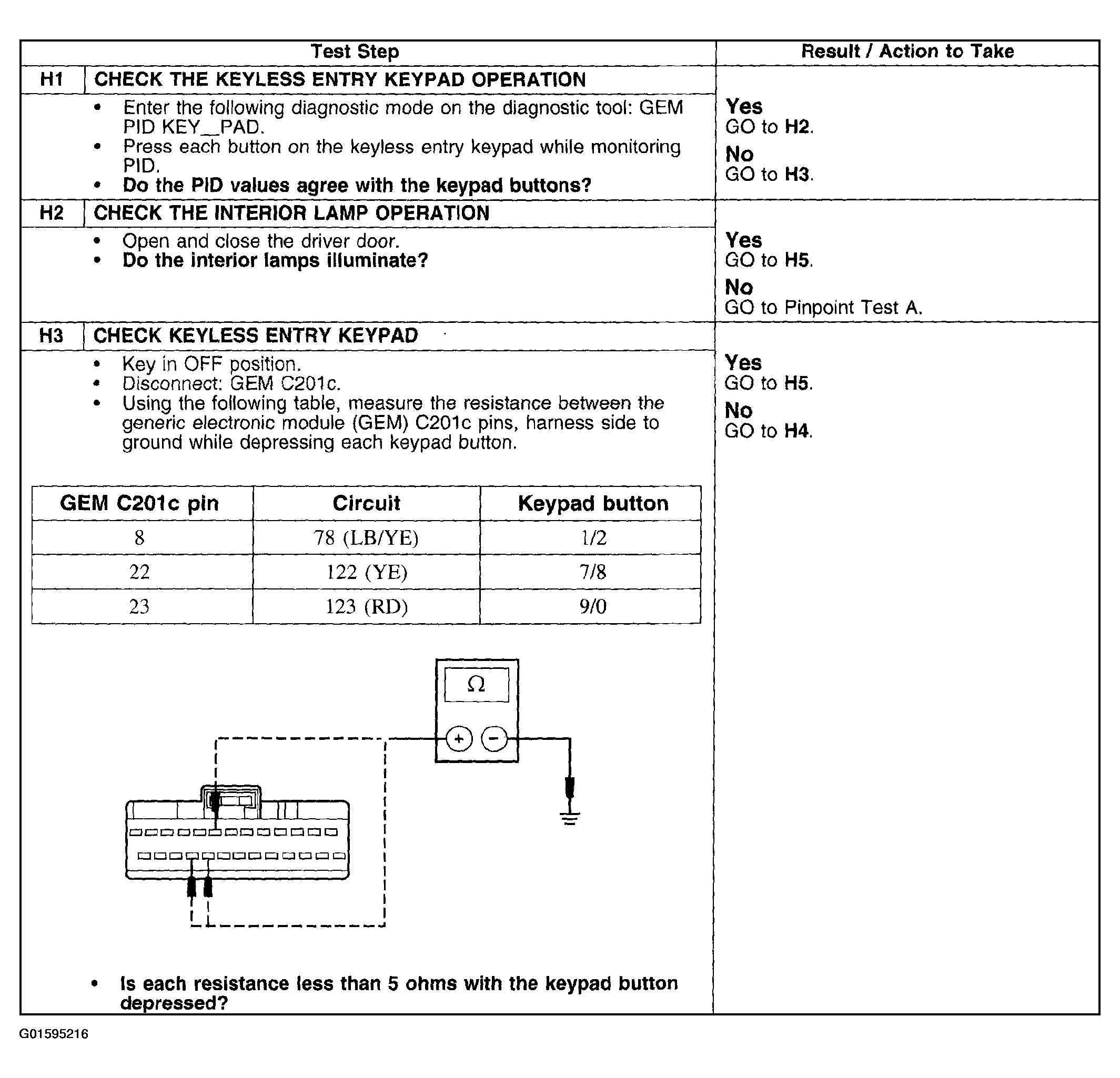

Fig 1: Pinpoint Test H: Illuminated Entry Inoperative When Using Keypad (Steps H1-H3)
Courtesy of FORD MOTOR CO.

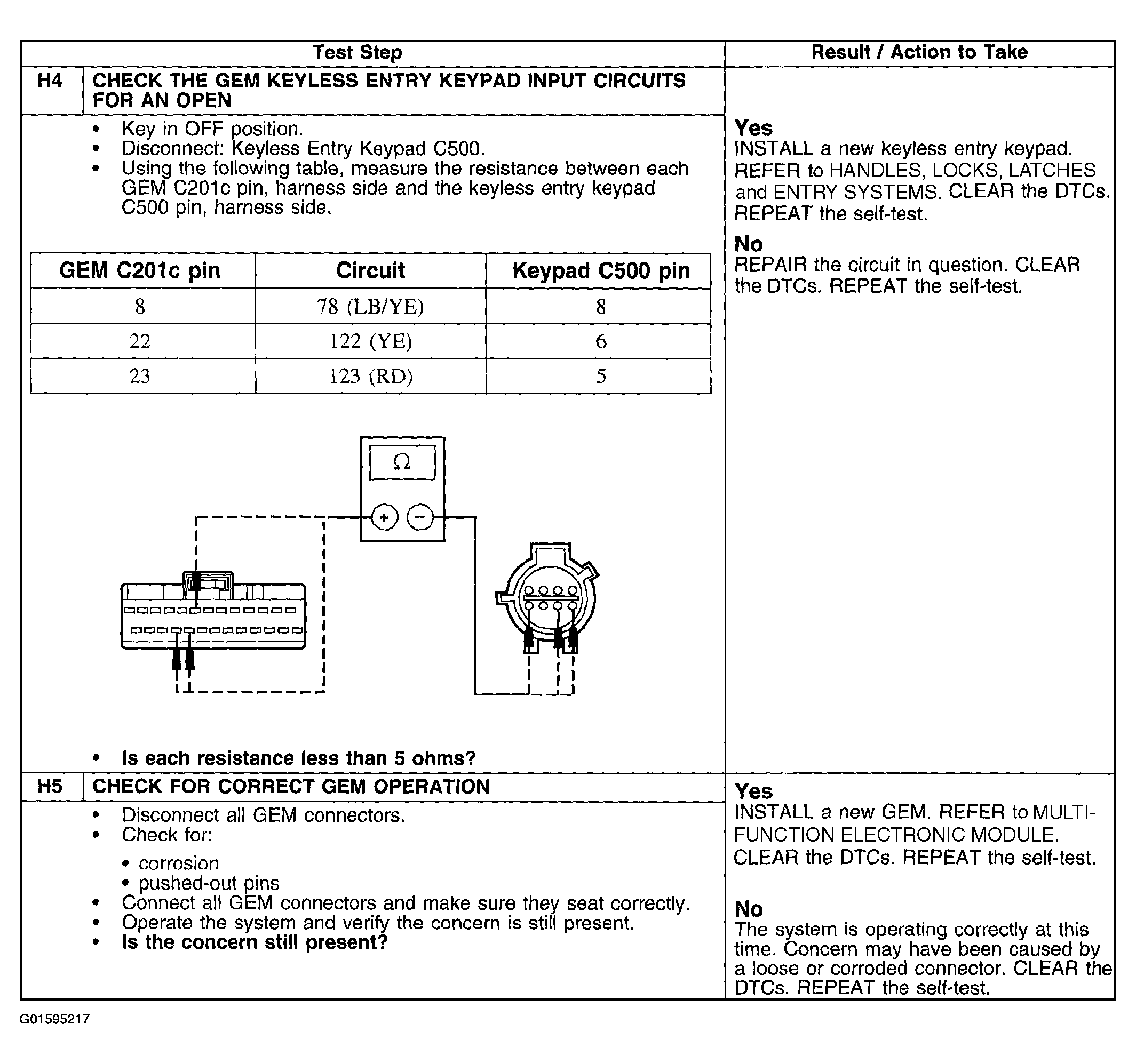

Fig 2: Pinpoint Test H: Illuminated Entry Inoperative When Using Keypad (Steps H4-H5)
