Pinpoint Test I: The Illuminated Entry Is Inoperative When Using The Remote Transmitter

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

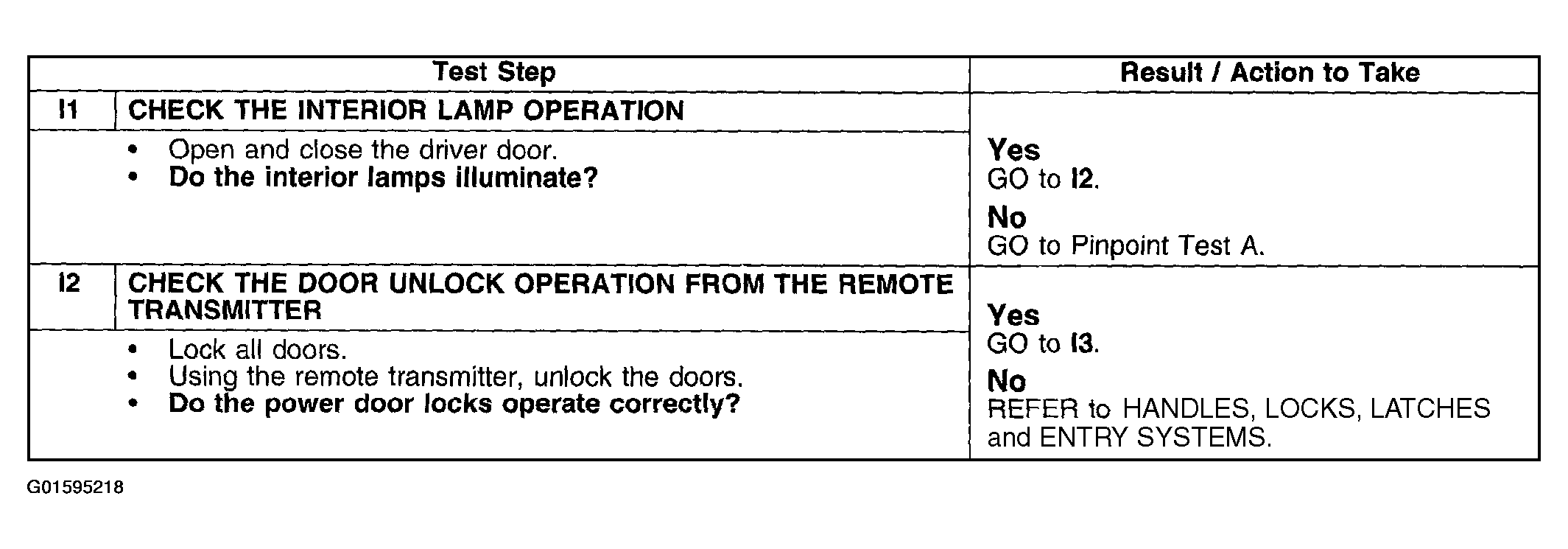

Fig 1: Pinpoint Test I: Illuminated Entry Inoperative When Using Remote Transmitter (Steps I1-I2)
G01595218Courtesy of FORD MOTOR CO.

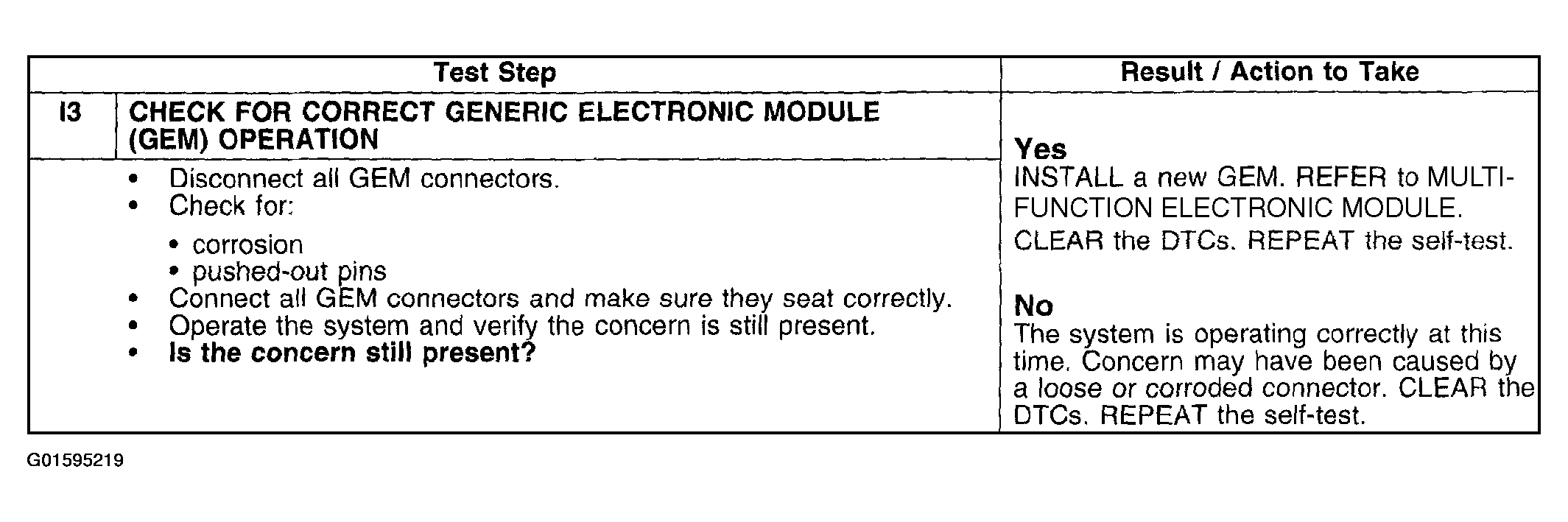

Fig 2: Pinpoint Test I: Illuminated Entry Inoperative When Using Remote Transmitter (Step I3)
G01595219Courtesy of FORD MOTOR CO.
