Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

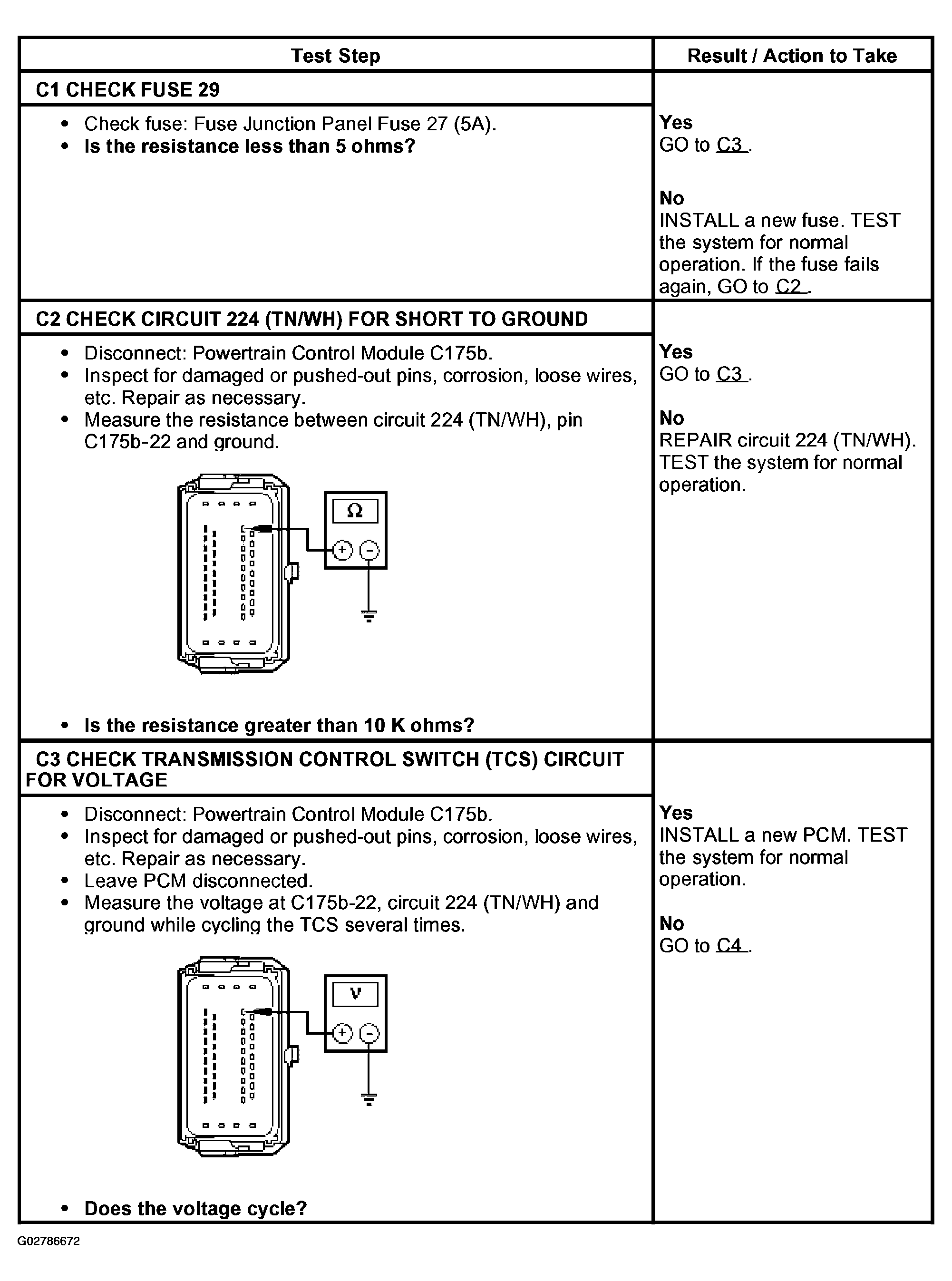

Fig 1: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Steps C1-C3)

Courtesy of FORD MOTOR CO.

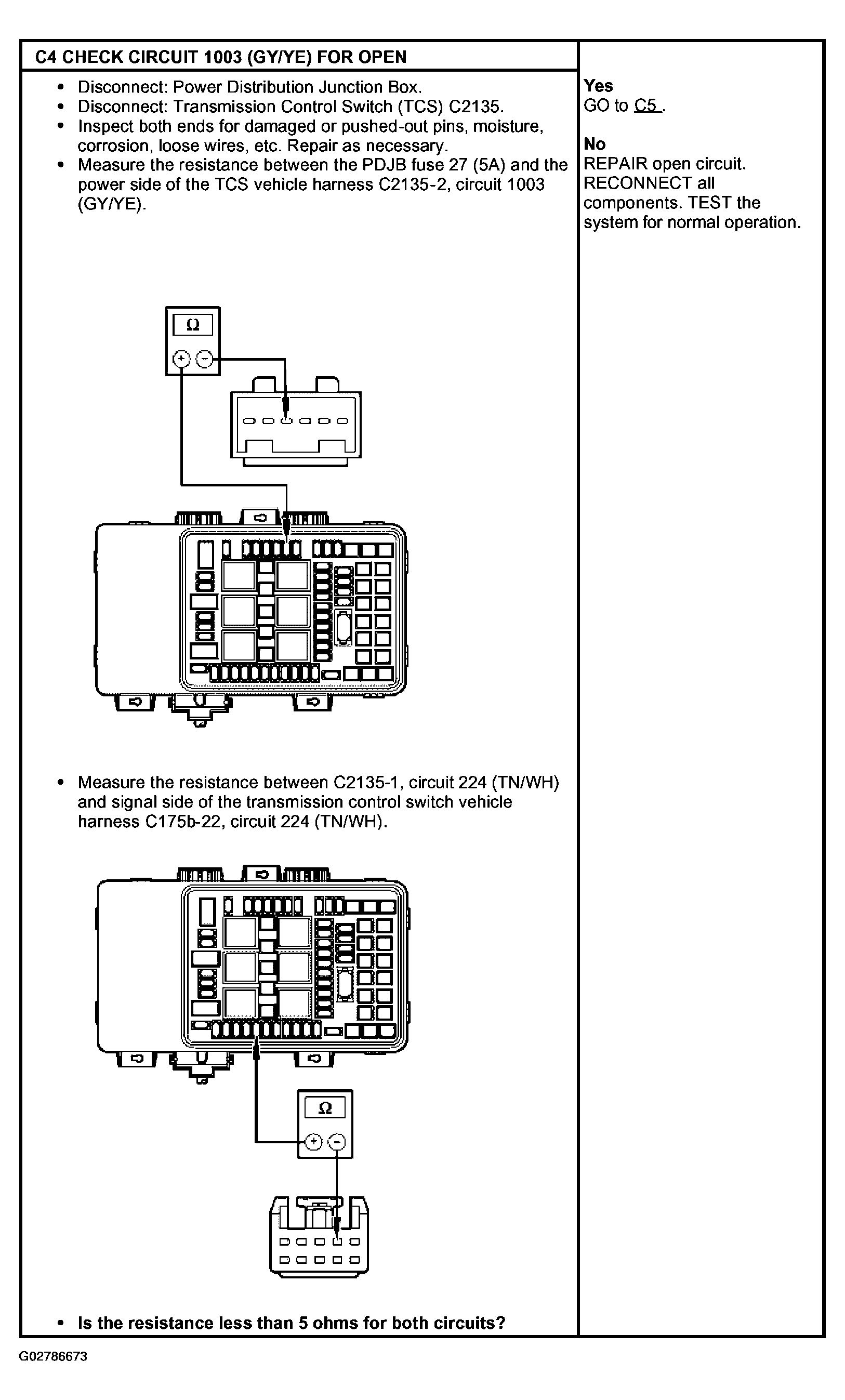

Fig 2: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Step C4)

Courtesy of FORD MOTOR CO.

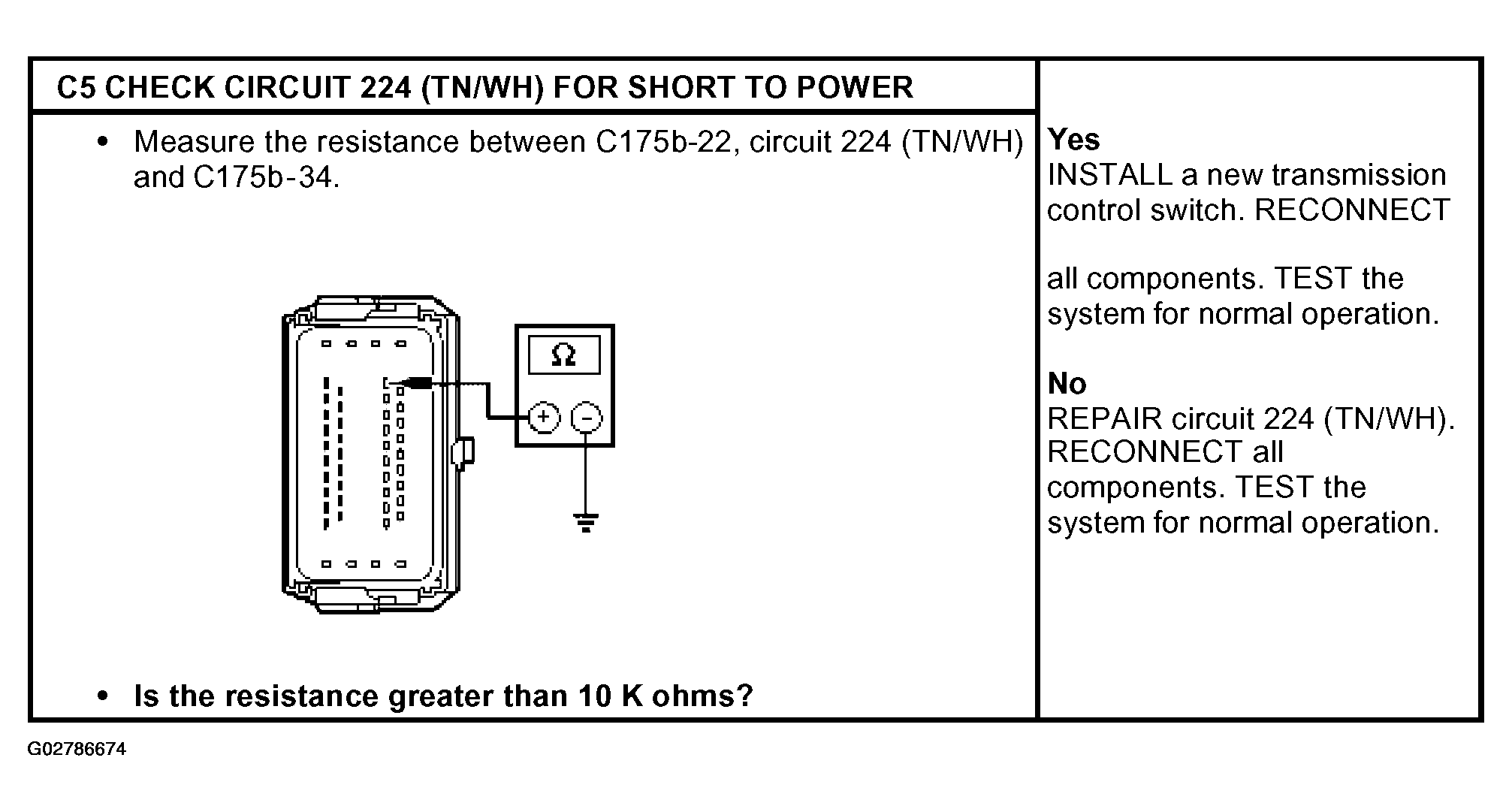

Fig 3: Pinpoint Test C: The Transmission Control Switch (TCS) Is Inoperative (Step C5)

Courtesy of FORD MOTOR CO.
