Pinpoint Test G: The Transmission Control Switch (TCS) Is Inoperative

WARNING: This page is about a different car, the 2004 Lincoln Navigator and 2004 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

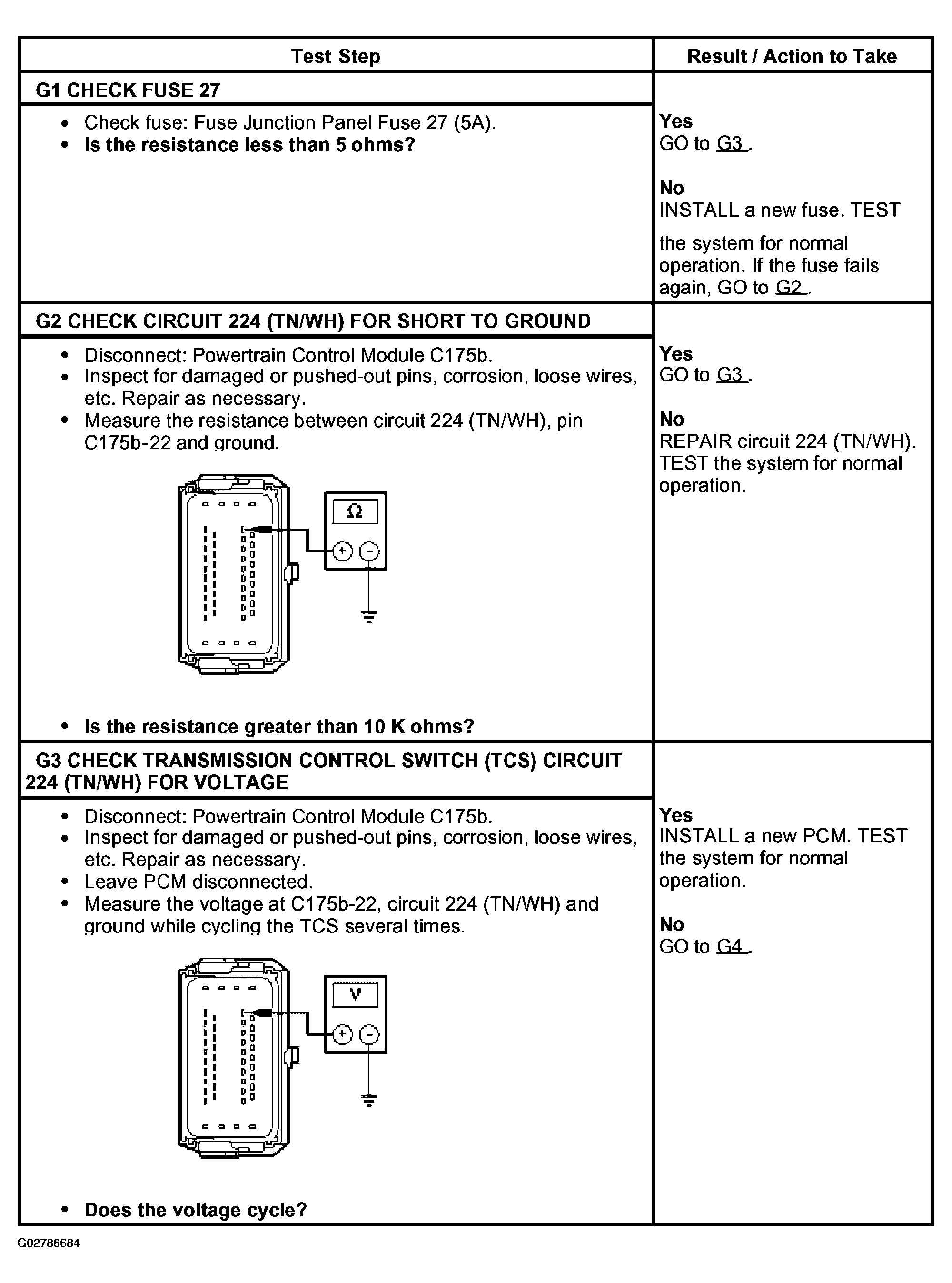

Fig 1: Pinpoint Test G: The Transmission Control Switch (TCS) Is Inoperative (Steps G1-G3)
G02786684Courtesy of FORD MOTOR CO.

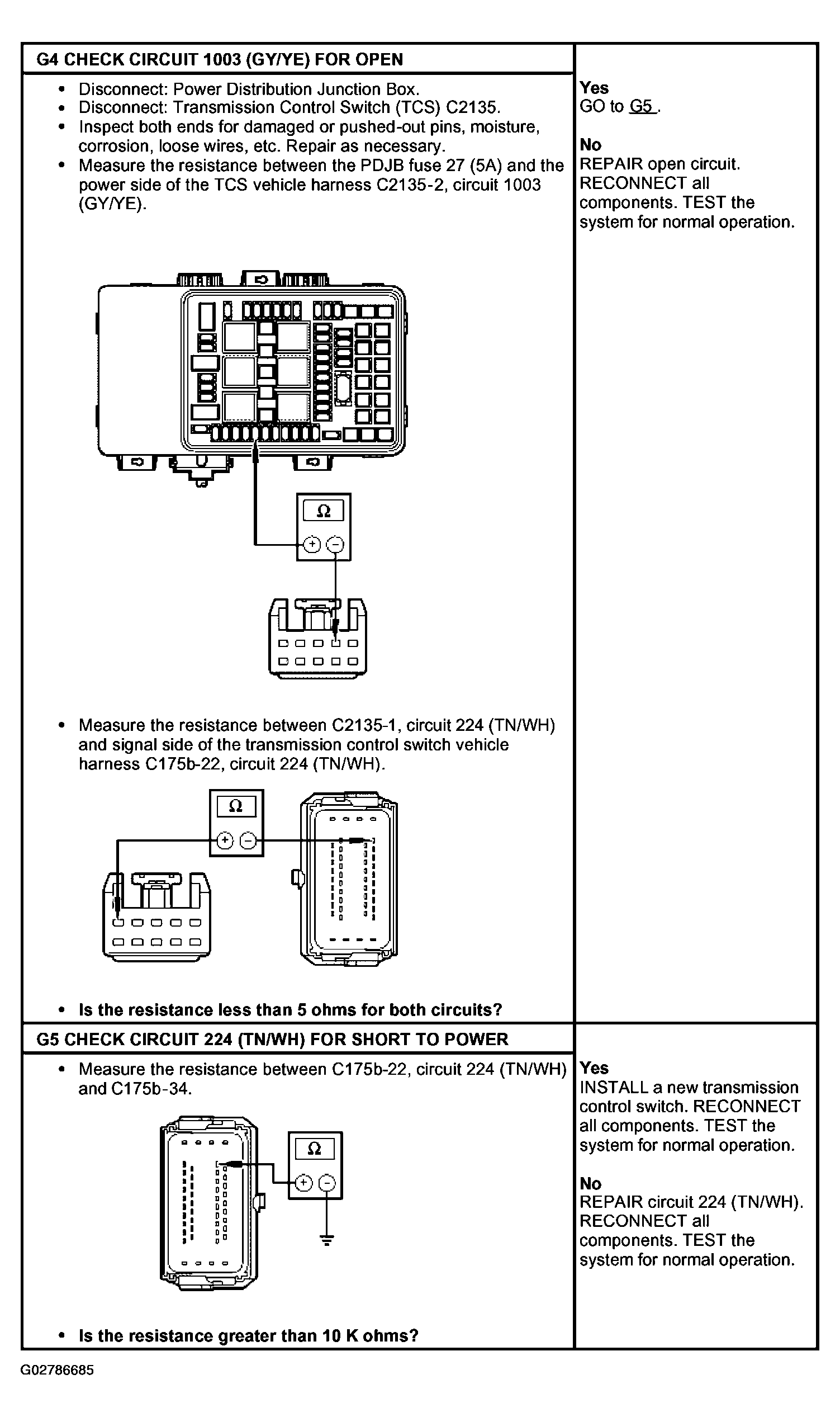

Fig 2: Pinpoint Test G: The Transmission Control Switch (TCS) Is Inoperative (Steps G4-G5)
G02786685Courtesy of FORD MOTOR CO.
