Multifunction Switch, Wiper/Washer Portion
WARNING:
This page is about a different car, the 2003 Lincoln Navigator and 2003 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

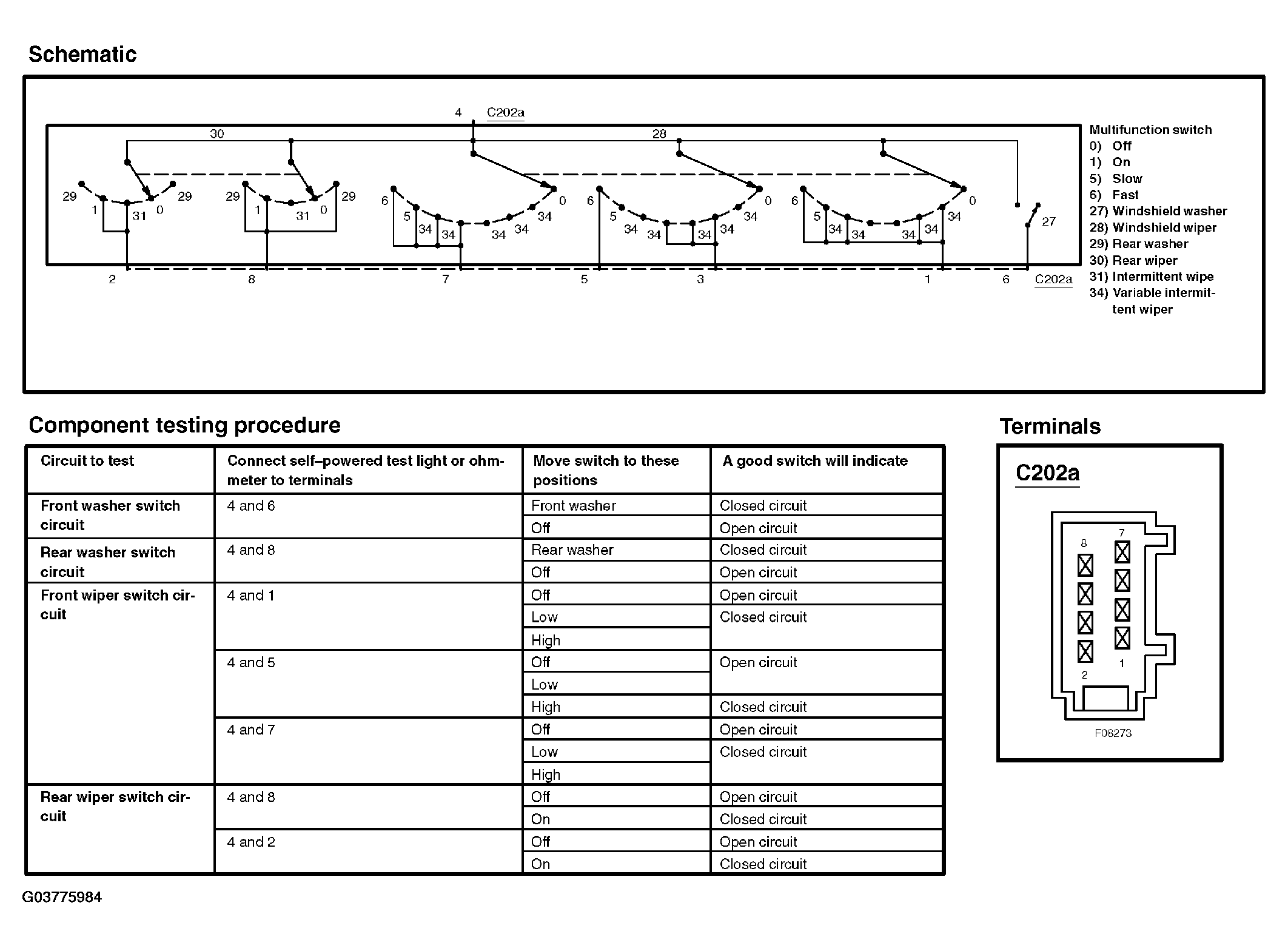

Fig 1: Testing Multifunction Switch - Wiper/Washer Portion (1 Of 2)
Courtesy of FORD MOTOR CO.

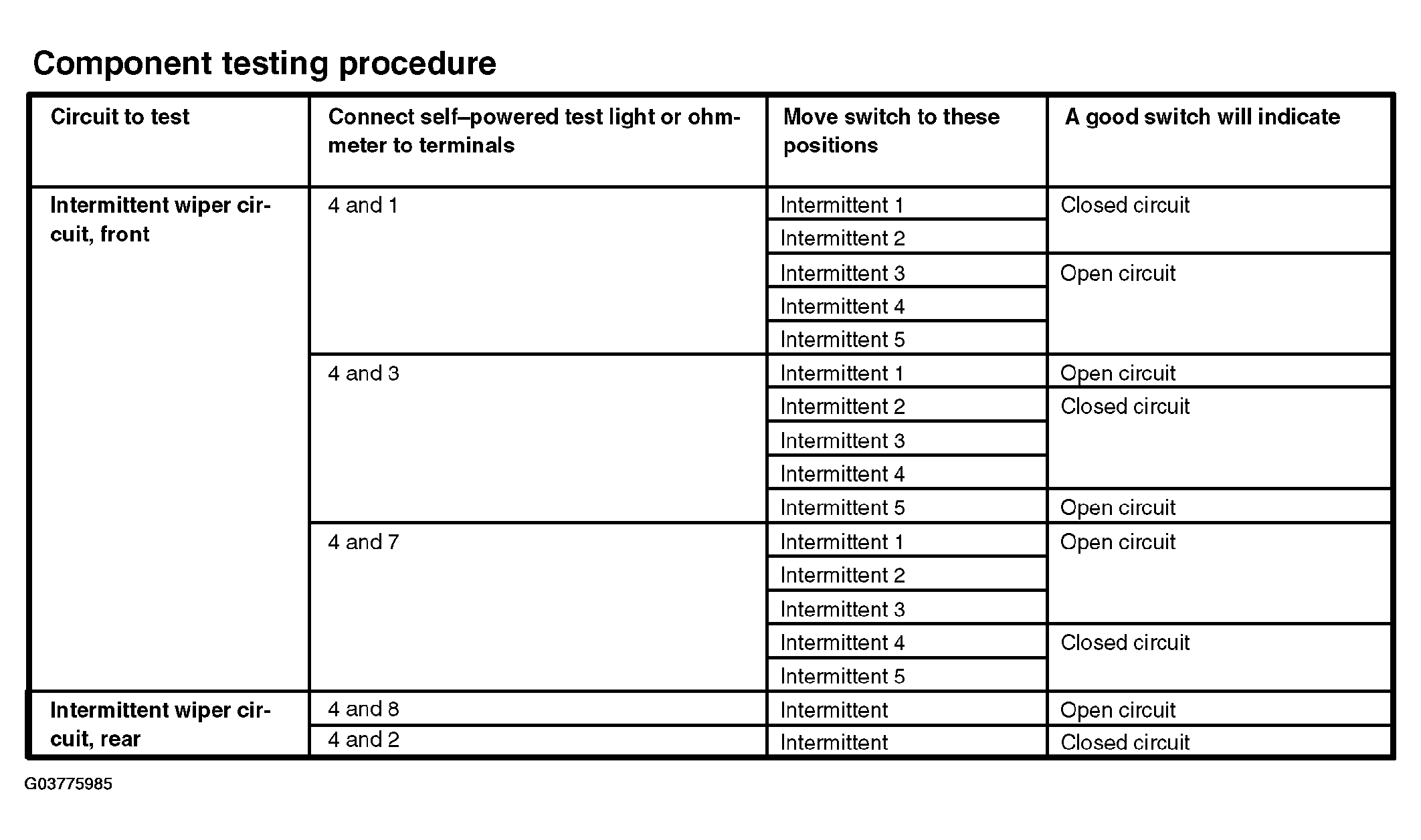

Fig 2: Testing Multifunction Switch Wiper/Washer Portion (2 Of 2)
Courtesy of FORD MOTOR CO.
