Inspection and Verification

  1. Verify the customer concern.
  2. Visually inspect for obvious signs of mechanical and electrical damage.
  3. If the inspection reveals an obvious concern is repairable, correct the concern before continuing with inspection and verification.

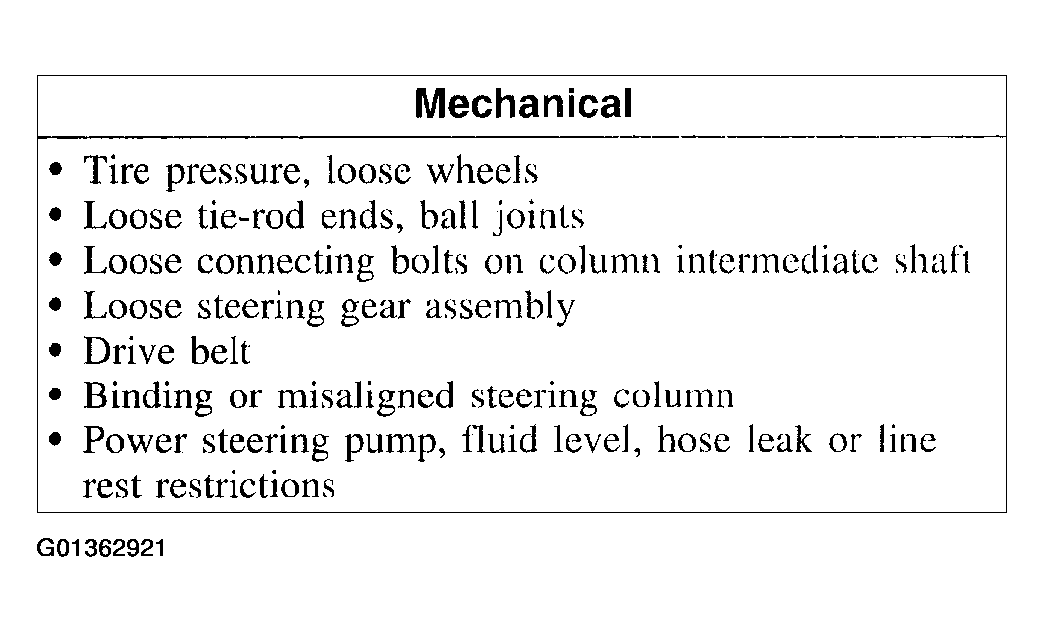

Fig 1: Visual Inspection Chart
G01362921Courtesy of FORD MOTOR CO.
