Symptom Chart

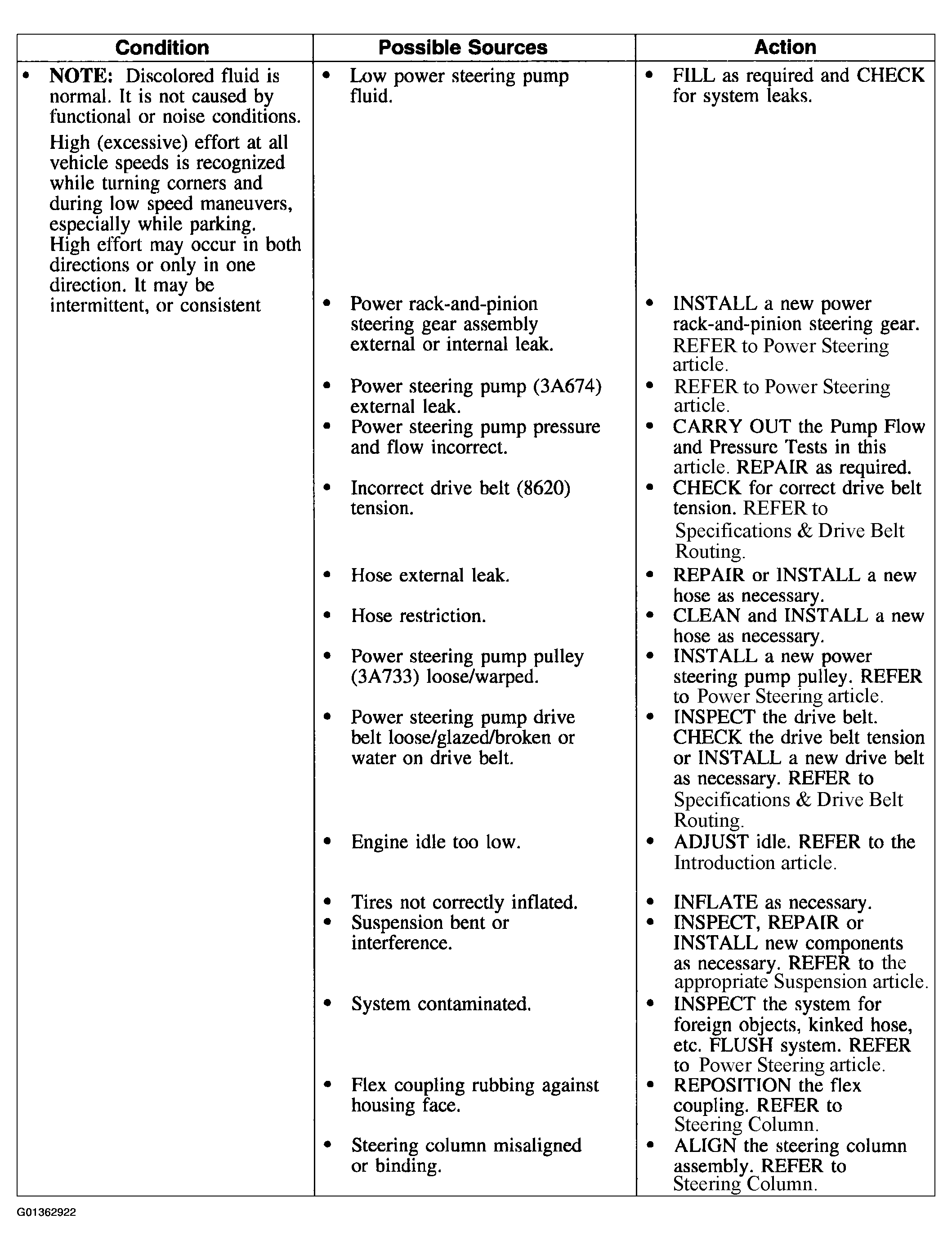

Fig 1: Symptom Chart (1 Of 12)
G01362922Courtesy of FORD MOTOR CO.

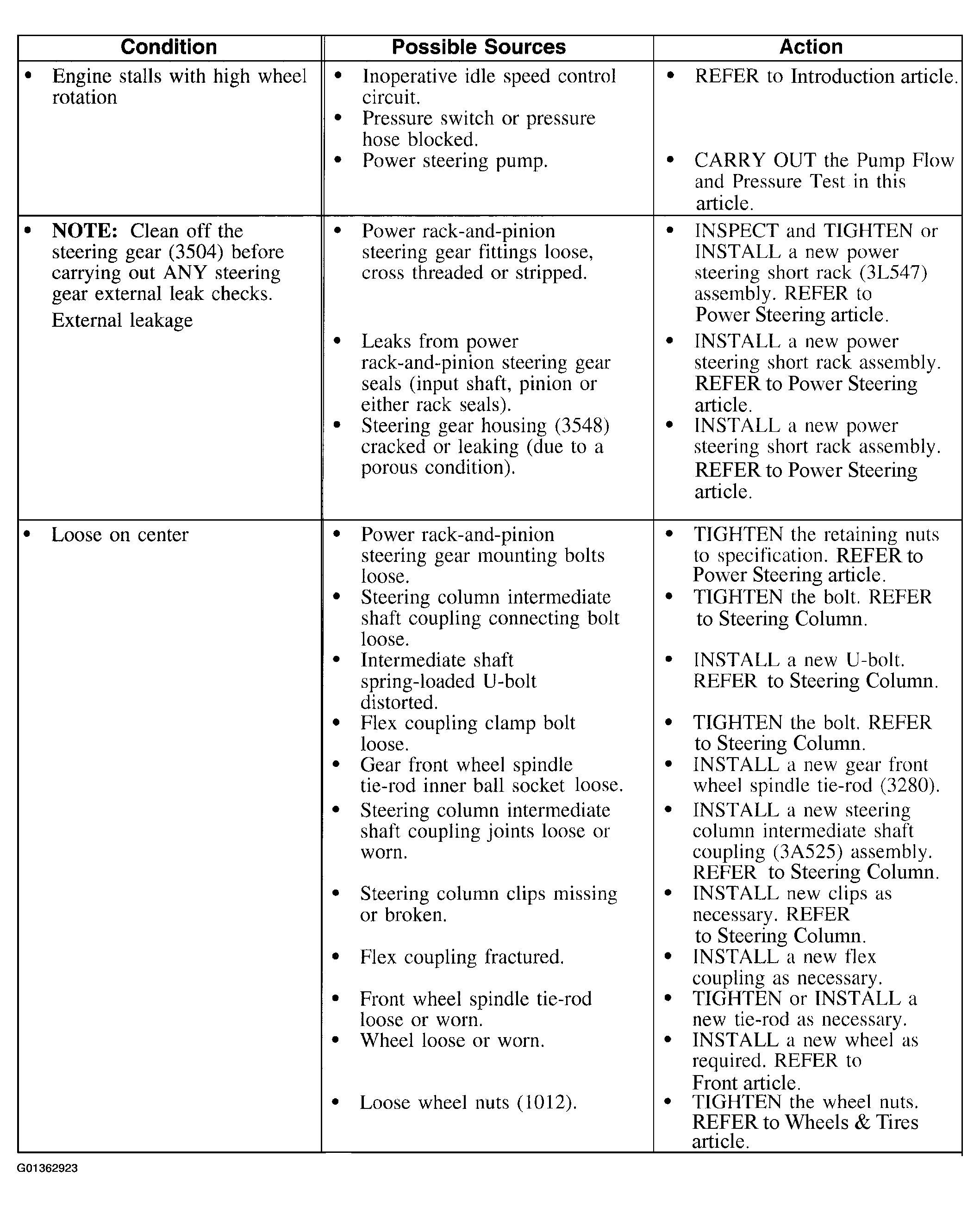

Fig 2: Symptom Chart (2 Of 12)
G01362923Courtesy of FORD MOTOR CO.

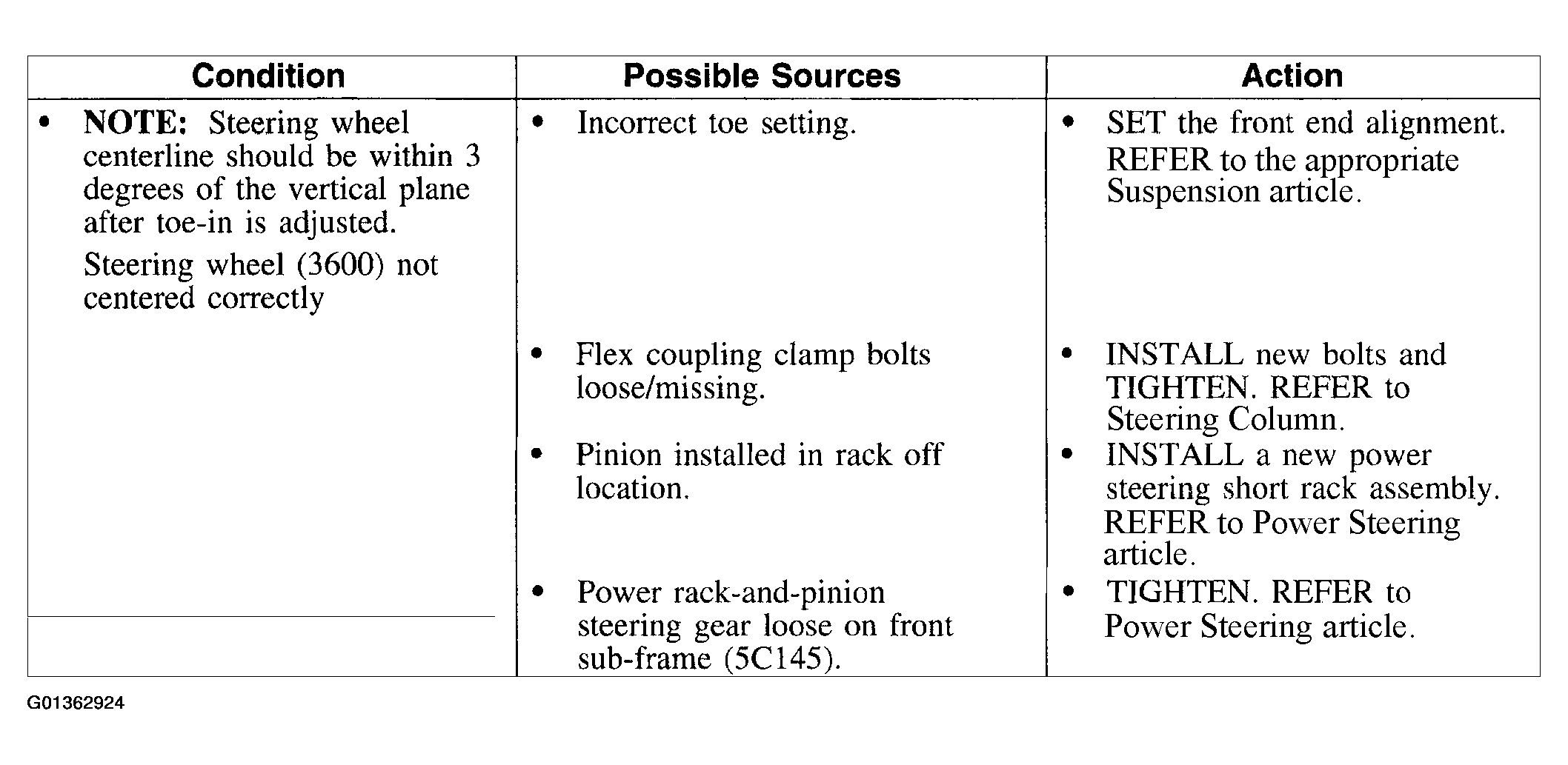

Fig 3: Symptom Chart (3 Of 12)
G01362924Courtesy of FORD MOTOR CO.

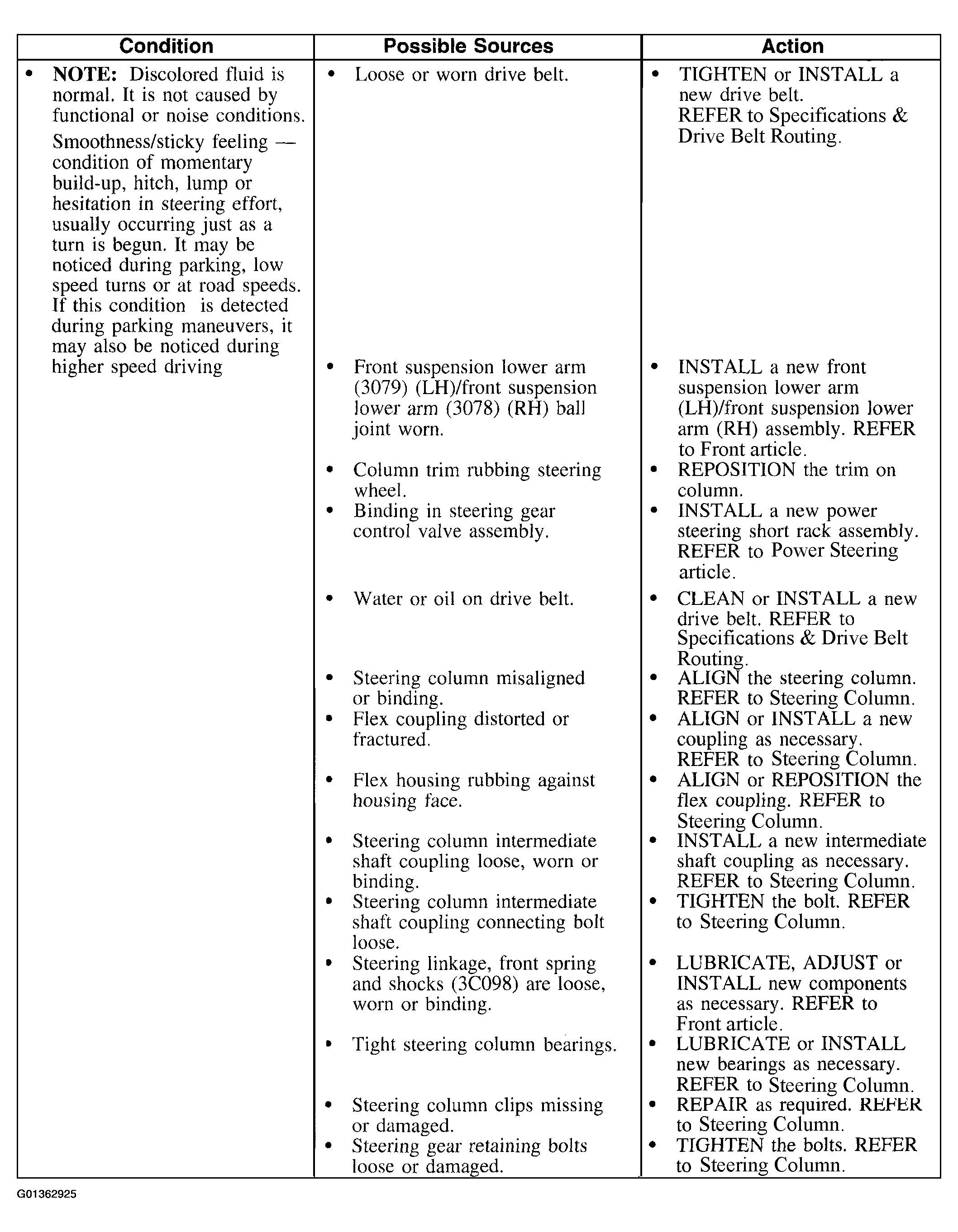

Fig 4: Symptom Chart (4 Of 12)
G01362925Courtesy of FORD MOTOR CO.

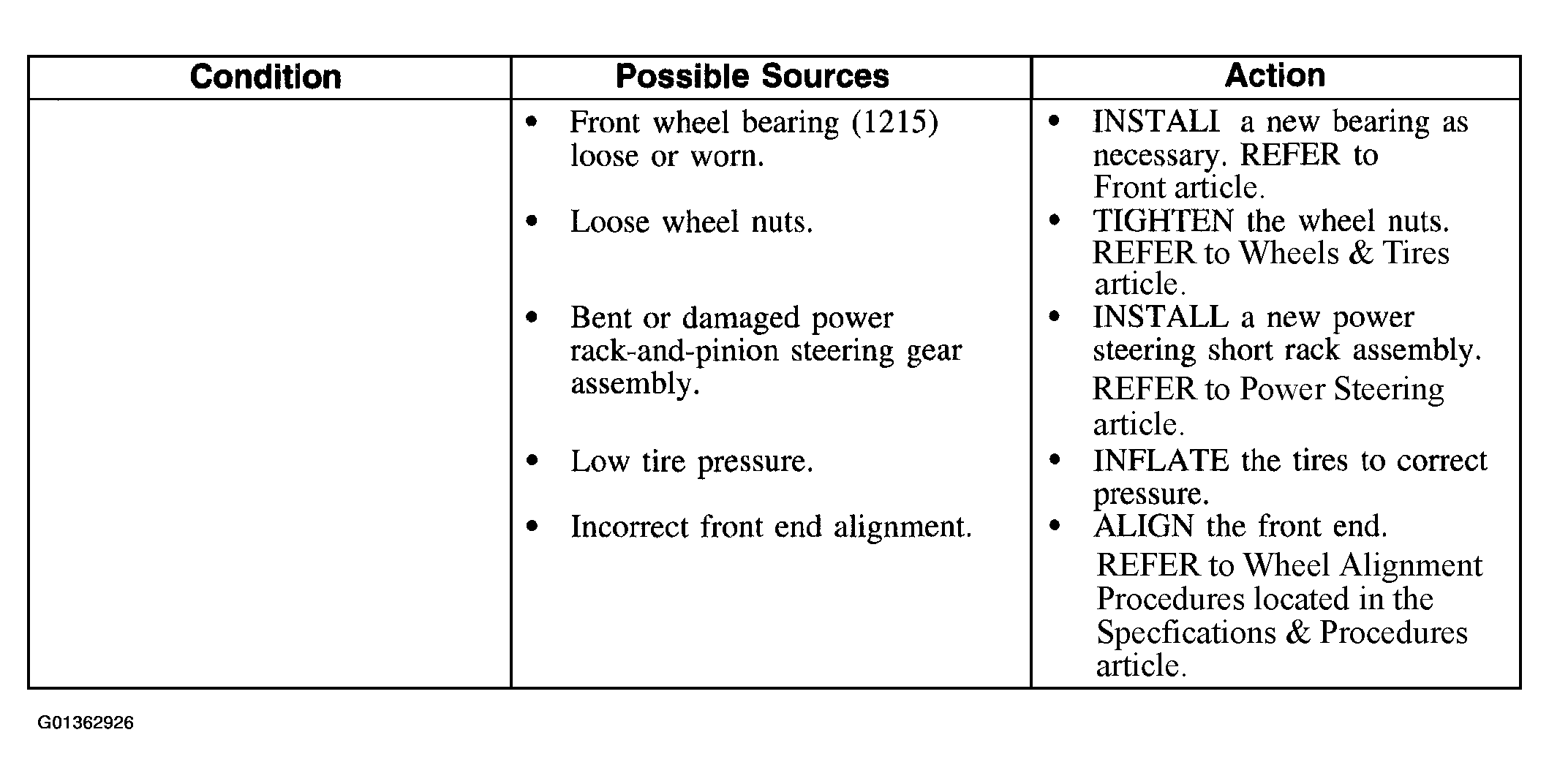

Fig 5: Symptom Chart (5 Of 12)
G01362926Courtesy of FORD MOTOR CO.

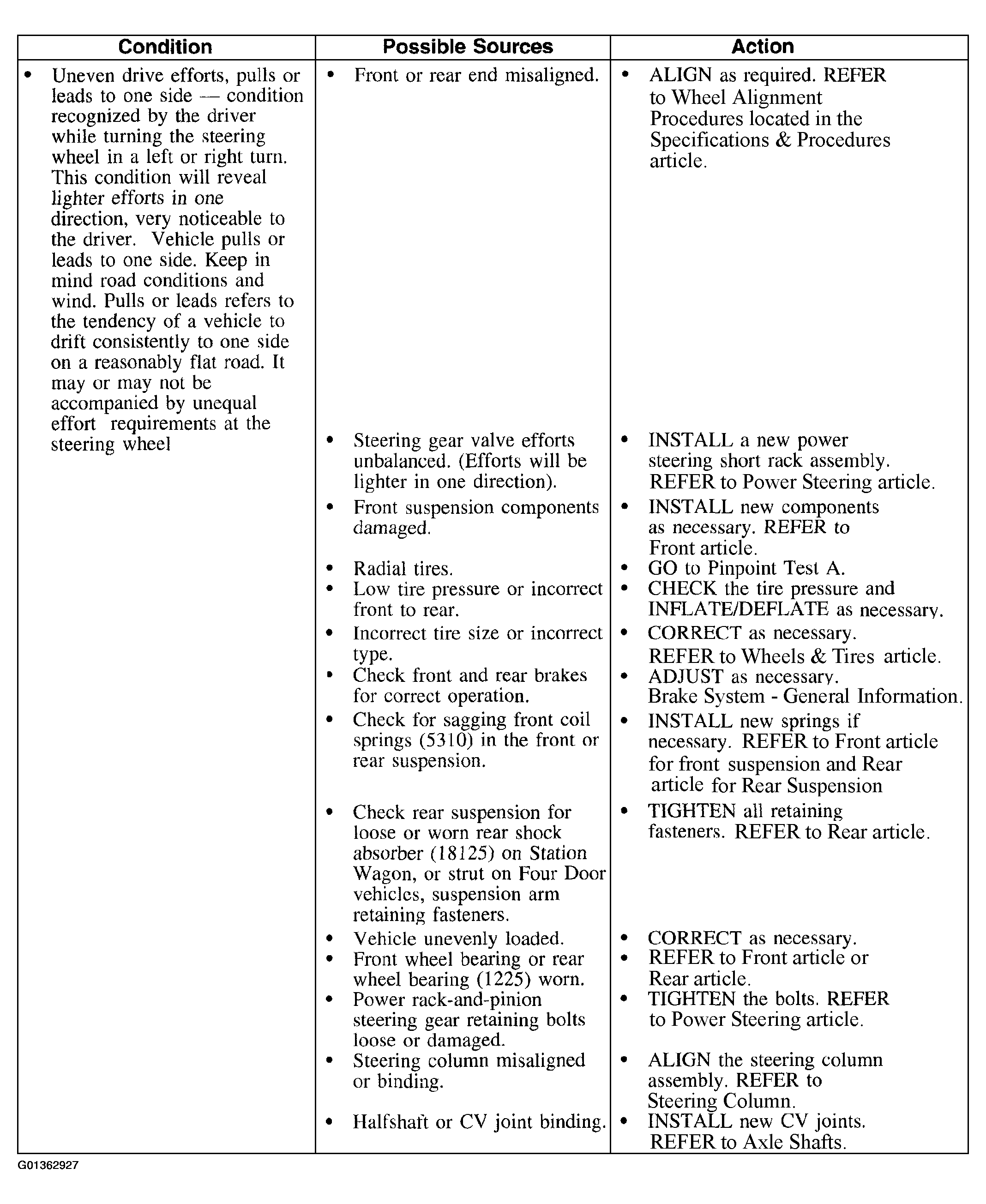

Fig 6: Symptom Chart (6 Of 12)
G01362927Courtesy of FORD MOTOR CO.

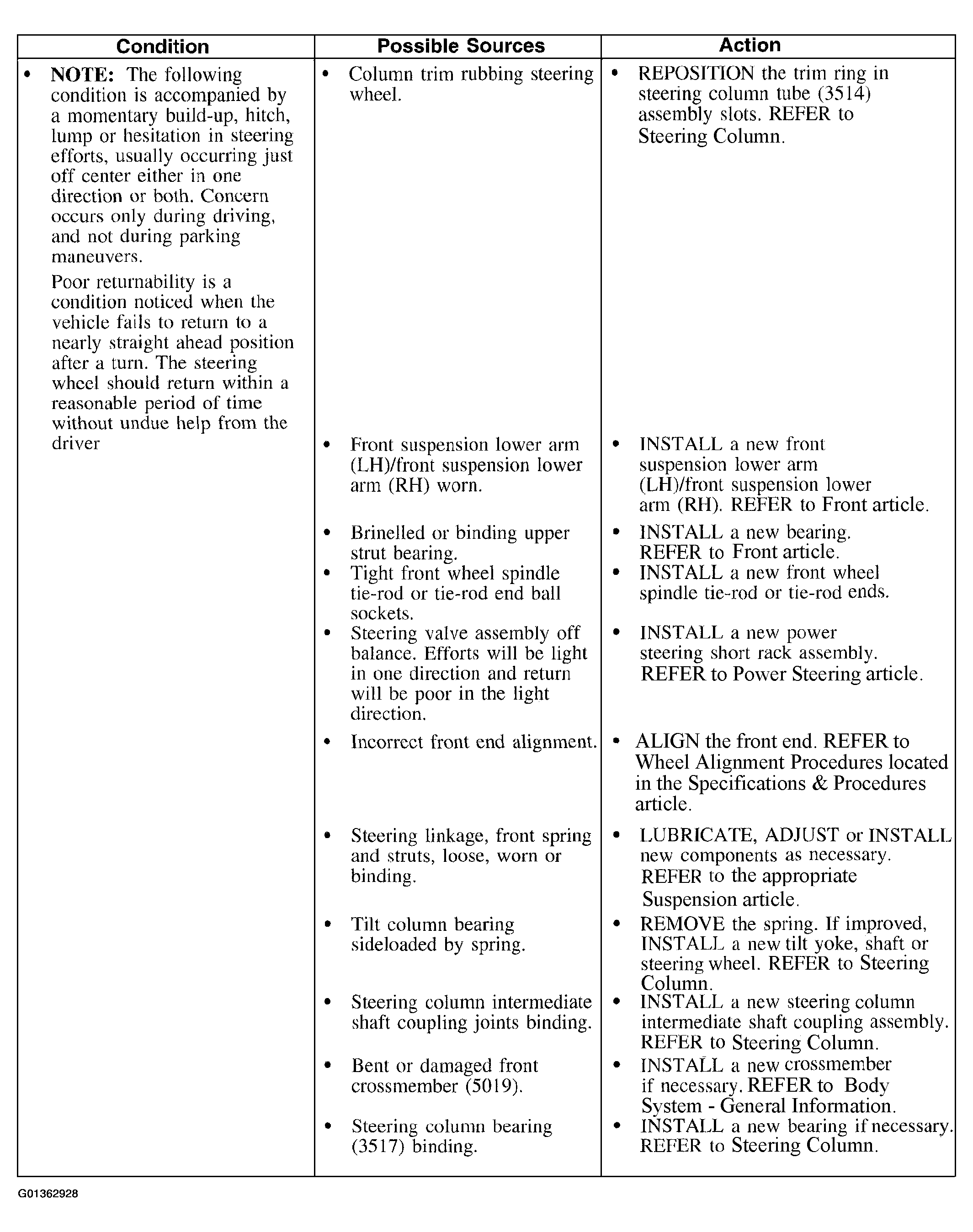

Fig 7: Symptom Chart (7 Of 12)
G01362928Courtesy of FORD MOTOR CO.
Fig 8: Symptom Chart (8 Of 12)
G01362929Courtesy of FORD MOTOR CO.

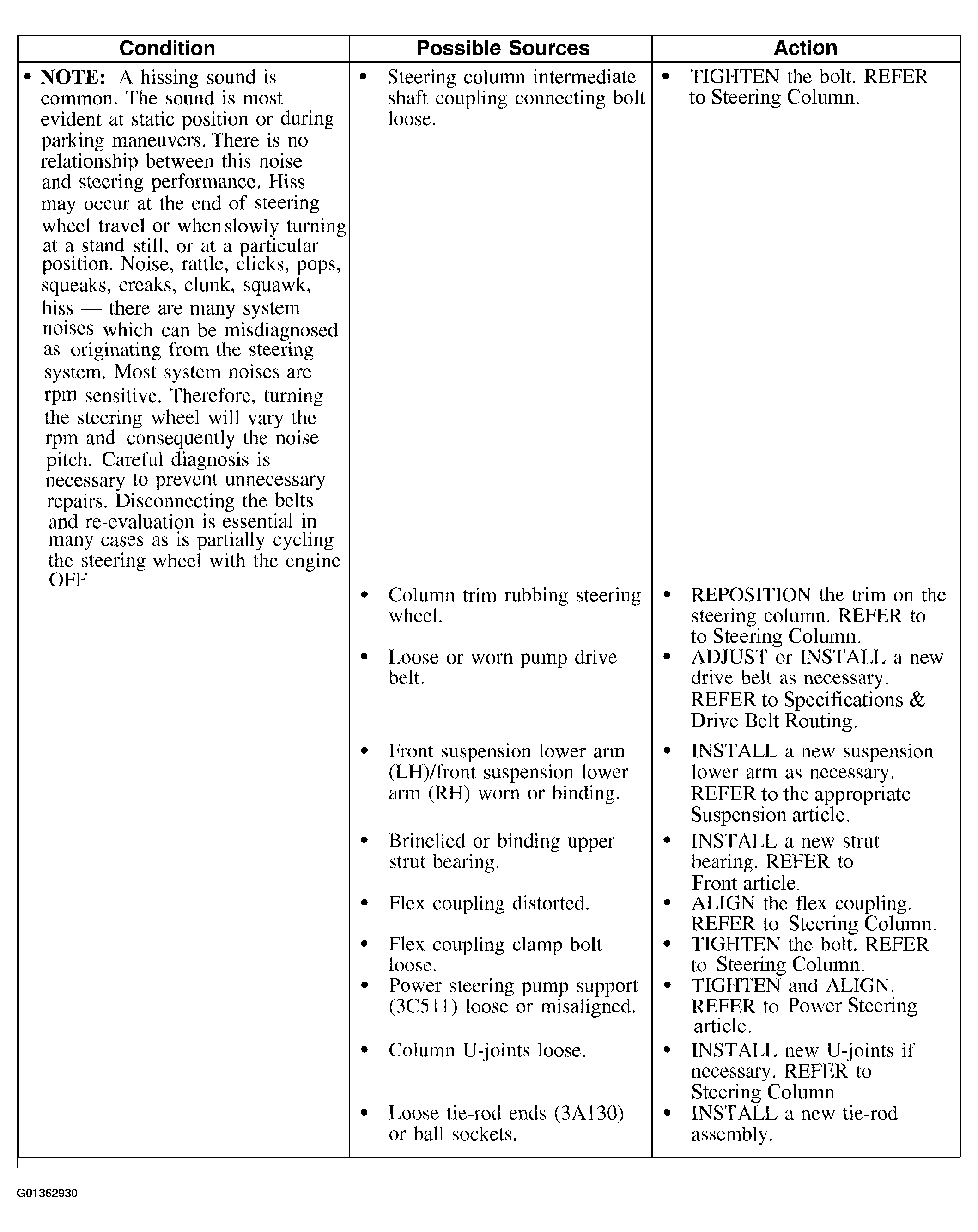

Fig 9: Symptom Chart (9 Of 12)
G01362930Courtesy of FORD MOTOR CO.

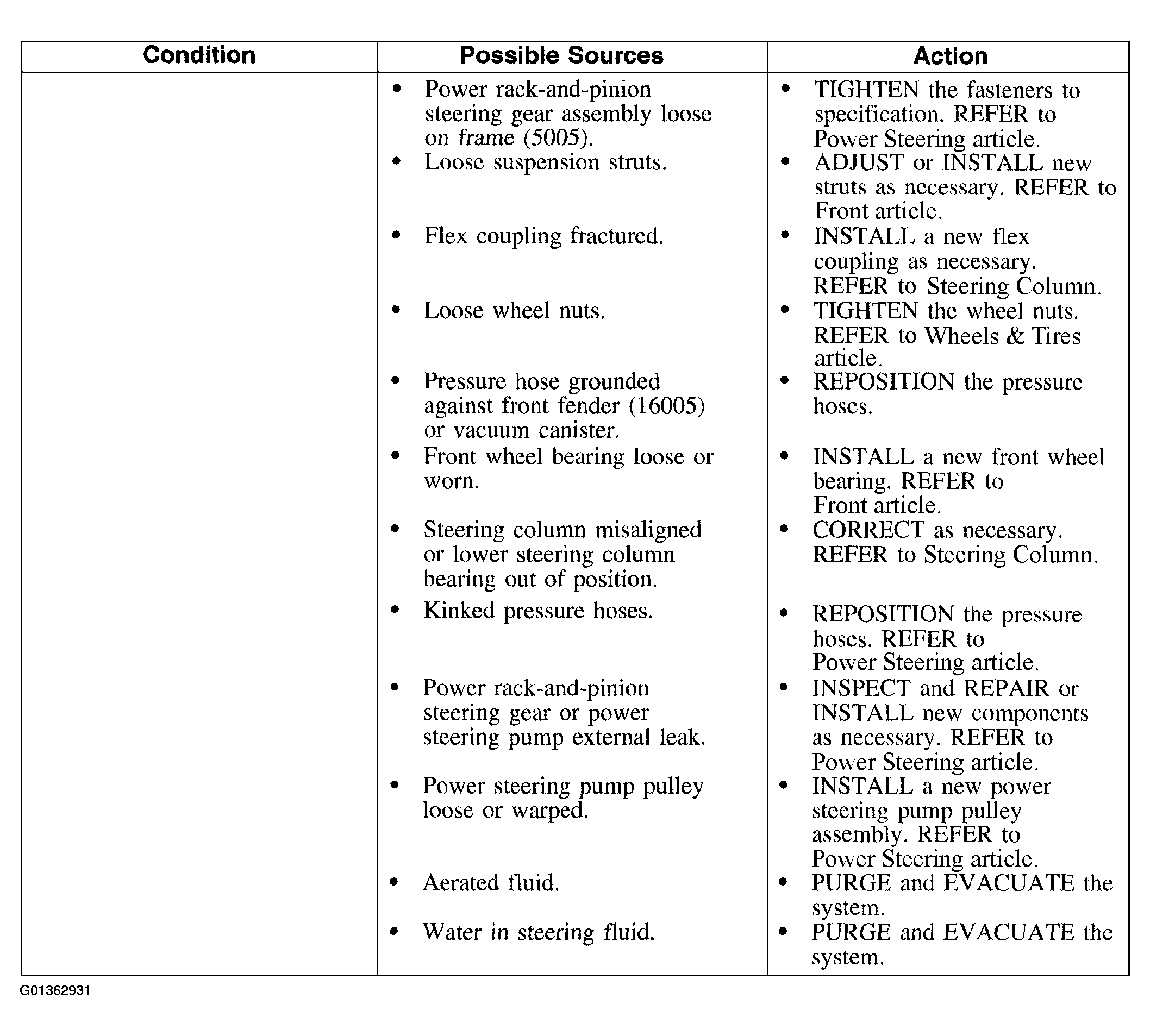

Fig 10: Symptom Chart (10 Of 12)
G01362931Courtesy of FORD MOTOR CO.

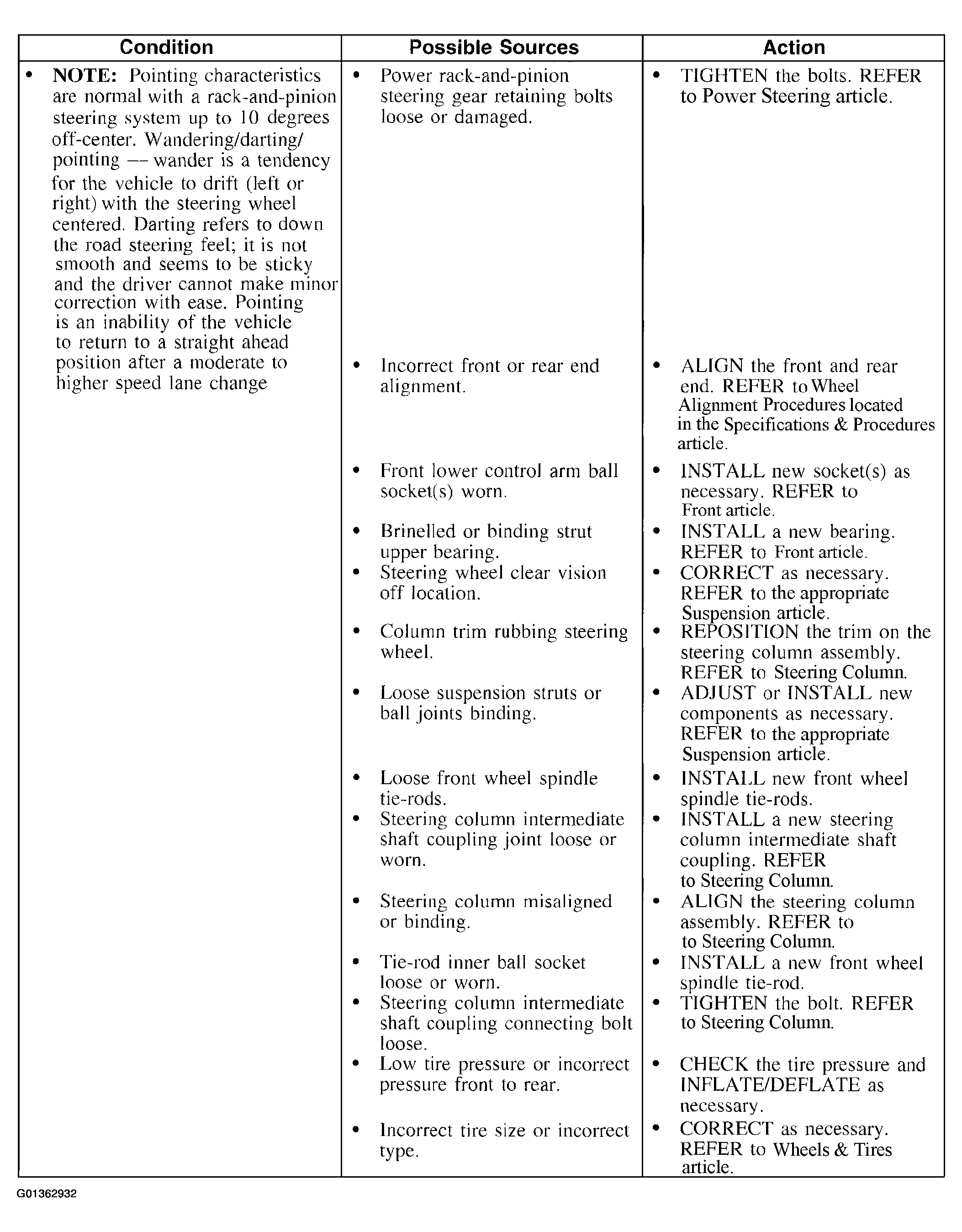

Fig 11: Symptom Chart (11 Of 12)
G01362932Courtesy of FORD MOTOR CO.

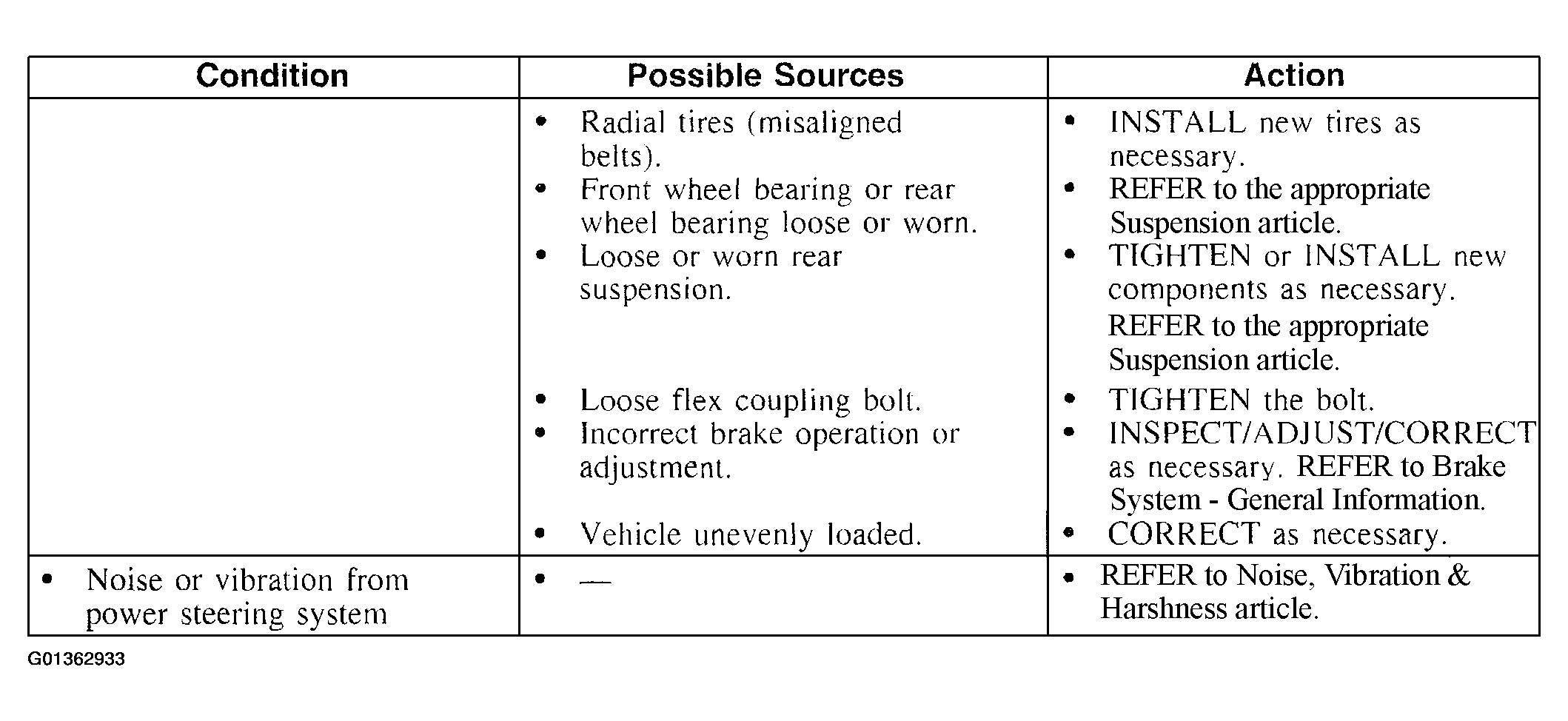

Fig 12: Symptom Chart (12 Of 12)
G01362933Courtesy of FORD MOTOR CO.
