Rear (Wagon)

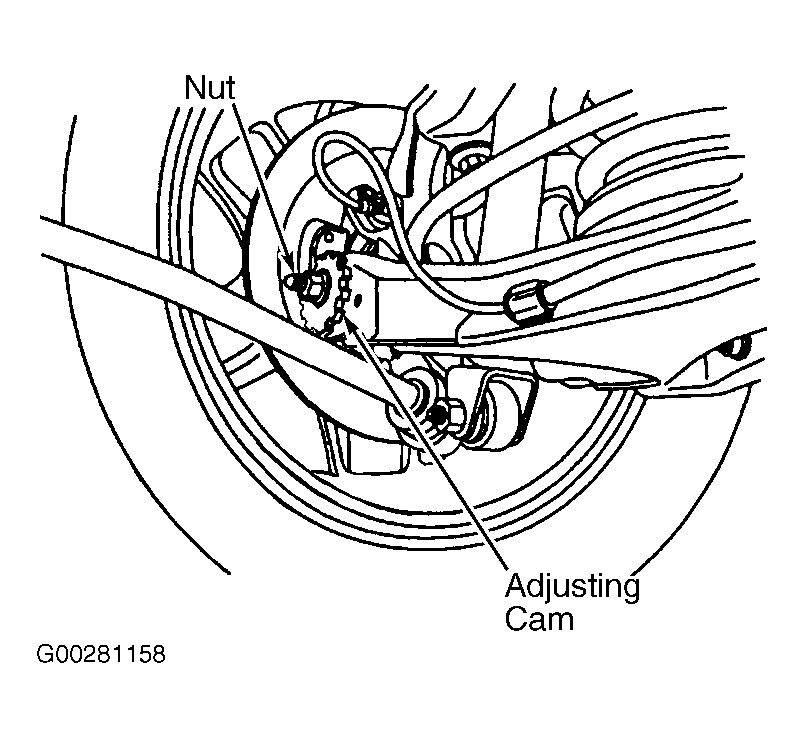

Loosen the nut. See Fig 1 . Rotate the adjusting cam to achieve the specified toe setting. See WHEEL ALIGNMENT SPECIFICATIONS . Make sure that the toe settings are not disturbed while tightening the nut. While holding the adjusting cam, tighten the nut to specification. See TORQUE SPECIFICATIONS .
