Pinpoint Test B: Flash Code 2 - Brake Pedal Position Switch Or Circuit Failure

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

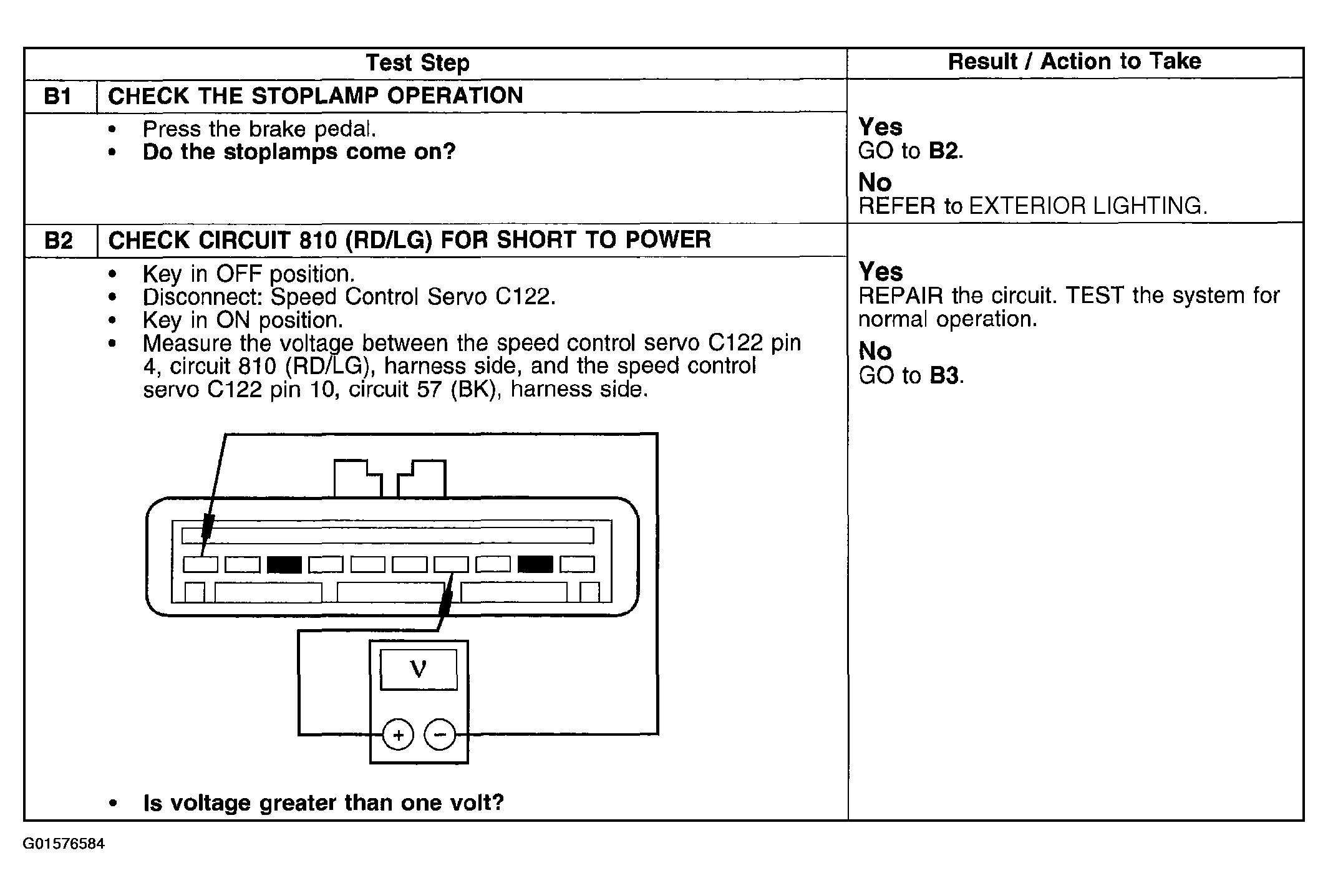

Fig 1: Pinpoint Test B: Flash Code 2 - Brake Pedal Position Switch Or Circuit Failure (Steps B1-B2)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test B: Flash Code 2 - Brake Pedal Position Switch Or Circuit Failure (Steps B3)

Courtesy of FORD MOTOR CO.
