Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Speed Control Inoperative

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Speed Control Inoperative (Steps D1)

Courtesy of FORD MOTOR CO.

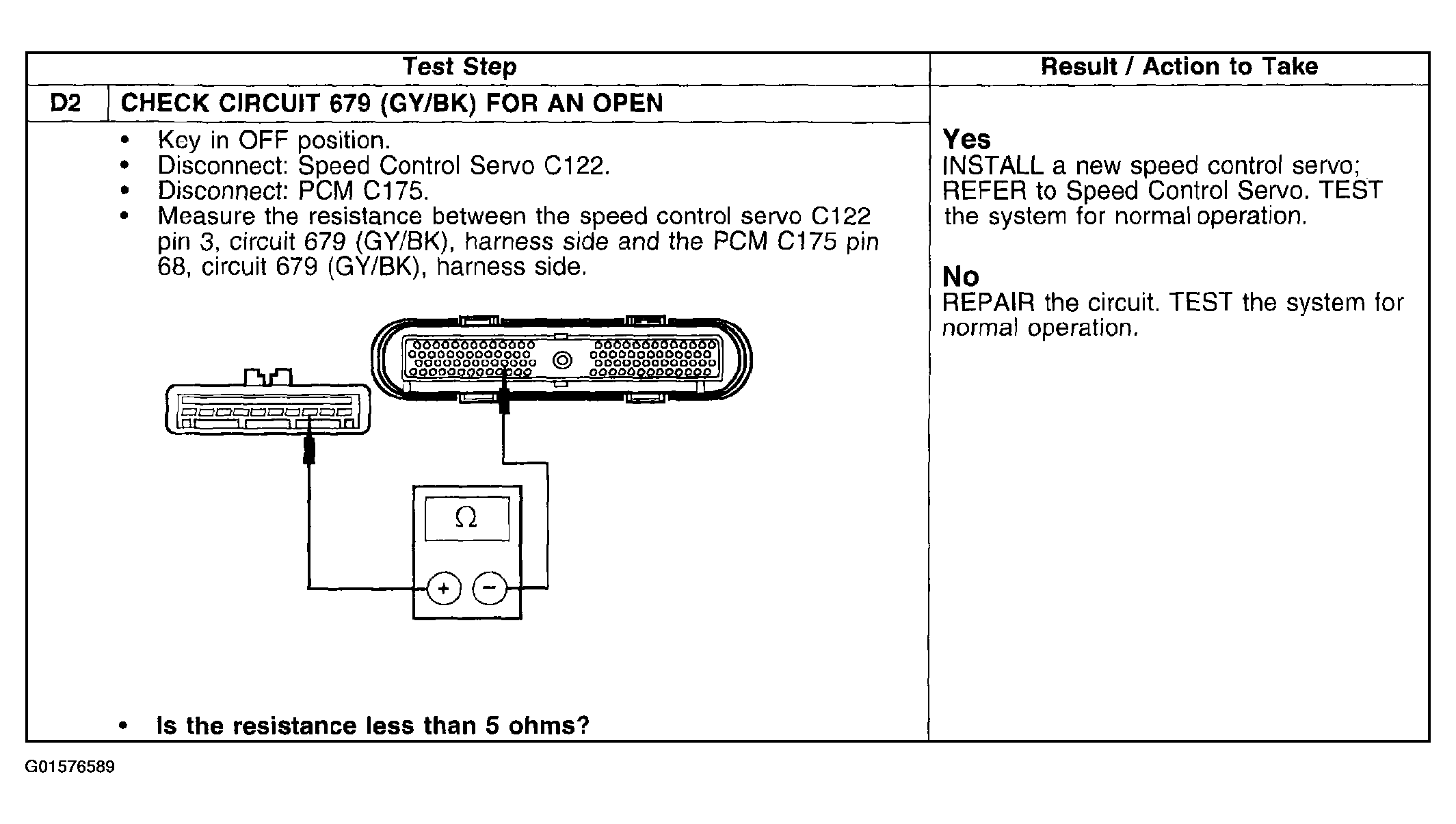

Fig 2: Pinpoint Test D: Flash Code 1 - Dynamic Pull Occurs At Throttle And Speed Control Inoperative (Steps D2)

Courtesy of FORD MOTOR CO.
