Removal and Installation

WARNING: This page is about a different car, the 2003 Mercury Sable and 2003 Ford Taurus. However, it is still accessible from the selected car via links, so may be relevant.

Remove the integrated control panel (18C858). For additional information, refer to CLIMATE CONTROL ASSEMBLY .
Remove the knob (18519).

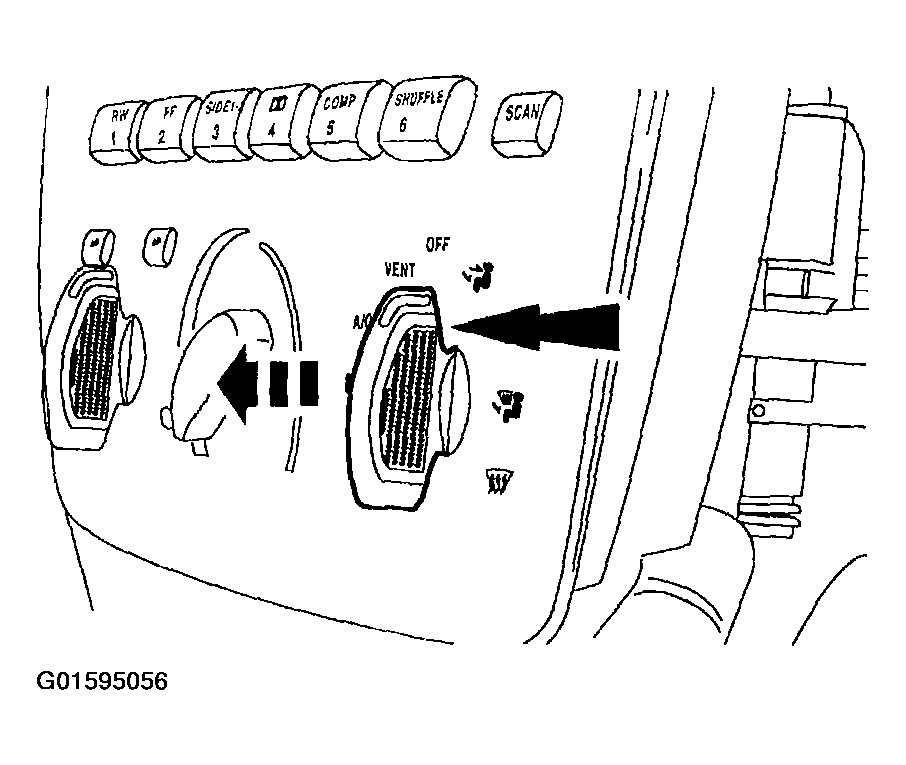

Fig 1: Locating Knob (18519)
Courtesy of FORD MOTOR CO.
Disengage the retaining tabs. Remove the function selector switch (19B888).

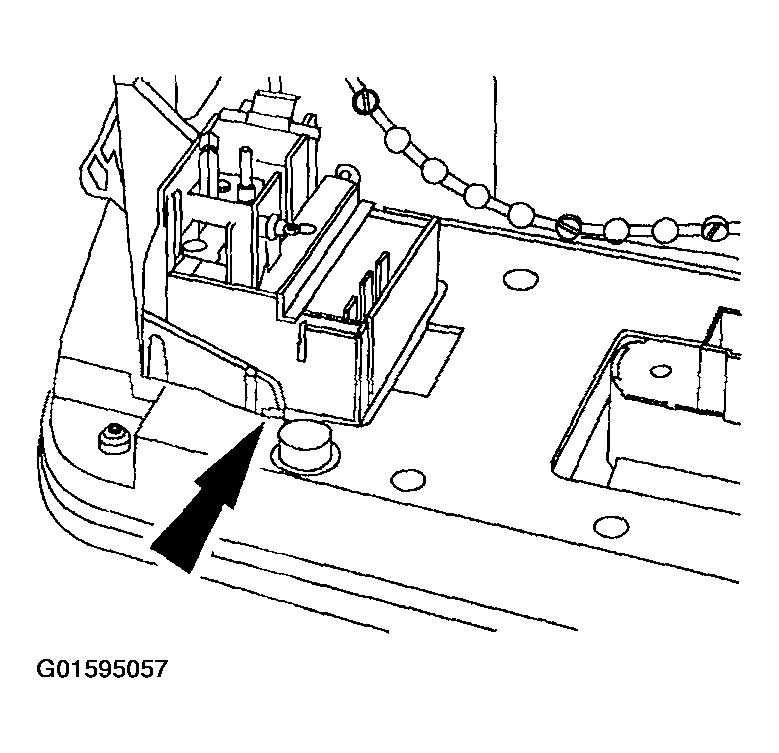

Fig 2: Locating Function Selector Switch (19B888)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
