Checking Procedure

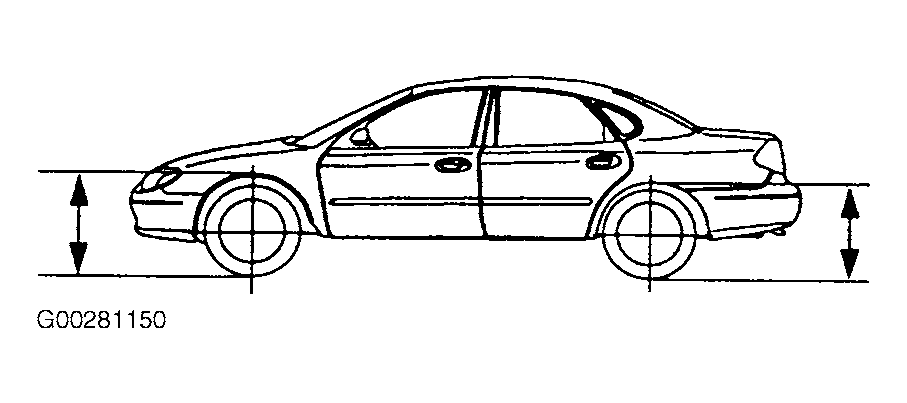

Ride height is checked by measuring distance between lip of fender(s) and ground. See Fig 1 . Vehicle must be in level, static ground position with full fluids , and fuel tank at least half full. See RIDE HEIGHT SPECIFICATIONS table. If ride height does not meet specification, and no unusual load is present, check for damaged components or non-standard replacement suspension components.
RIDE HEIGHT SPECIFICATIONS
| Application | (1) In. (mm) | |||
|---|---|---|---|---|
| Front | ||||
| Sedan | 27.69-28.08 (703.3-723.3) | |||
| Wagon | 27.57-28.36 (700.4-720.4) | |||
| Rear | ||||
| Sedan | 27.02-27.81 (686.3-706.3) | |||
| Wagon | 27.28-28.06 (692.8-712.8) | |||
|
||||
