Pump Shaft

    NOTE: Inspect the pump drive shaft in the area that the bearings ride. If worn, install a new shaft and main control.

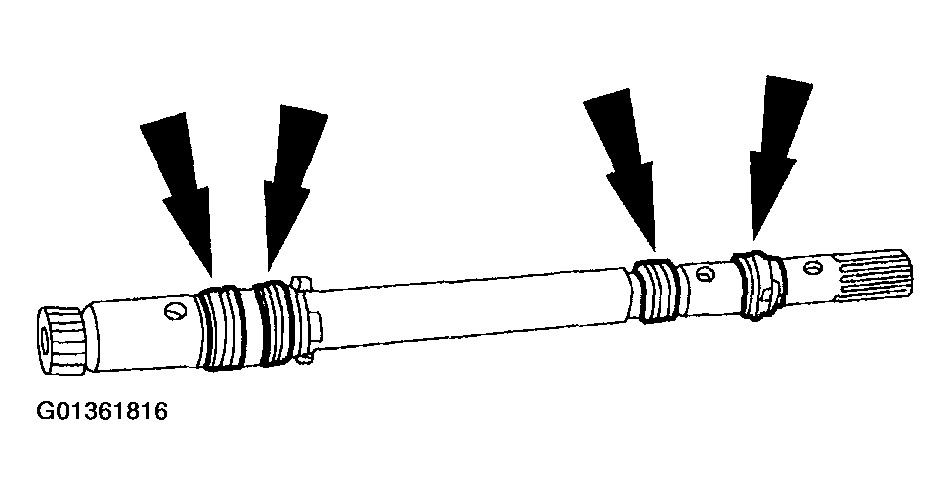

    Fig 1: Removing Teflon® Seals
    G01361816Courtesy of FORD MOTOR CO.
  1. Remove the Teflon® seals and inspect the shaft.
    2. NOTE: Make sure that the seals are installed correctly.
    Fig 2: Installing Seals On Pump Shaft
    G01361817Courtesy of FORD MOTOR CO.
  2. Install 4 new seals on the pump shaft.
