Digital Transmission Range (TR) Sensor: Installation

Verify that the shift selector lever is in NEUTRAL.
Install the digital TR sensor and loosely install the bolts.

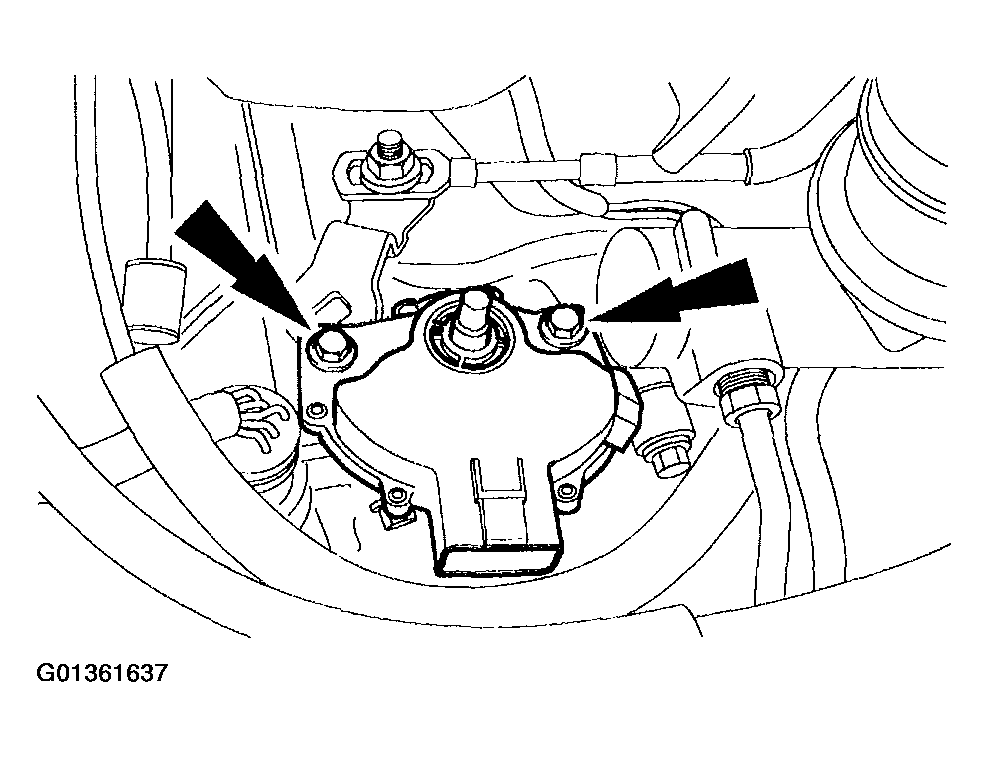

Fig 1: Installing Digital TR Sensor And Loosely Installing Bolts
Courtesy of FORD MOTOR CO.
Using the special tool align the digital TR sensor and tighten the bolts.

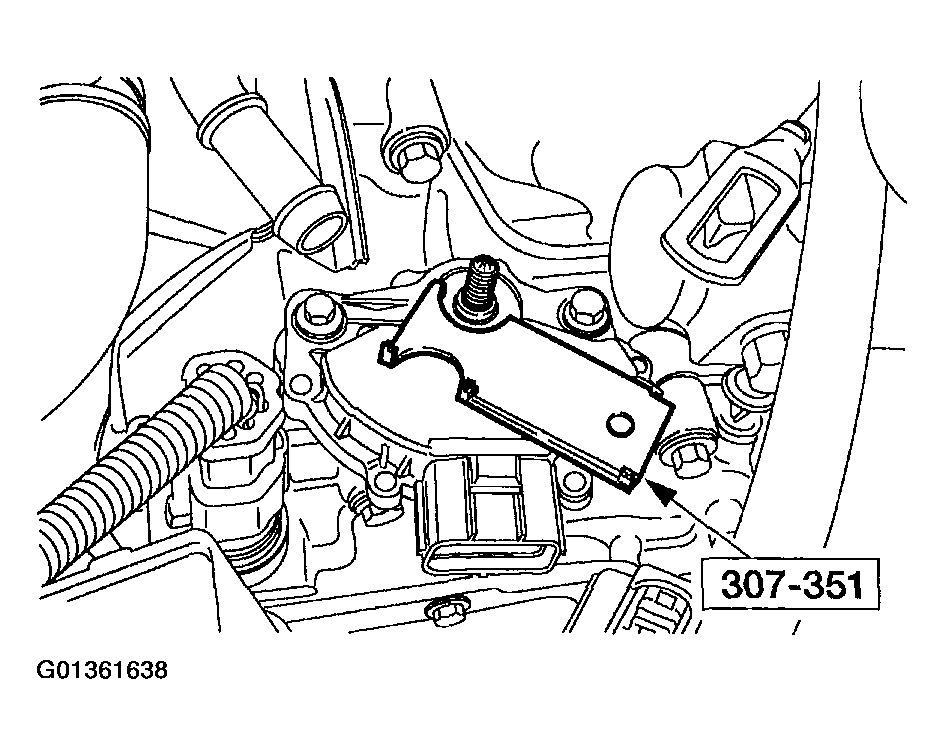

Fig 2: Using Special Tool To Align Digital TR Sensor And Tighten Bolts
Courtesy of FORD MOTOR CO.
Connect the connector.

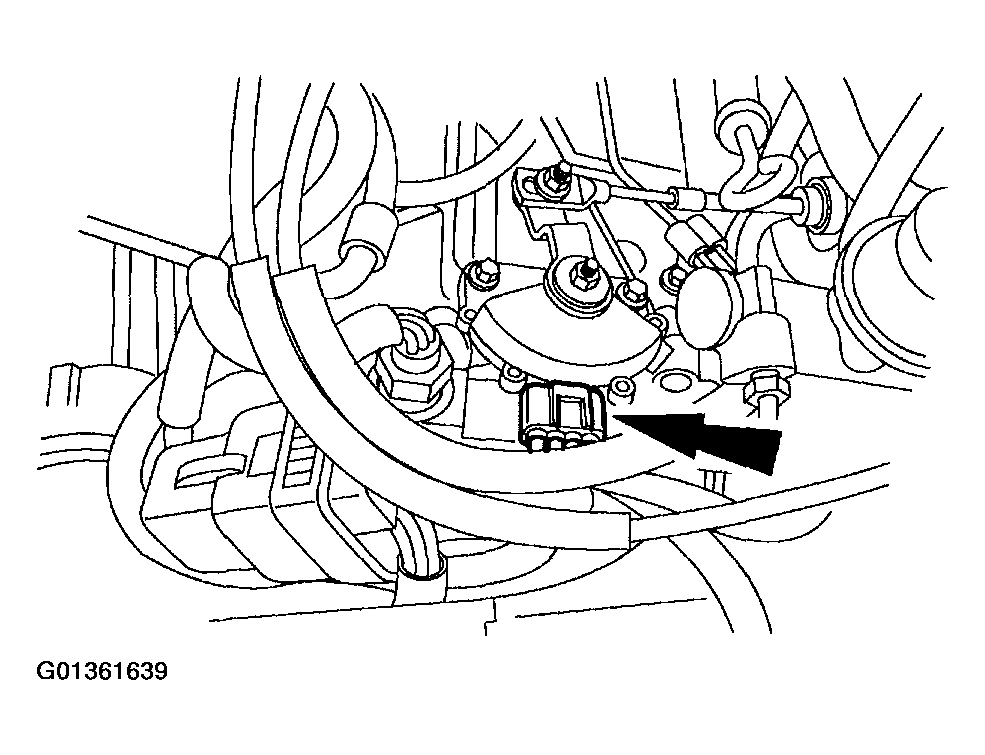

Fig 3: Connecting Connector
Courtesy of FORD MOTOR CO.
Install the manual control lever cable and nut.
1. Install the cable into the bracket.
2. Tighten the nut.

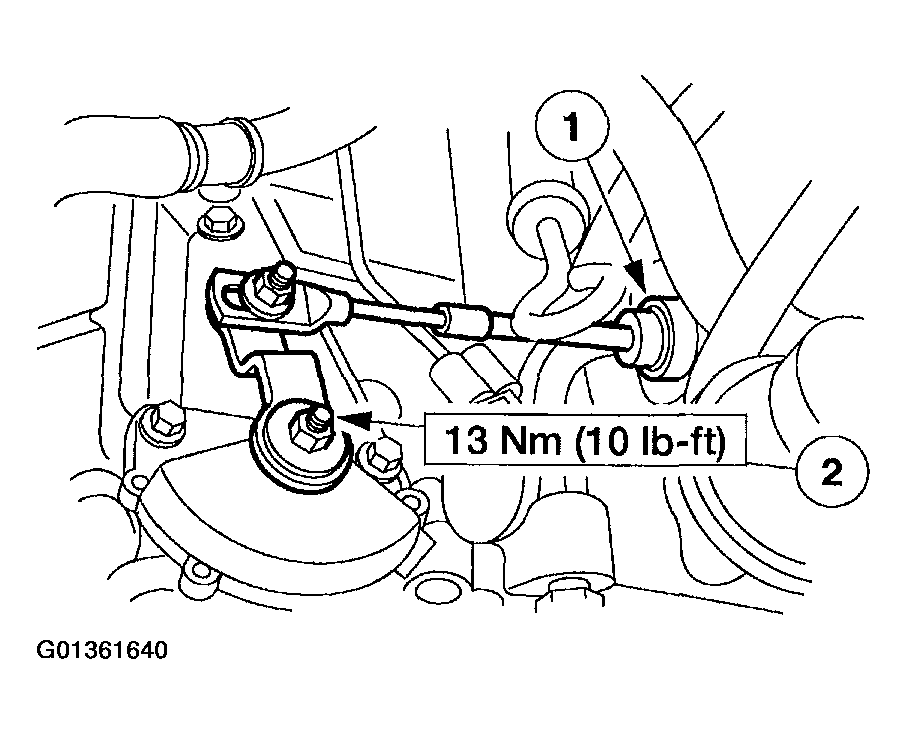

  Fig 4: Installing Manual Control Lever Cable And Nut
  Courtesy of FORD MOTOR CO.
Install the air filter assembly.

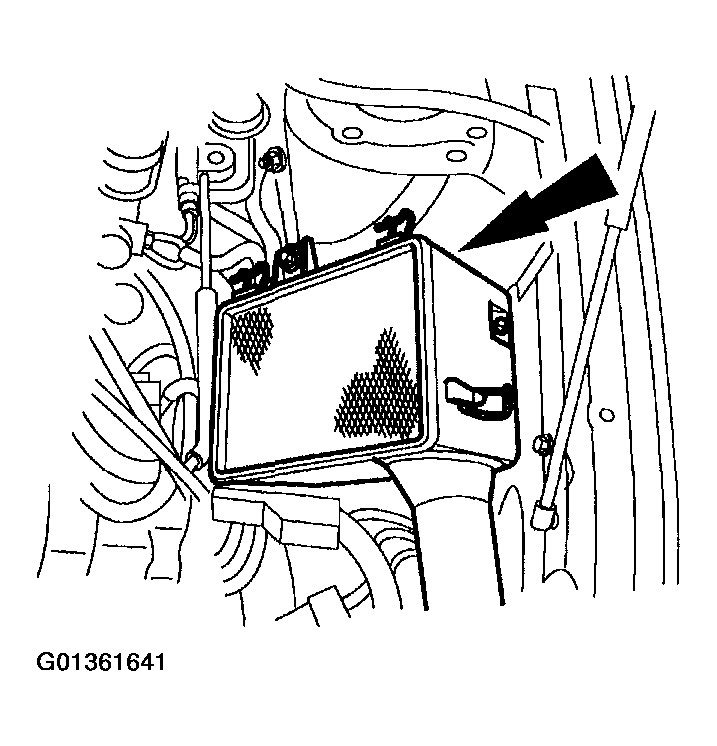

Fig 5: Installing Air Filter Assembly
Courtesy of FORD MOTOR CO.
Install the engine air cleaner.

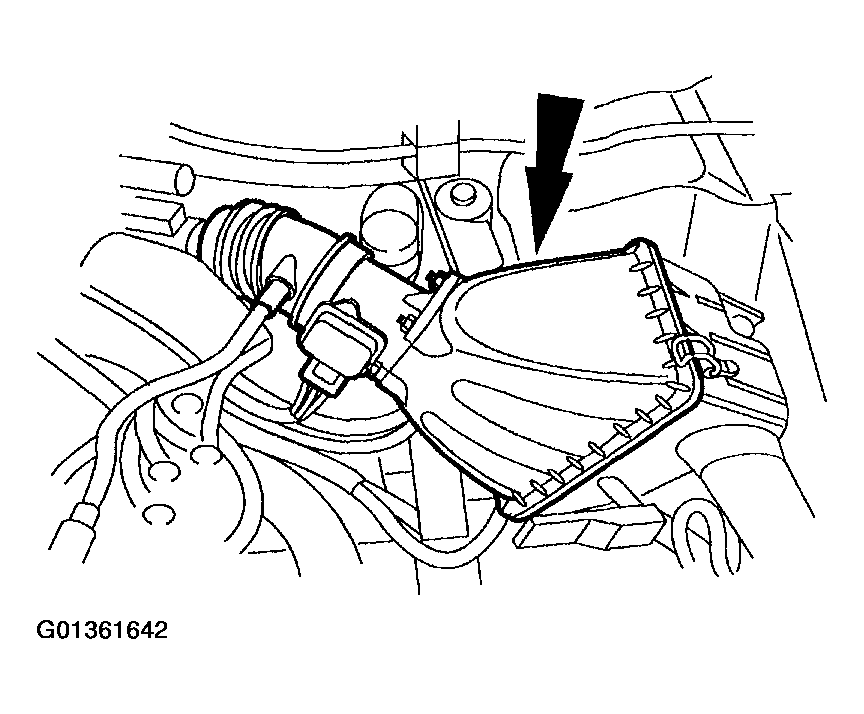

Fig 6: Installing Engine Air Cleaner
Courtesy of FORD MOTOR CO.
Reconnect the mass air flow (MAF) sensor and the breather tubes.

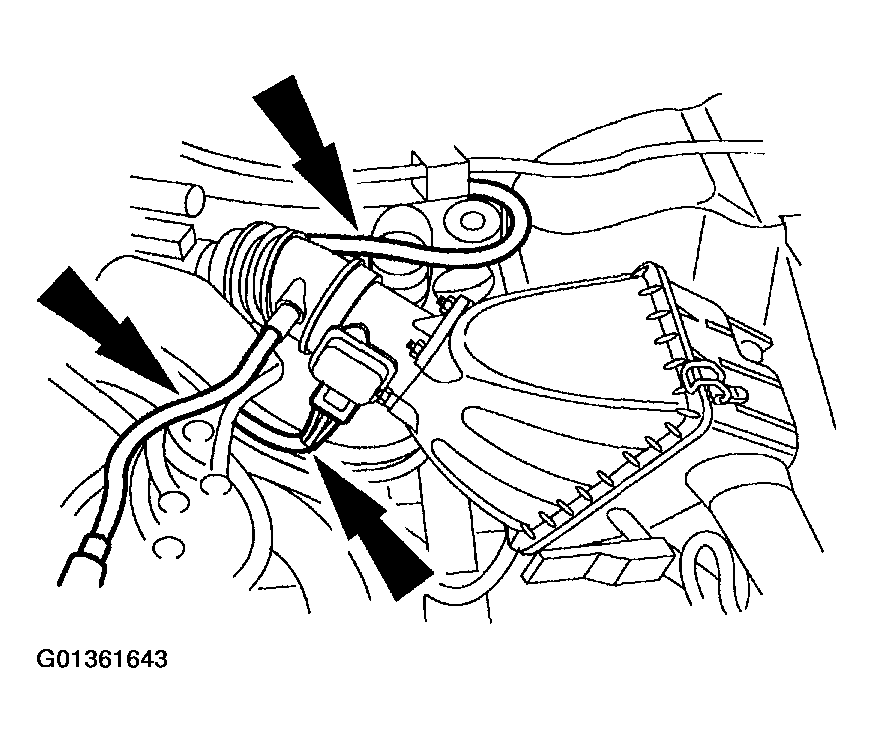

Fig 7: Reconnecting Mass Air Flow (MAF) Sensor And Breather Tubes
Courtesy of FORD MOTOR CO.
Connect the battery ground cable.
Check for correct vehicle operation.
