Valve - Guide Inner Diameter

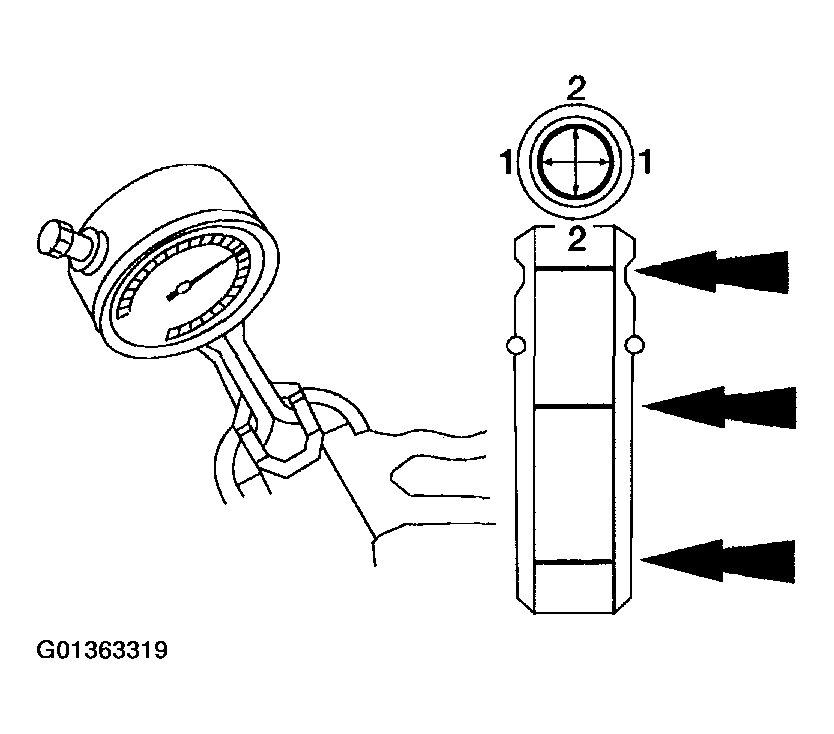

- Measure the inner diameter of the valve guides in two directions where indicated.
- Refer to the For additional information refer to ENGINE - 3.0L (2V) or ENGINE - 3.0L (4V) for the specifications.
- If the valve guide is not within specifications, ream the valve guide and install a valve with an oversize stem or remove the valve guide and install a new valve guide.
