Cruise Control Servo: Service and Repair

SPEED CONTROL ACTUATOR

REMOVAL
1. Disconnect the battery.

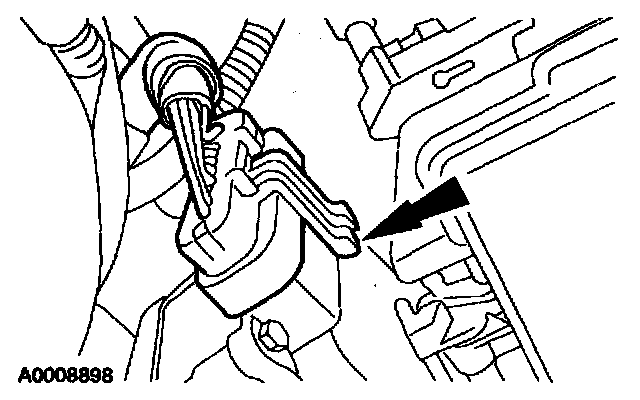

2. Disconnect the speed control actuator electrical connector.
- Press the connector tab.
- Disconnect the connector.

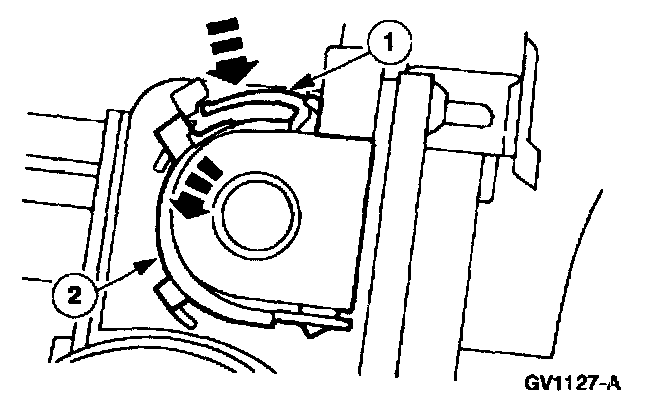

3. Release the speed control cable cap.
1 Press the speed control cable cap retaining tab.
2 Rotate the speed control cable cap counterclockwise and pull the cable cap away from the actuator housing.

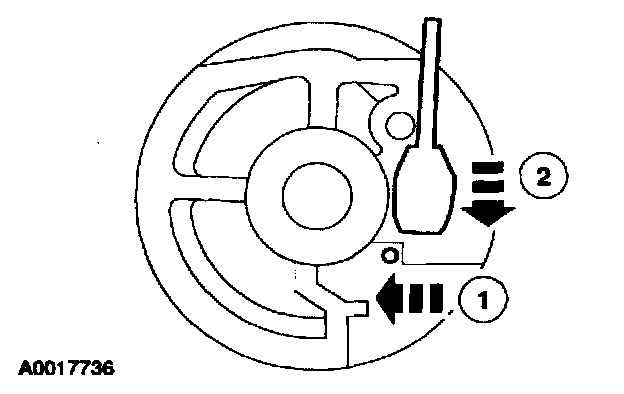

4. Disconnect the speed control cable.
1 Press the spring retainer.
2 Slide the core wire end out of the speed control actuator pulley and disconnect the speed control actuator cable.

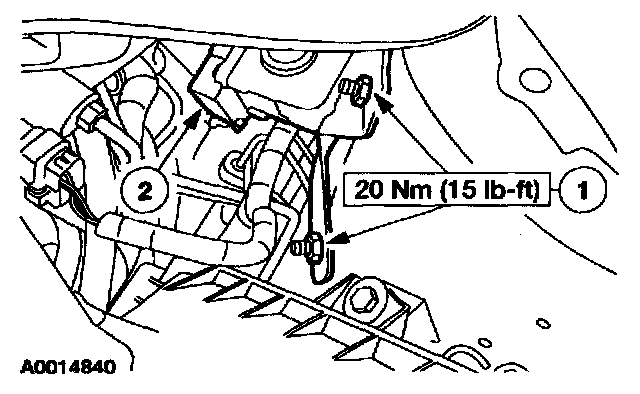

5. Remove the speed control actuator.
1 Remove the nuts.
2 Remove the speed control actuator.

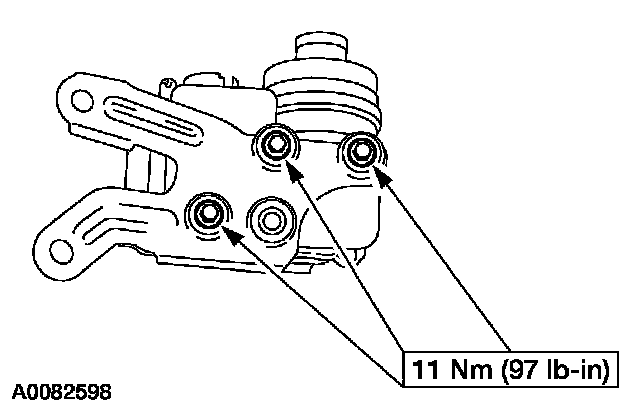

6. Remove the bracket from the speed control actuator.

INSTALLATION
1. To install, reverse the removal procedure.
