Crankshaft Position Sensor: Service and Repair
CRANKSHAFT POSITION (CKP) SENSORREMOVAL
1. Disconnect the battery ground cable.
2. Raise and support the vehicle.

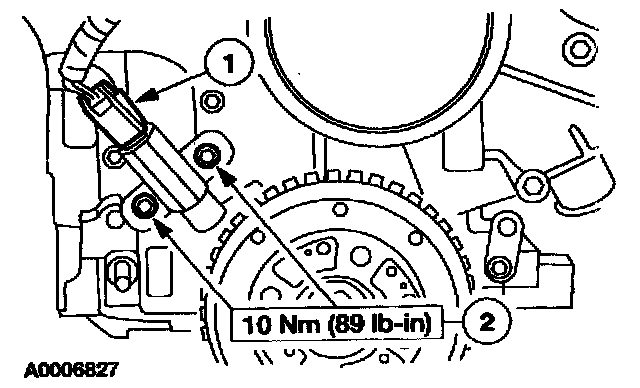

3. Remove the crankshaft position (CKP) sensor.
1 Disconnect the electrical connector.
2 Remove the bolts and the CKP sensor.
INSTALLATION
1. To install, reverse the removal procedure.
