Ignition Lock Cylinder - Functional

IGNITION LOCK CYLINDER - FUNCTIONAL

REMOVAL
1. Disconnect the battery ground cable and wait at least one minute.







2. Remove the ignition switch lock cylinder.

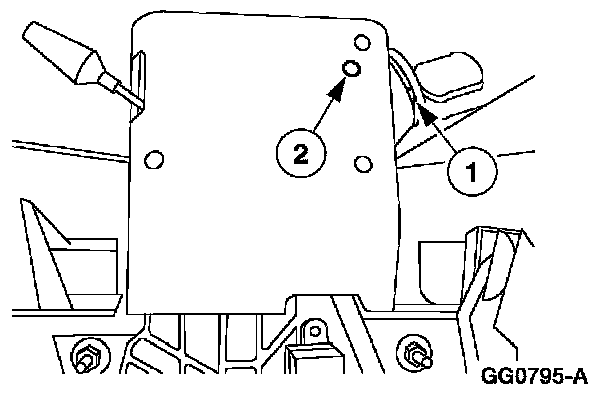

1 Insert the ignition key and turn to the RUN position.
2 While pressing in the ignition switch lock cylinder release pin, pull the lock. cylinder out of the steering column.

INSTALLATION







1. To install, reverse the removal procedure.
- Verify the ignition switch lock cylinder operation.
