Home >> Ford >> 2004 >> Thunderbird V8-3.9L VIN A >> Repair and Diagnosis >> Diagrams >> Connector Views >> Body Control Module >> Rear Electronic Module (Rem)
April 5, 2026: LEMON Manuals is launched! Read the announcement.

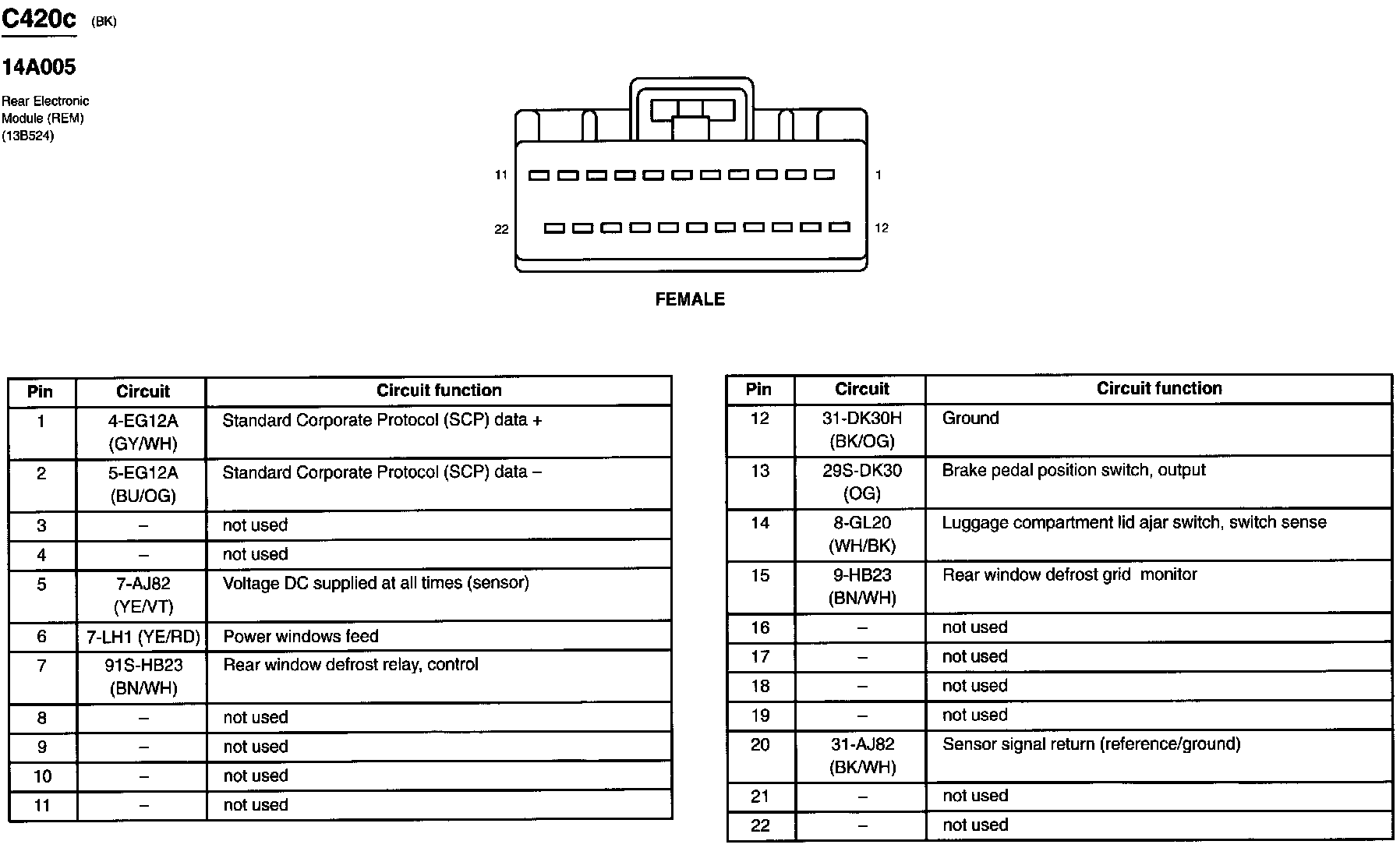

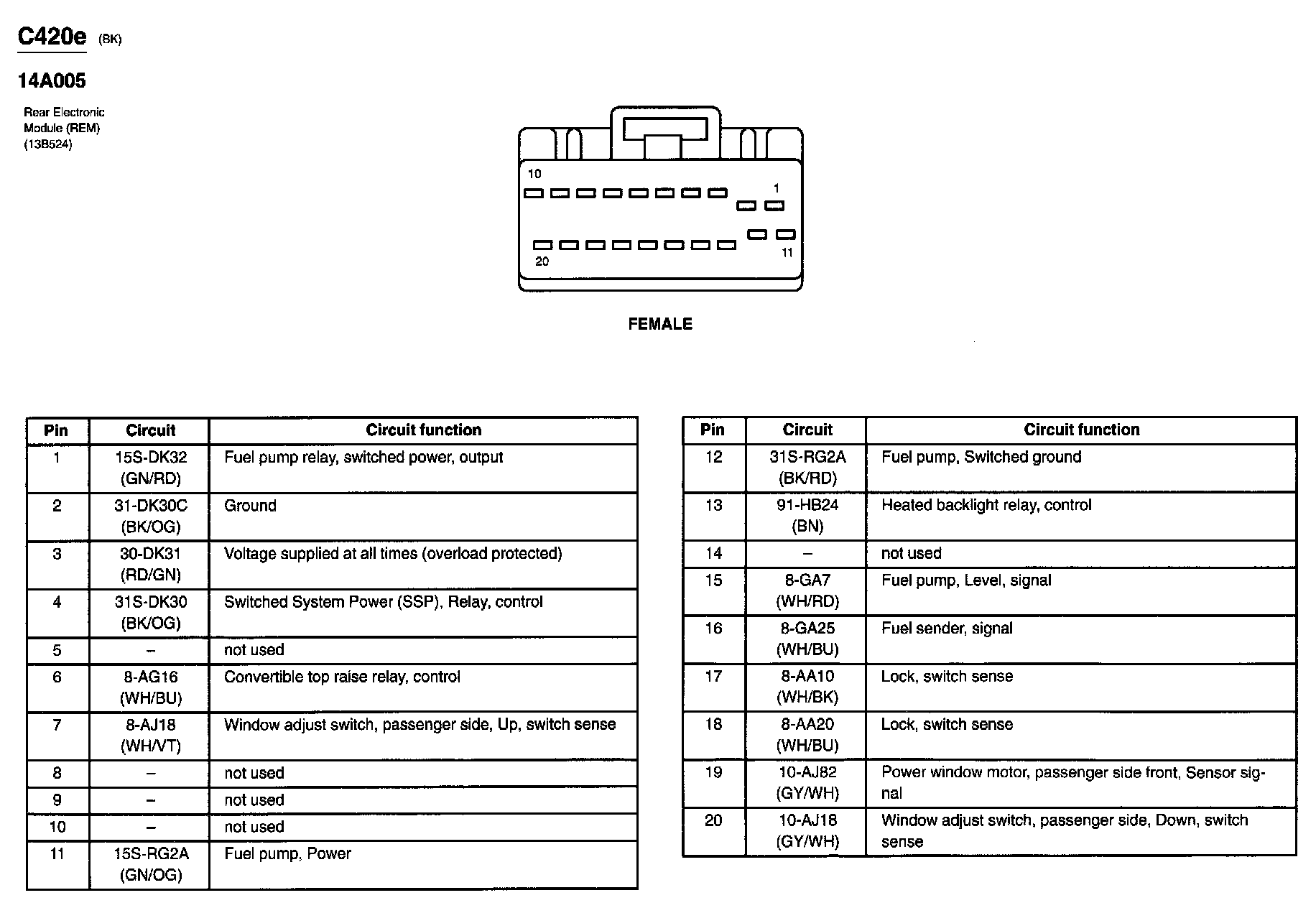

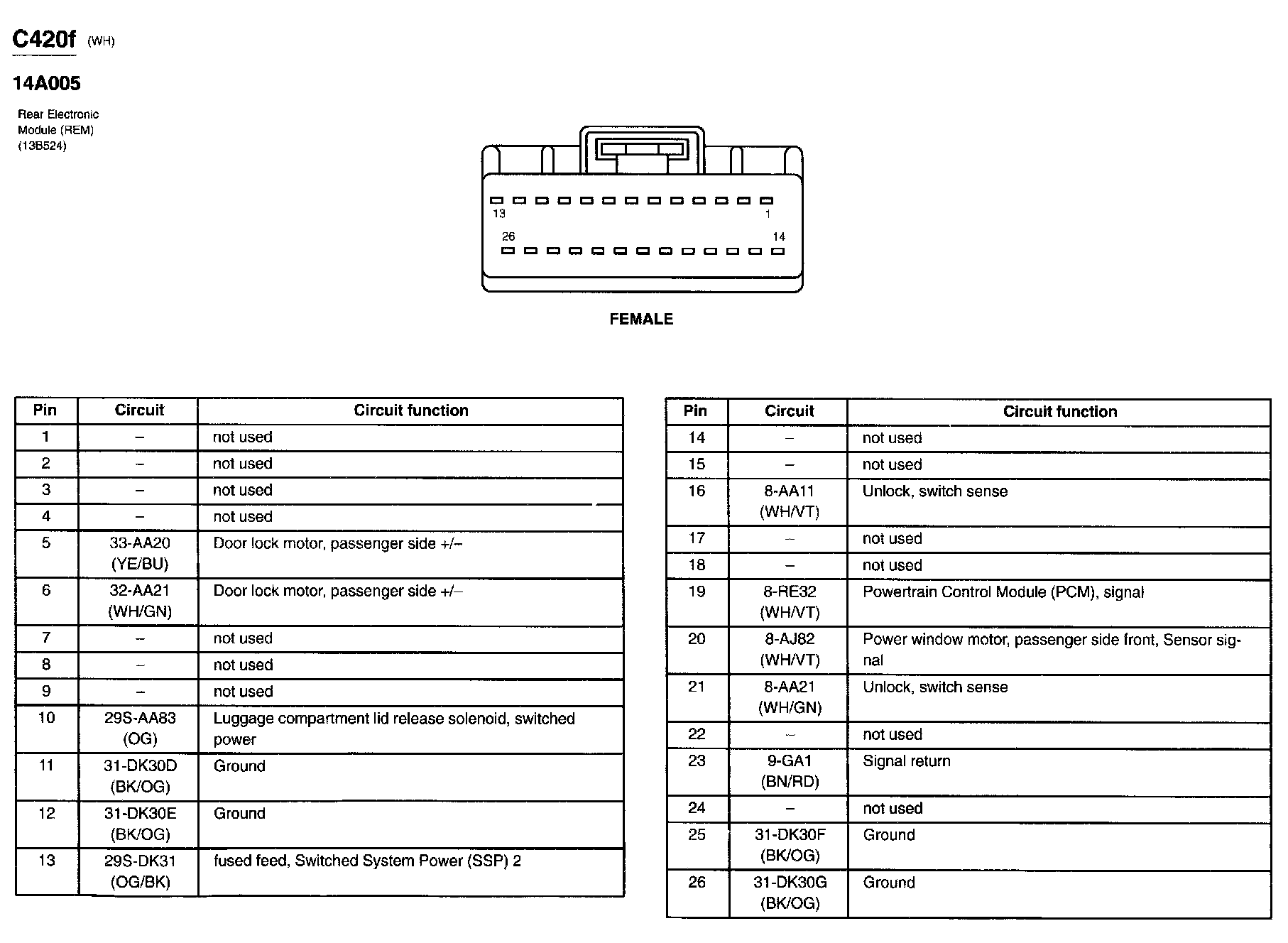

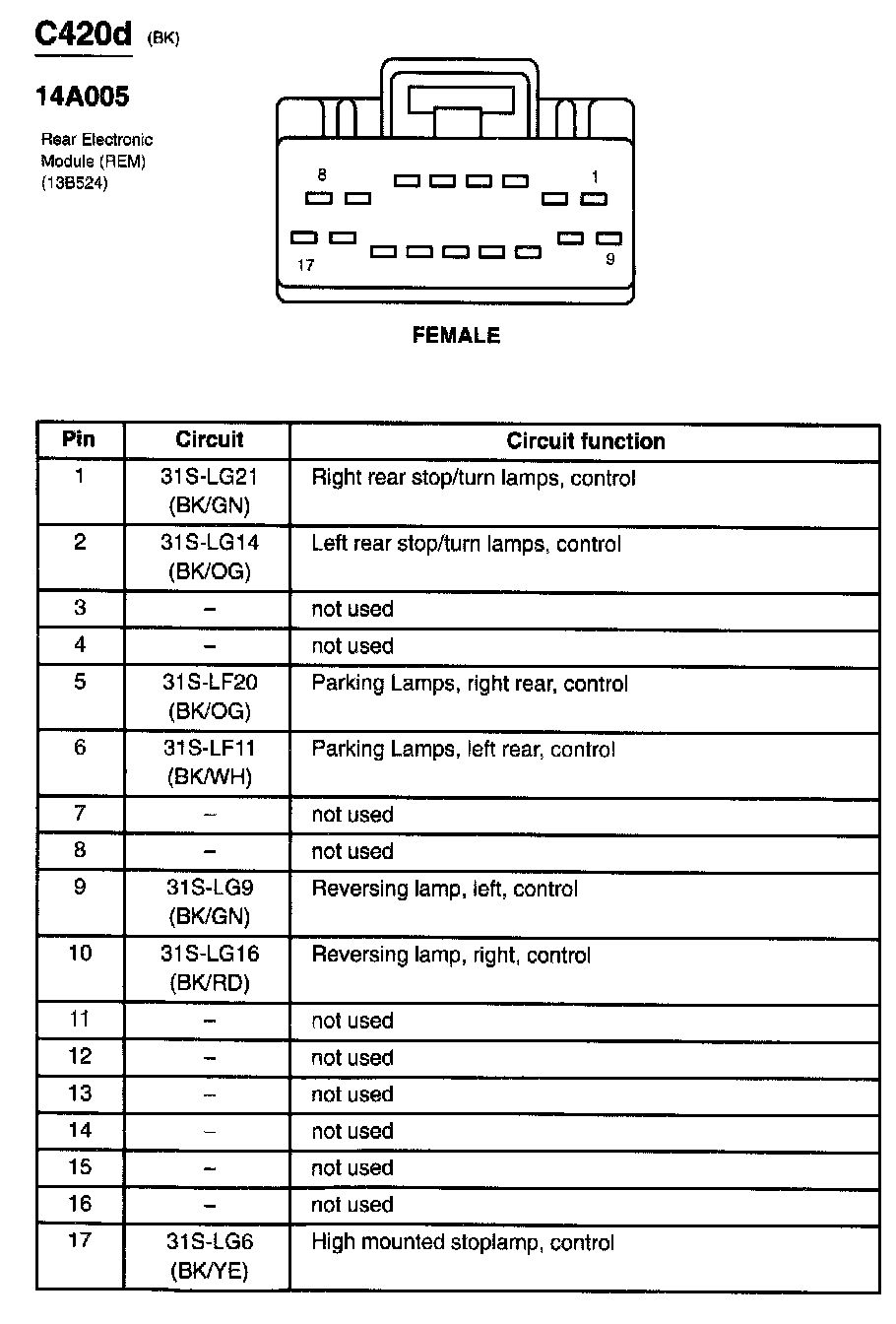

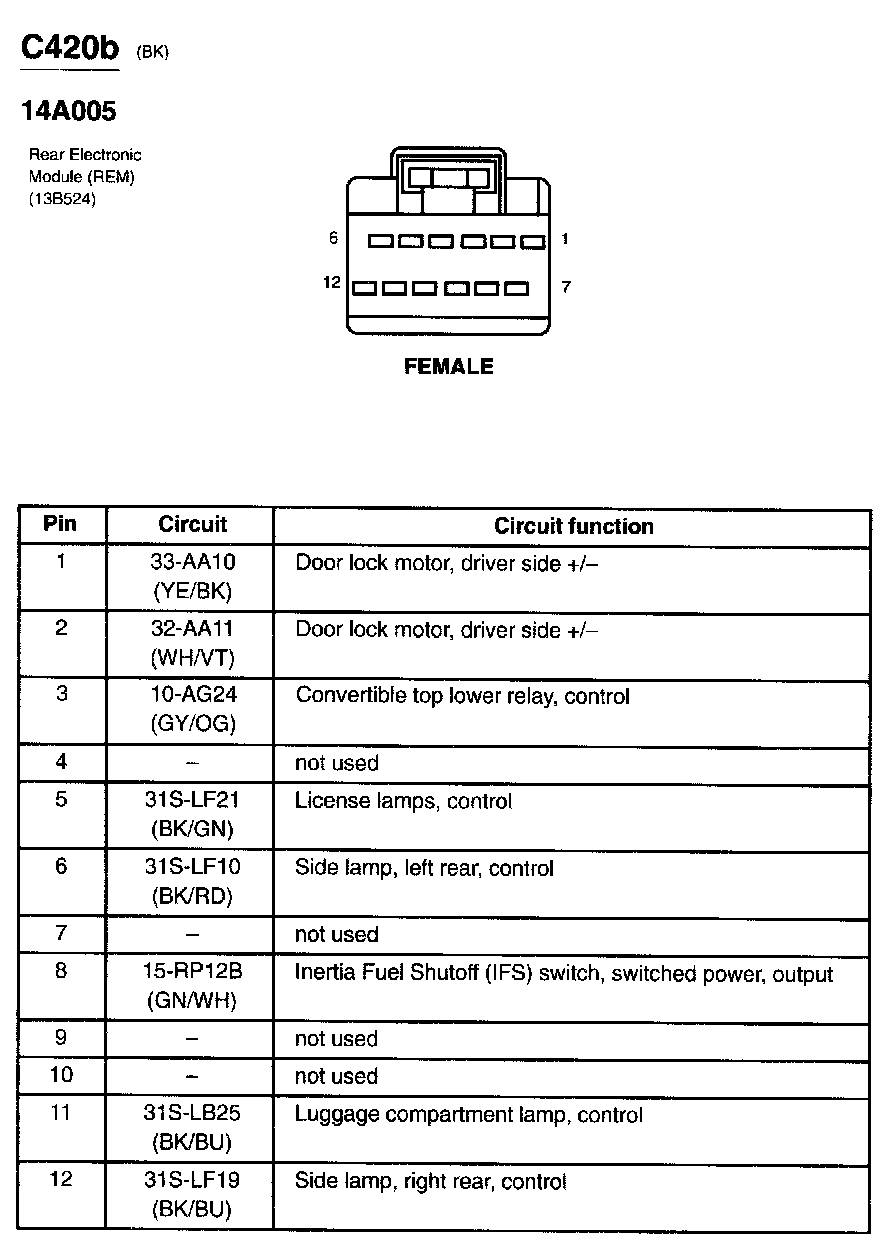

Rear Electronic Module (Rem)
