Torque Specifications

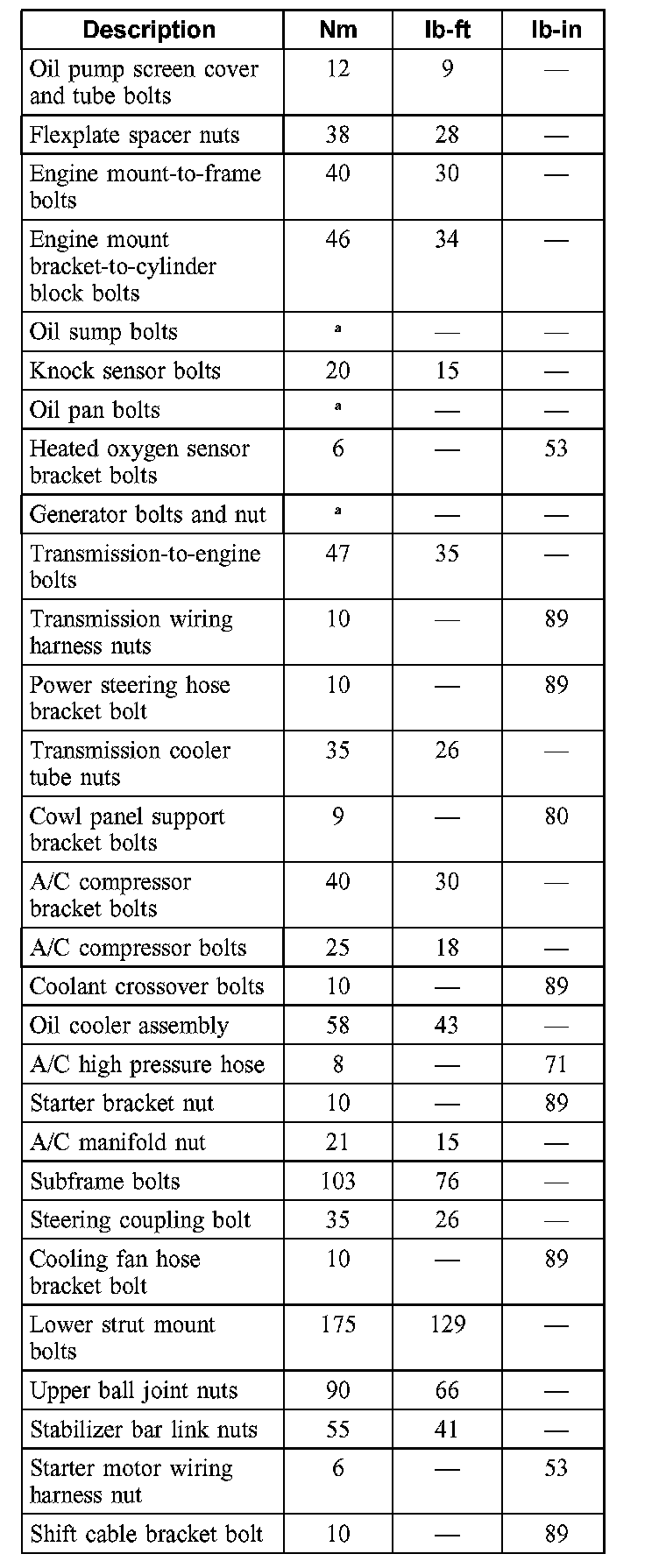

Torque Specifications Part 1 Of 5:

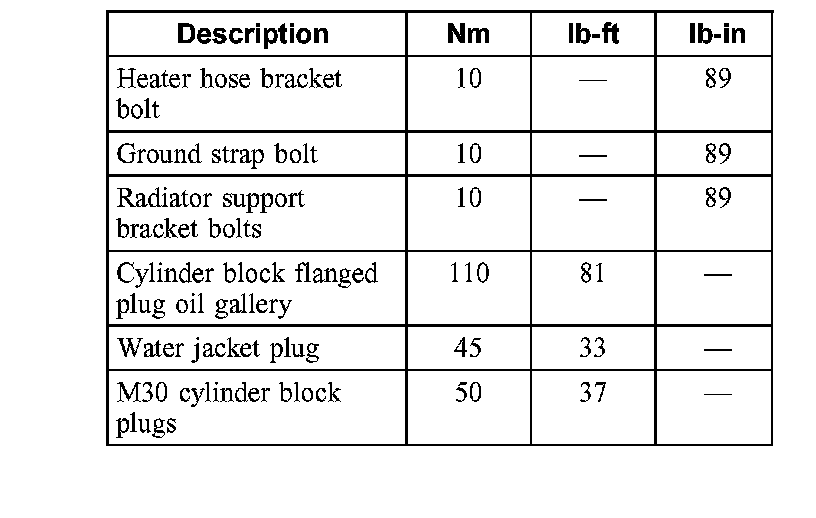

Torque Specifications Part 2 Of 5:

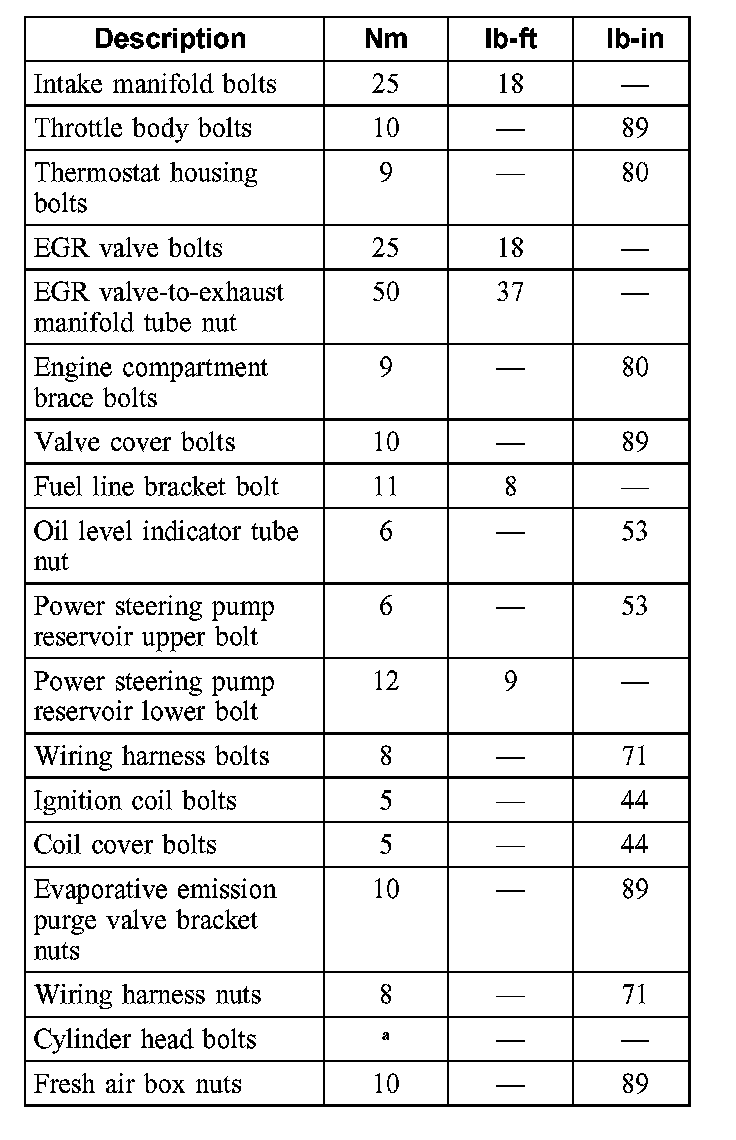

Torque Specifications Part 3 Of 5:

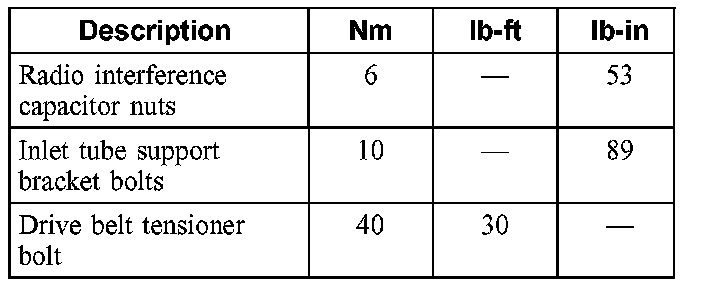

Torque Specifications Part 4 Of 5:

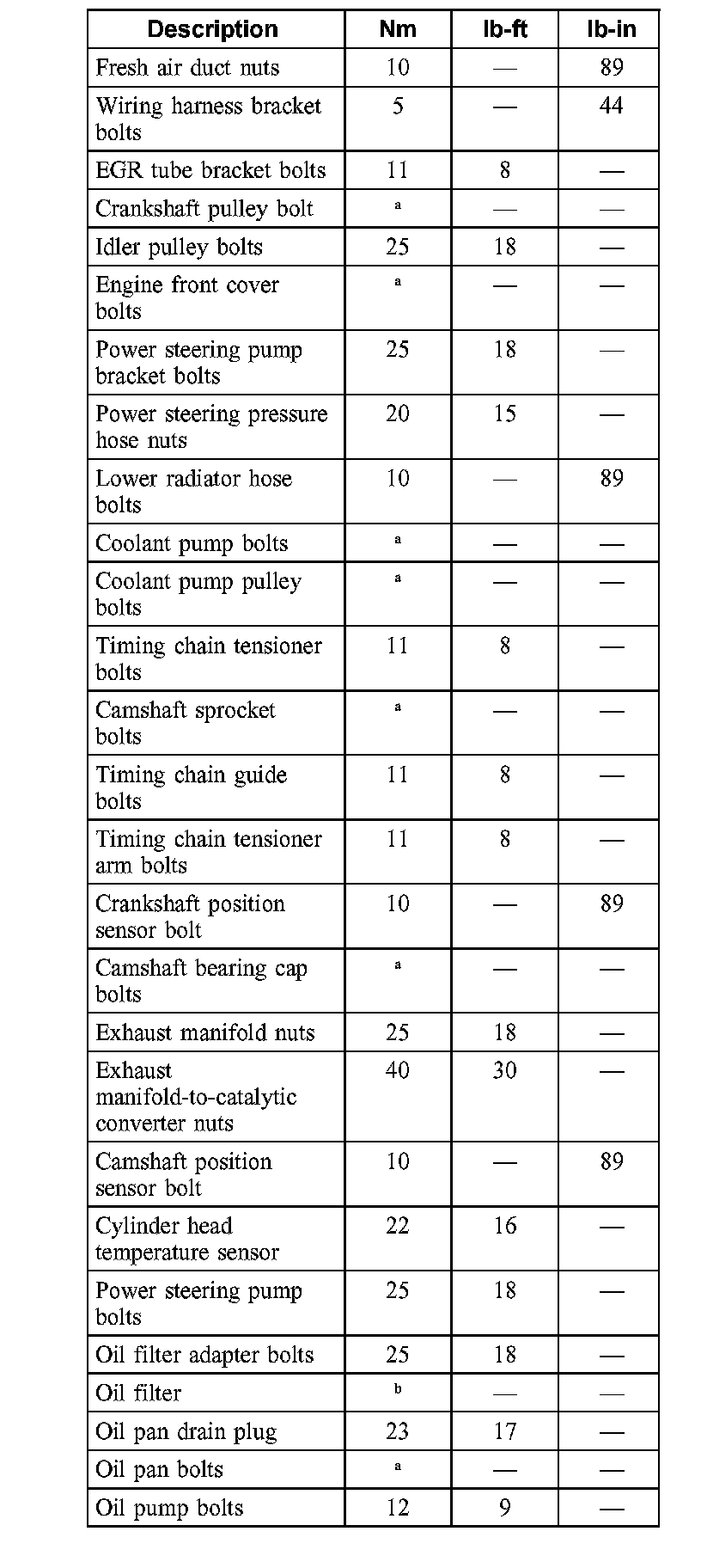

Torque Specifications Part 5 Of 5:

CYLINDER HEAD BOLT REUSE / REPLACE

NOTE: The cylinder head bolts are a torque-to-yield design and must not be reused. Always use new bolts.

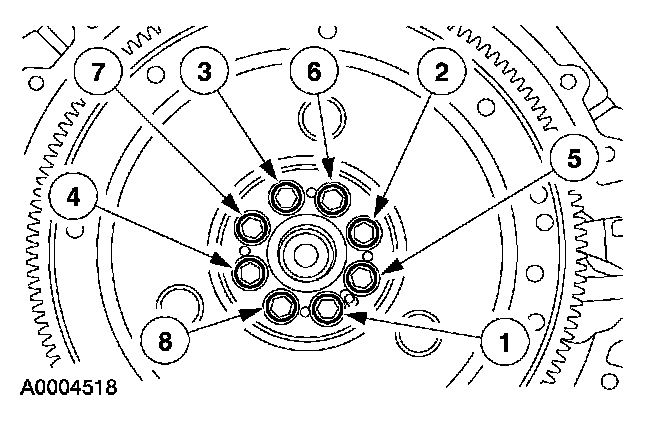

FLEX PLATE TORQUE & SEQUENCE





Flexplate sequence shown.
Tighten in two stages in the sequence shown.
Tighten 15 Nm (11 ft. lbs.).
Tighten 110 Nm (81 ft. lbs.).
