Powertrain Control Module (PCM): Notes

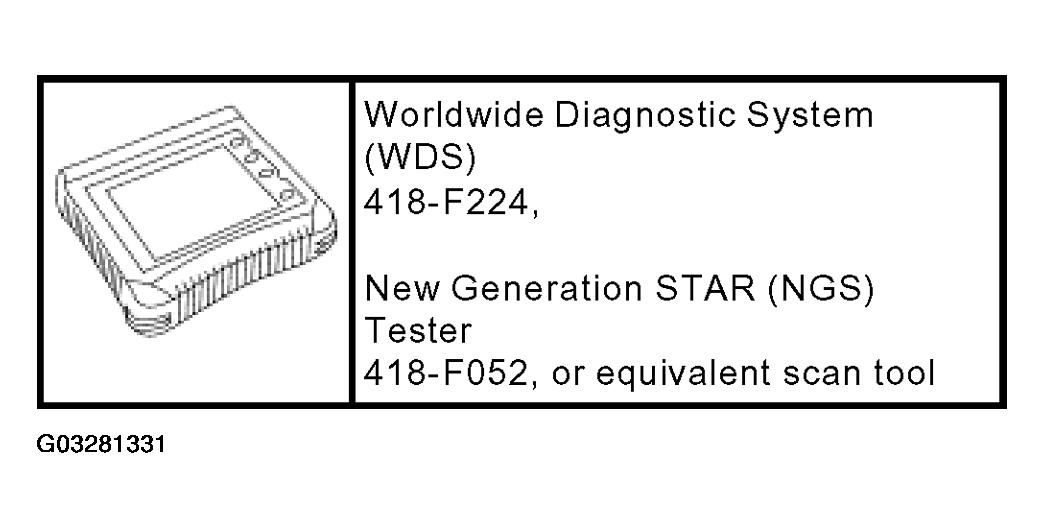

Fig 1: Identifying Special Tool(s)

Courtesy of FORD MOTOR CO.

Disconnect the battery ground cable.
Remove the cabin air filter plenum. For additional information, refer to CLIMATE CONTROL SYSTEM .
Remove the glove compartment. For additional information, refer to BODY SYSTEM - INTERIOR .
Remove the components in the order indicated in the following illustration and table.

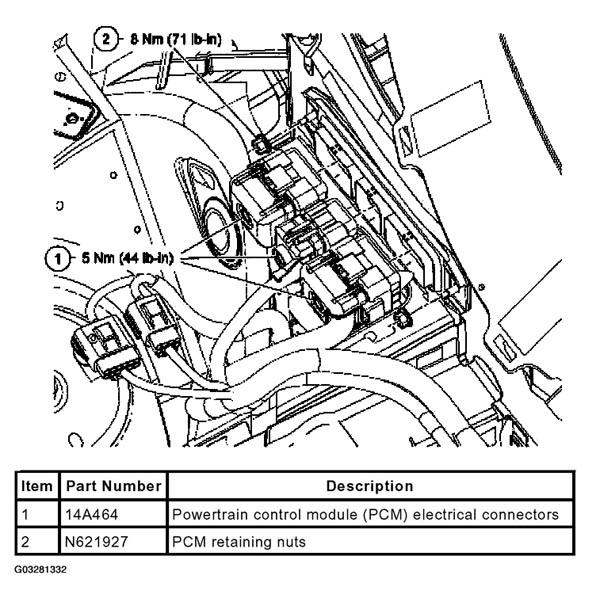

Fig 2: Removing Powertrain Control Module (PCM) (Items 1-2)
Courtesy of FORD MOTOR CO.
Remove the components in the order indicated in the following illustration and table.

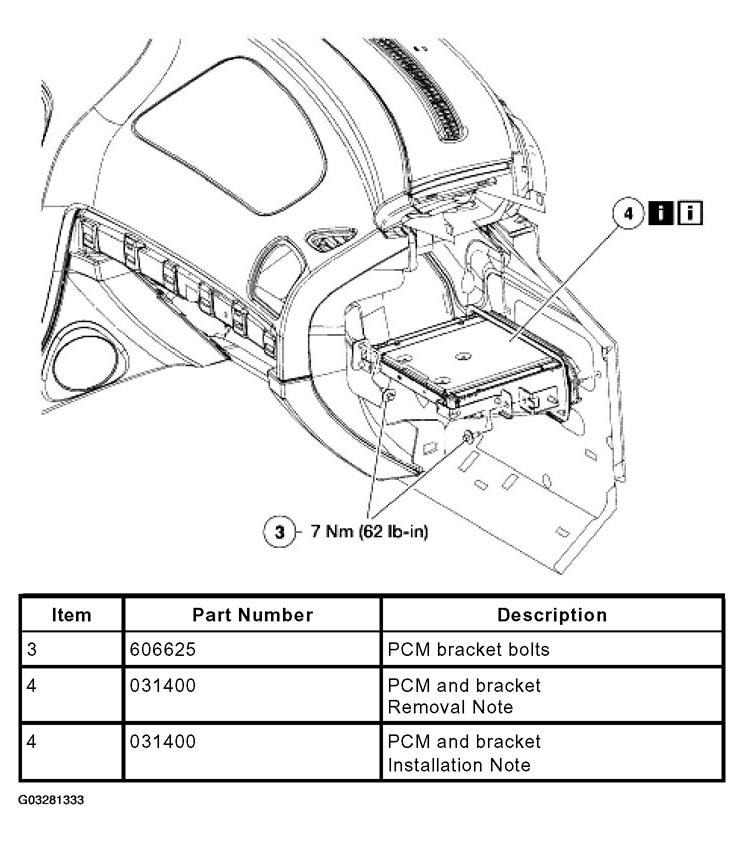

Fig 3: Removing Powertrain Control Module (PCM) (Items 3-4)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Connect the scan tool.
Select ignition control module (ICM).
Select ENTER SECURITY ACCESS. Wait 10 minutes for security access to be granted.
Select PARAMETER RESET.
Disconnect the scan tool.
Place the ignition key in the OFF position.
Place the ignition key in the RUN position.
Remove the ignition key.
