Pinpoint Test A: The Anti-Lock Brake System (Abs) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

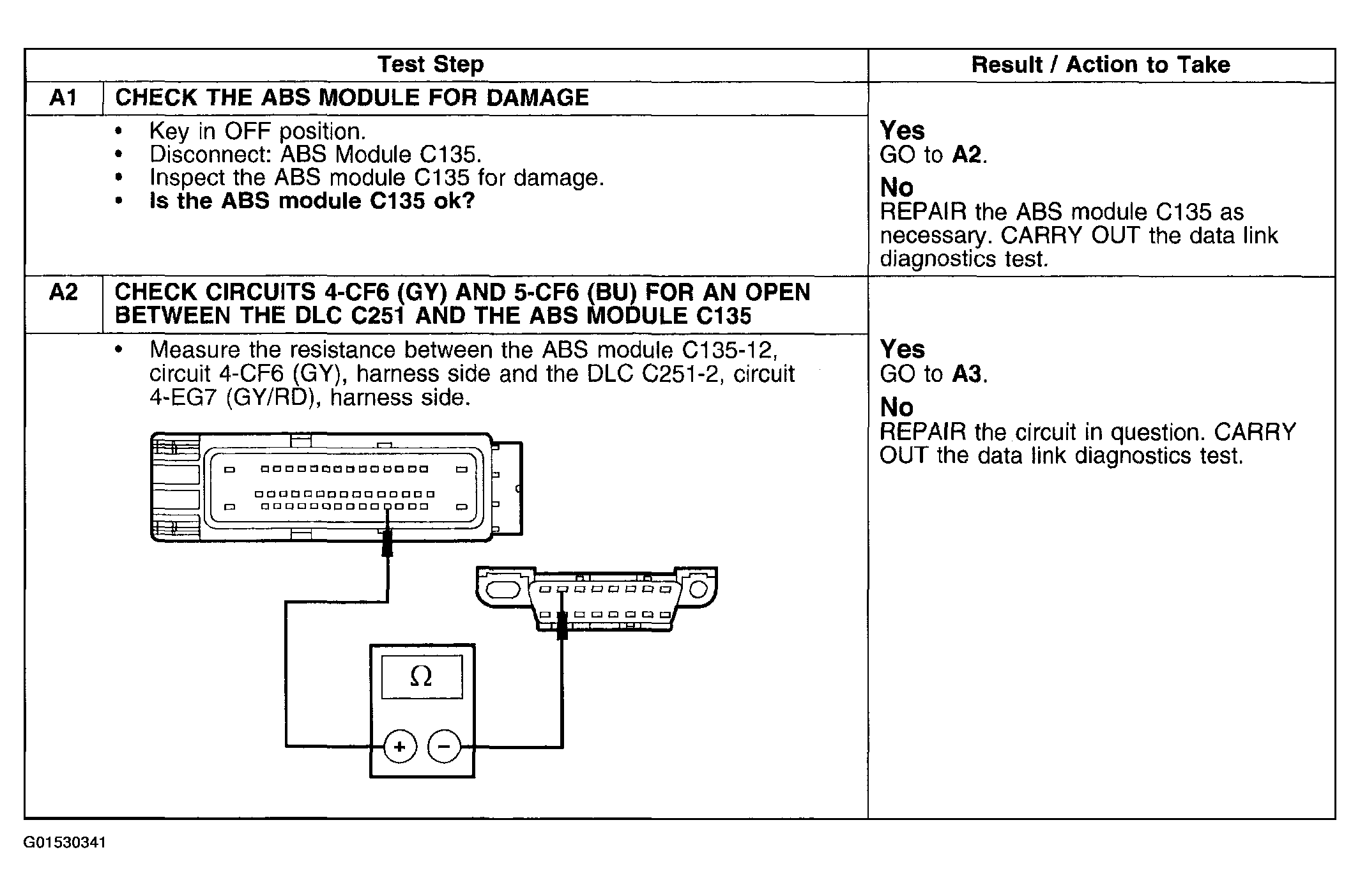

Fig 1: Pinpoint Test A: Anti-Lock Brake System (ABS) Module Does Not Respond To Diagnostic Tool (A1-A2)
G01530341Courtesy of FORD MOTOR CO.

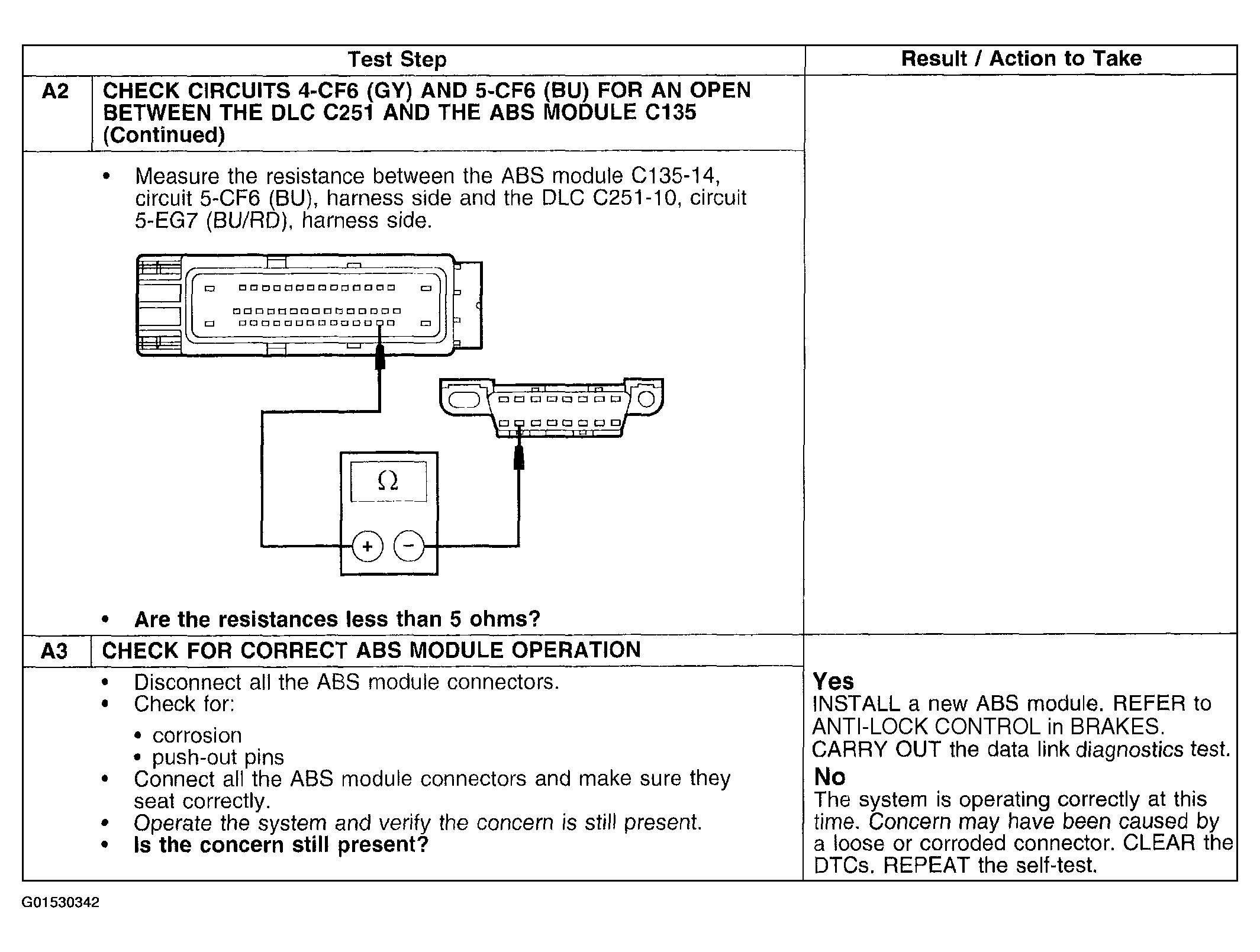

Fig 2: Pinpoint Test A: Anti-Lock Brake System (ABS) Module Does Not Respond To Diagnostic Tool (A2 Cont.-A3)
G01530342Courtesy of FORD MOTOR CO.
