Pinpoint Test F: The Dual Automatic Temperature Control (DATC) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

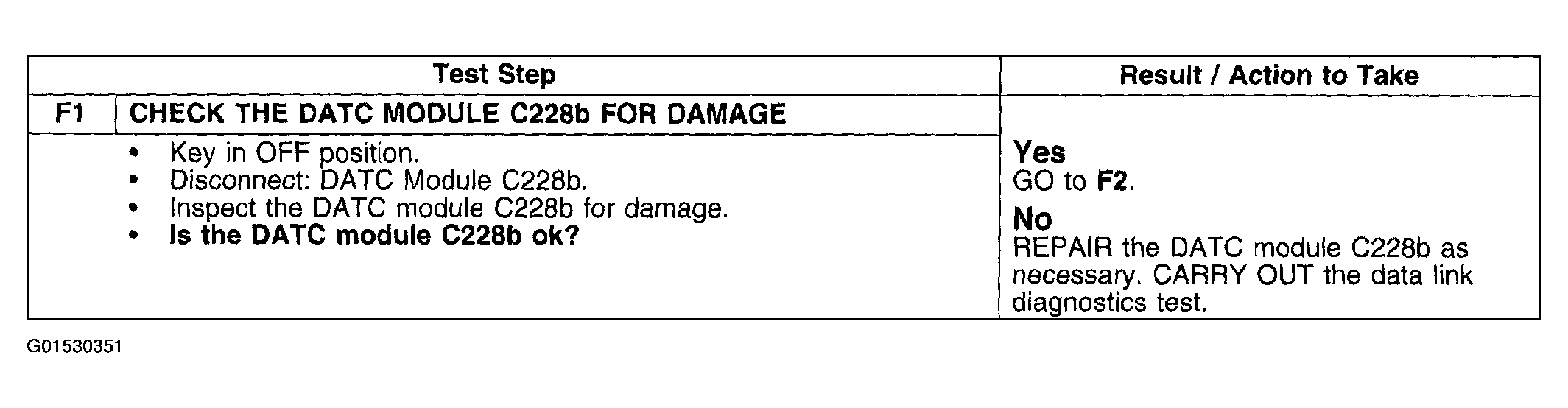

Fig 1: Pinpoint Test F: Dual Automatic Temperature Control (DATC) Module Does Not Respond To Diagnostic Tool (F1)
G01530351Courtesy of FORD MOTOR CO.

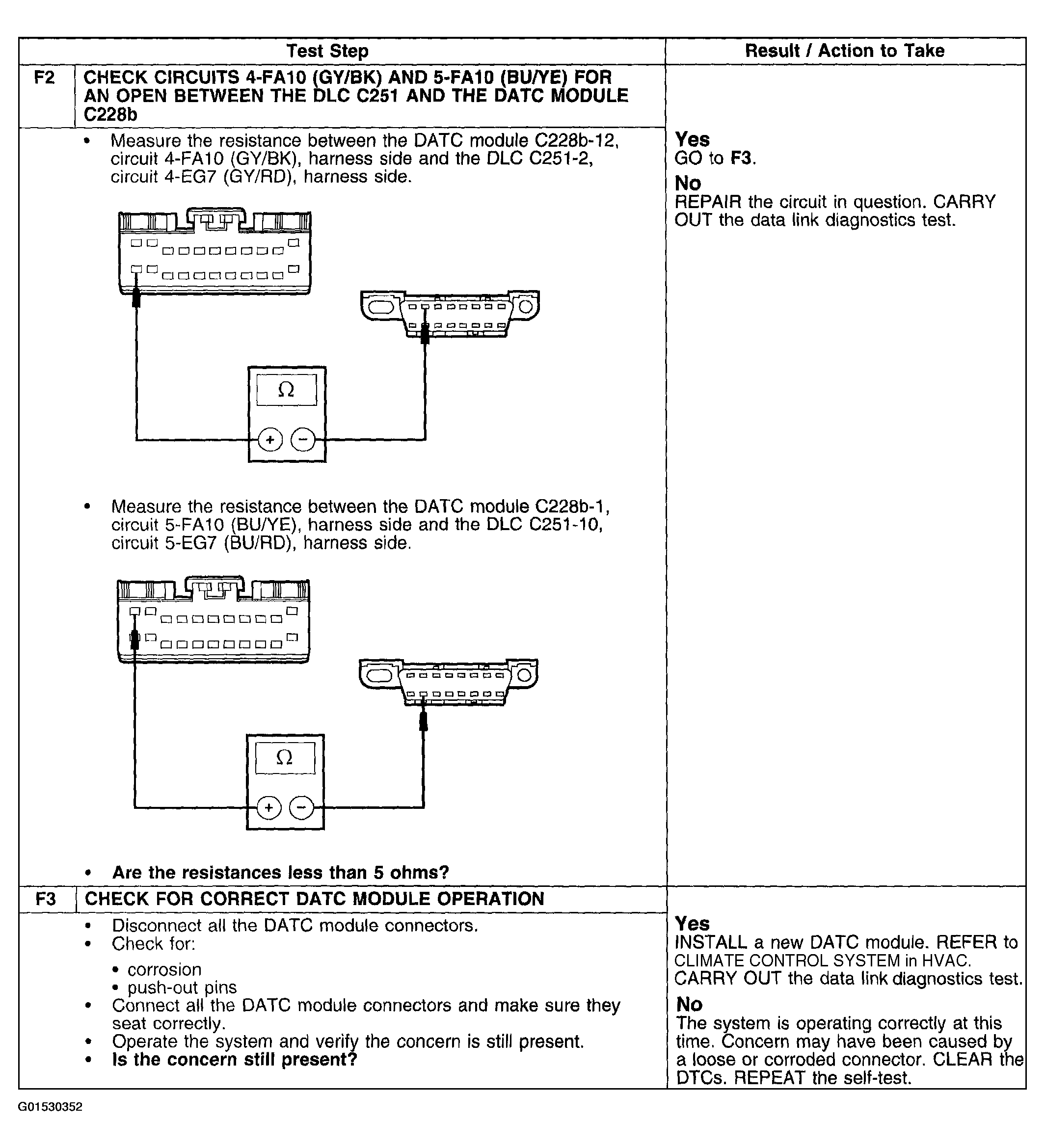

Fig 2: Pinpoint Test F: Dual Automatic Temperature Control (DATC) Module Does Not Respond To Diagnostic Tool (F2-F3)
G01530352Courtesy of FORD MOTOR CO.
