Pinpoint Test H: The Remote Keyless Entry (RKE) Module Does Not Respond To The Diagnostic Tool

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

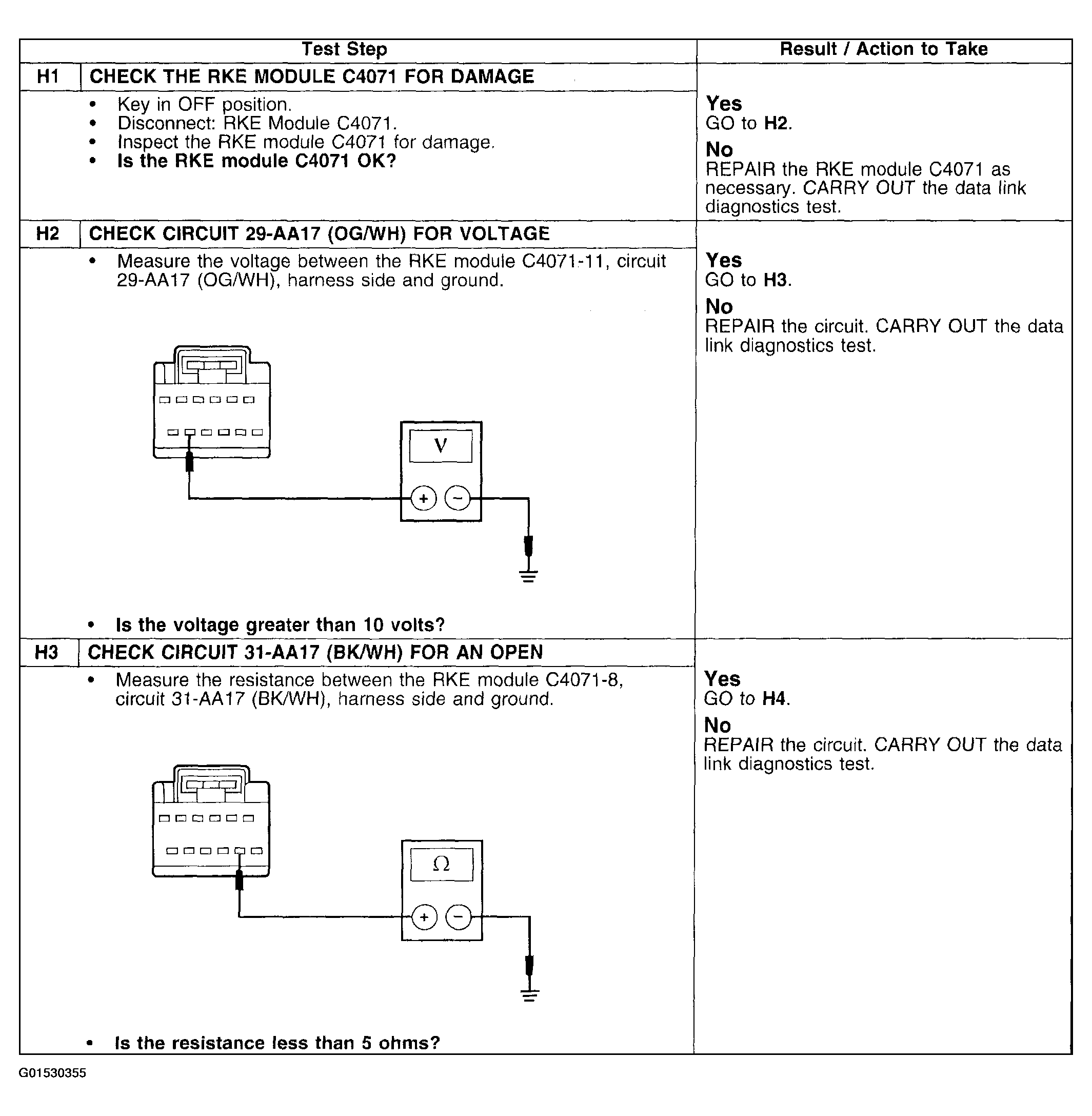

Fig 1: Pinpoint Test H: Remote Keyless Entry (RKE) Module Does Not Respond To Diagnostic Tool (H1-H3)
G01530355Courtesy of FORD MOTOR CO.

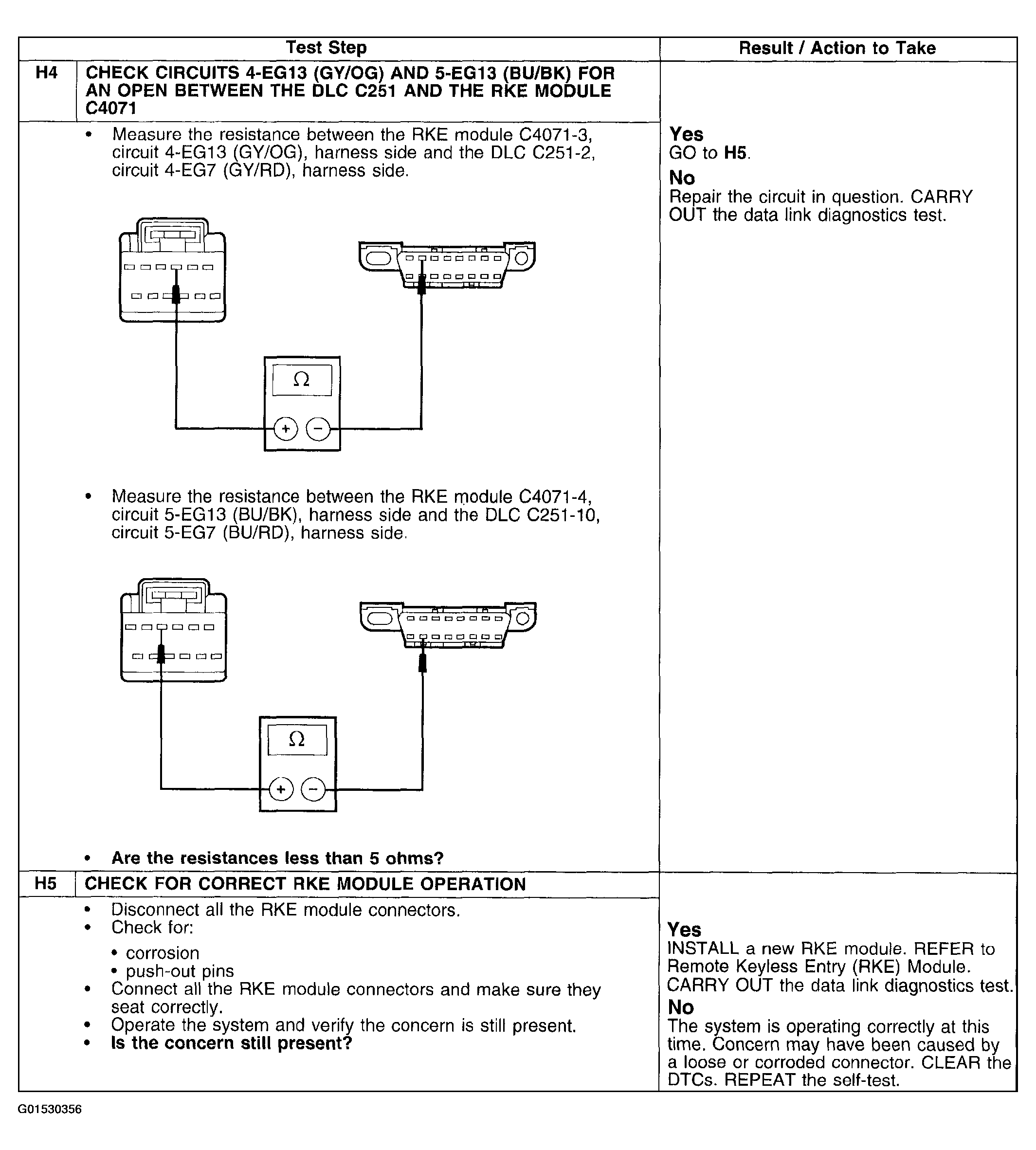

Fig 2: Pinpoint Test H: Remote Keyless Entry (RKE) Module Does Not Respond To Diagnostic Tool (H4-H5)
G01530356Courtesy of FORD MOTOR CO.
