Pinpoint Test I: The Rear Electronic Module (Rem) Does Not Respond To The Diagnostic Tool
WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

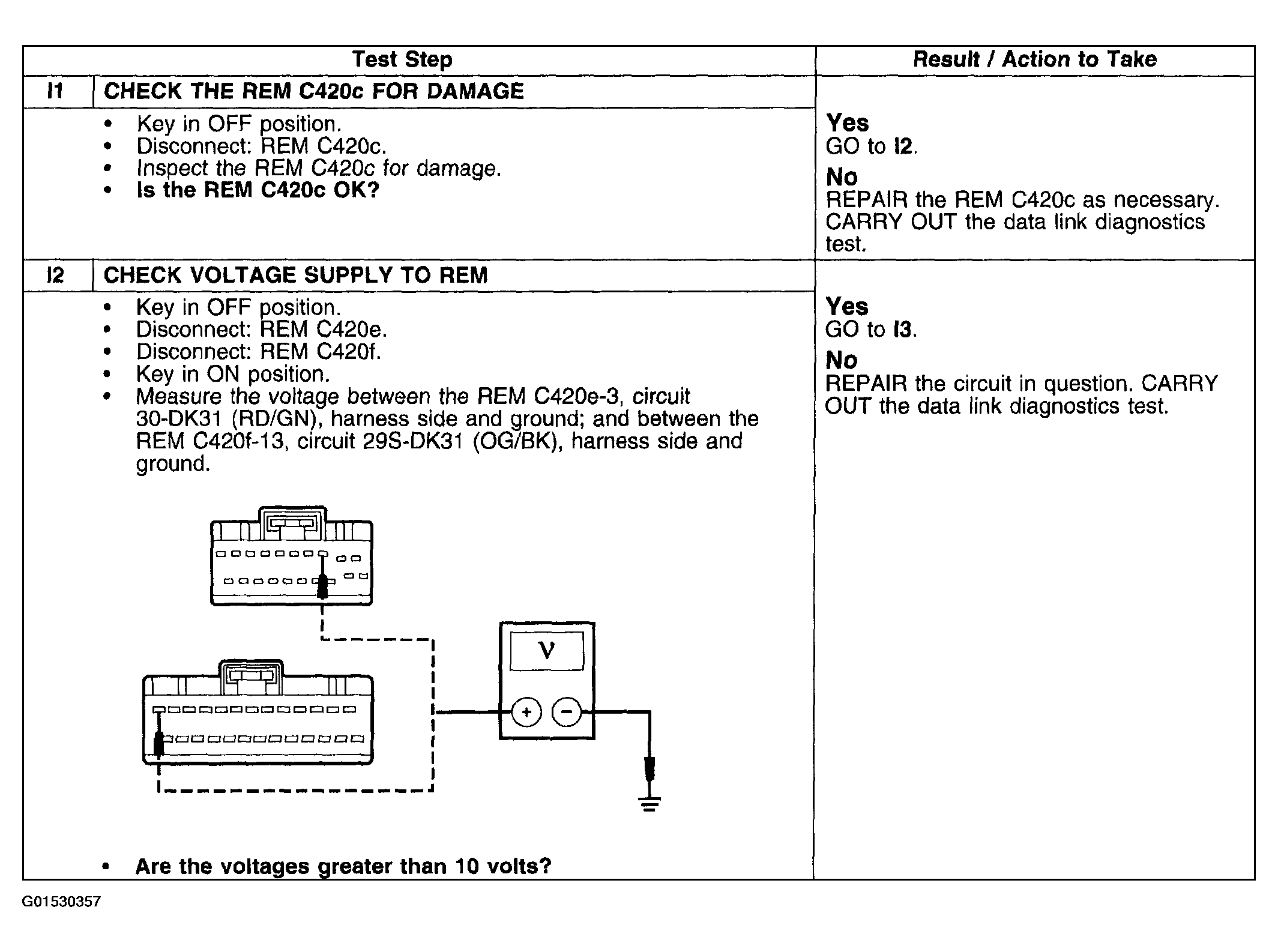

Fig 1: Pinpoint Test I: Rear Electronic Module (REM) Does Not Respond To Diagnostic Tool (I1-I2)
Courtesy of FORD MOTOR CO.

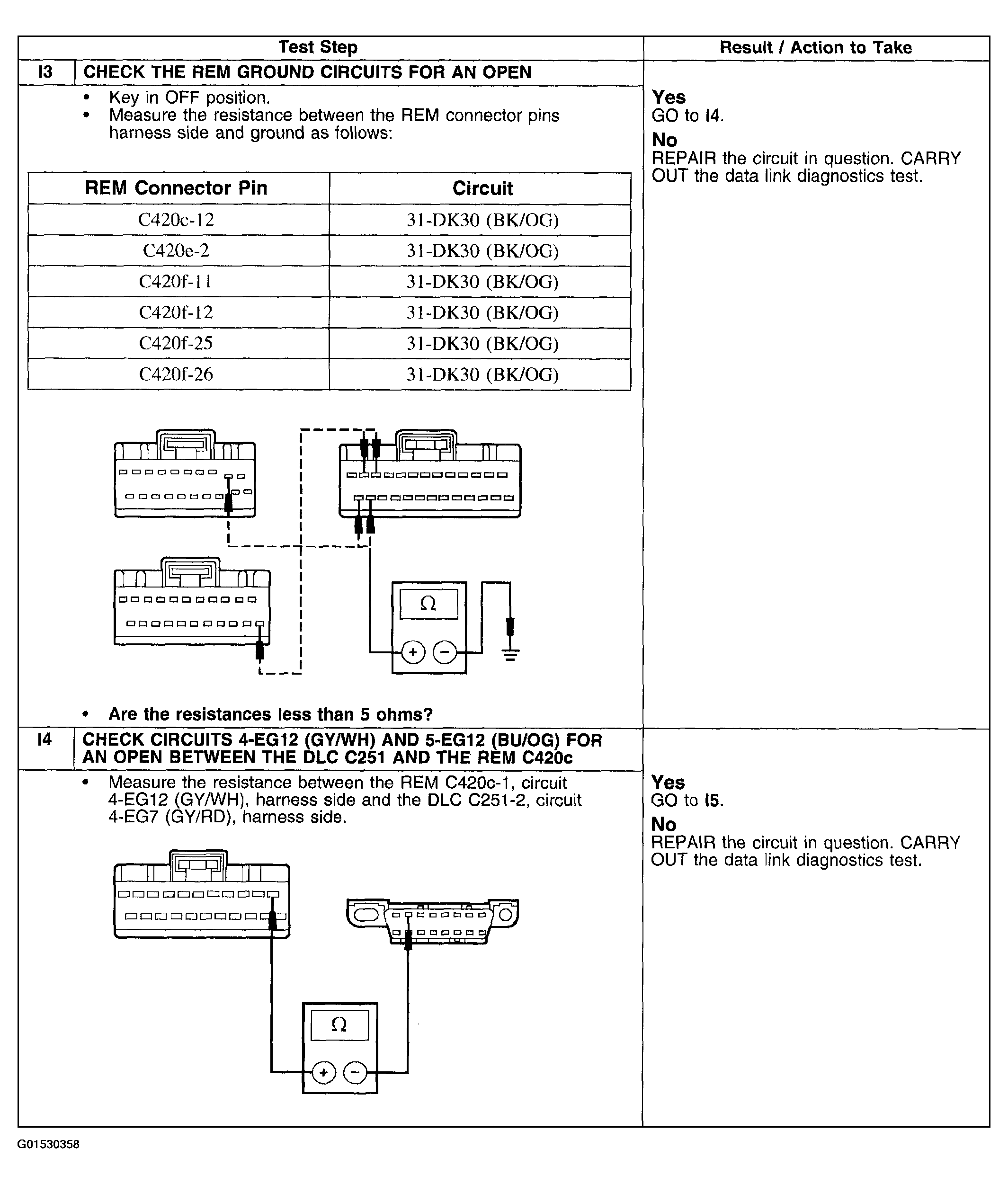

Fig 2: Pinpoint Test I: Rear Electronic Module (REM) Does Not Respond To Diagnostic Tool (I3-I4)
Courtesy of FORD MOTOR CO.

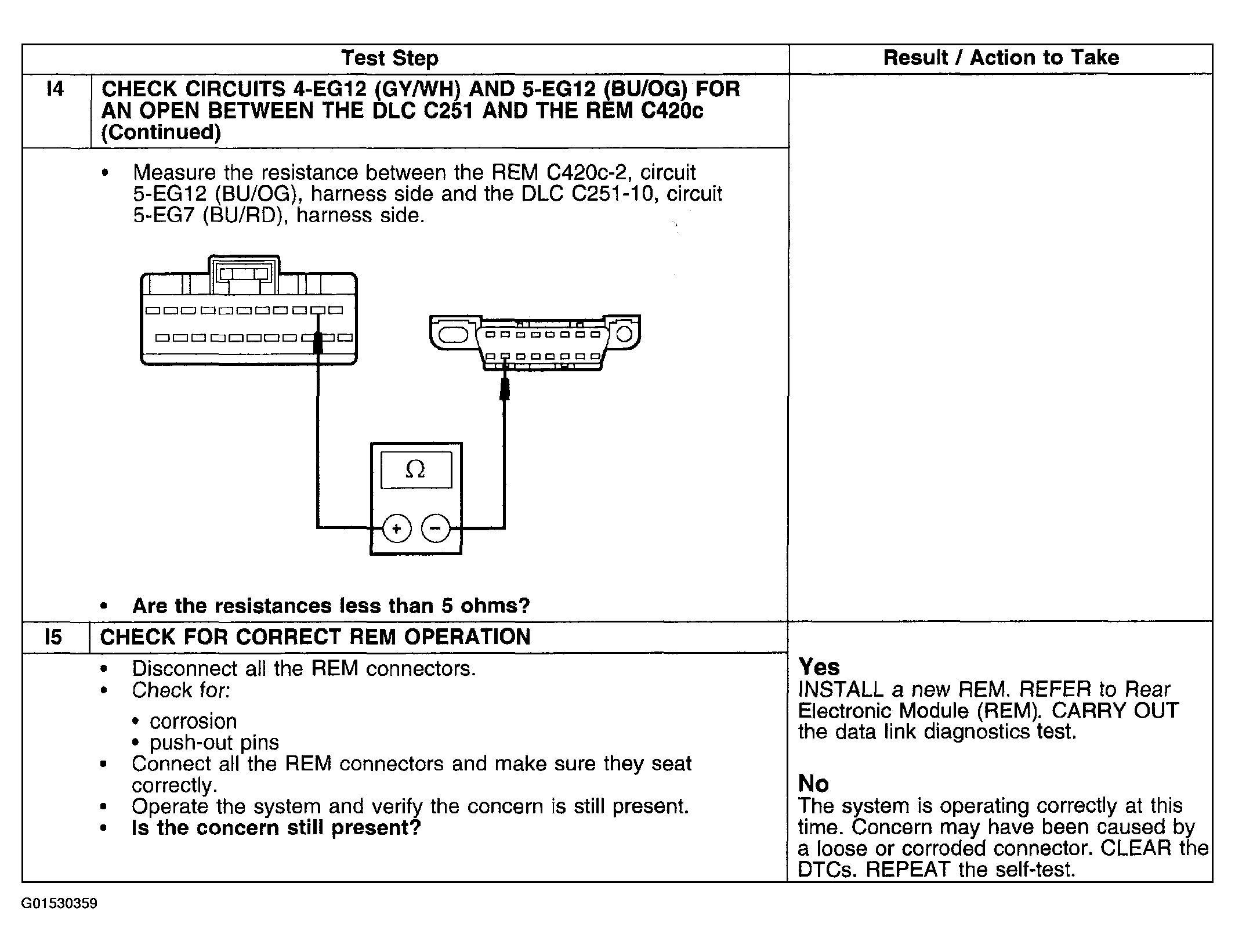

Fig 3: Pinpoint Test I: Rear Electronic Module (REM) Does Not Respond To Diagnostic Tool (I4-I5)
