Speed Control Switch

  1. Remove the driver air bag. For additional information, refer to AIR BAG RESTRAINT SYSTEMS .
  2. Remove the components in the order indicated in the following illustration and table.

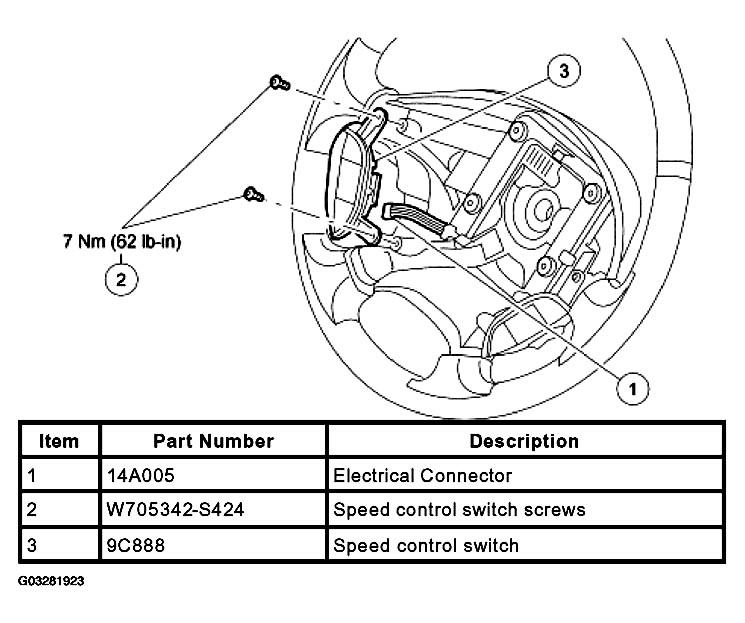

    Fig 1: Removing Speed Control Switch
    G03281923Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
