Front Bumper: Notes

Special Tool(s)

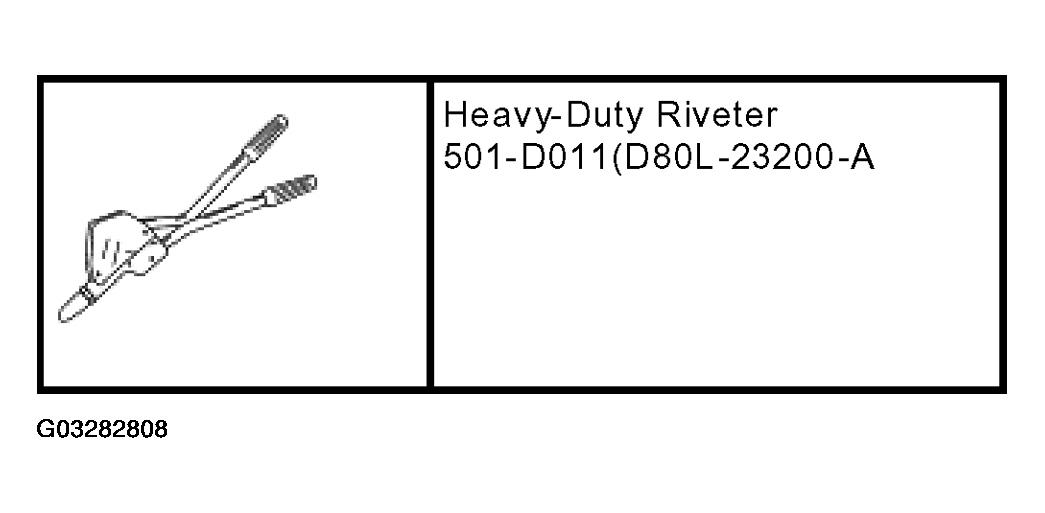

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

1. Remove the headlamp assembly. For additional information, refer to EXTERIOR LIGHTING
2. Remove the parts in the order indicated in the following illustration and table.

   To remove individual parts only, carry out the listed steps:

   FRONT BUMPER COMPONENT REMOVAL STEPS



   Part	Steps
   Air deflector	4-6
   Front bumper cover	7-12
   Radiator grille	7-12, 15-16
   Front bumper isolator	7-12, 17-18
   Front bumper	7-12, 17-20

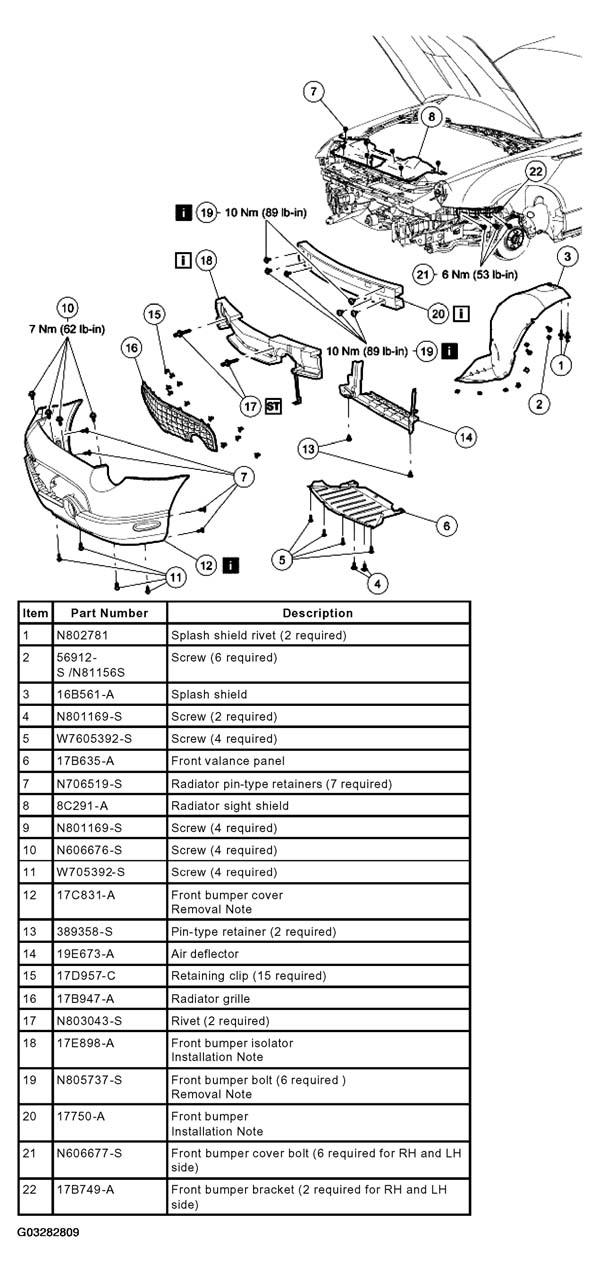

   Fig 2: Front Bumper Removal Sequence

   Courtesy of FORD MOTOR CO.
3. To install, reverse the removal procedure.
