Windshield Glass: Notes

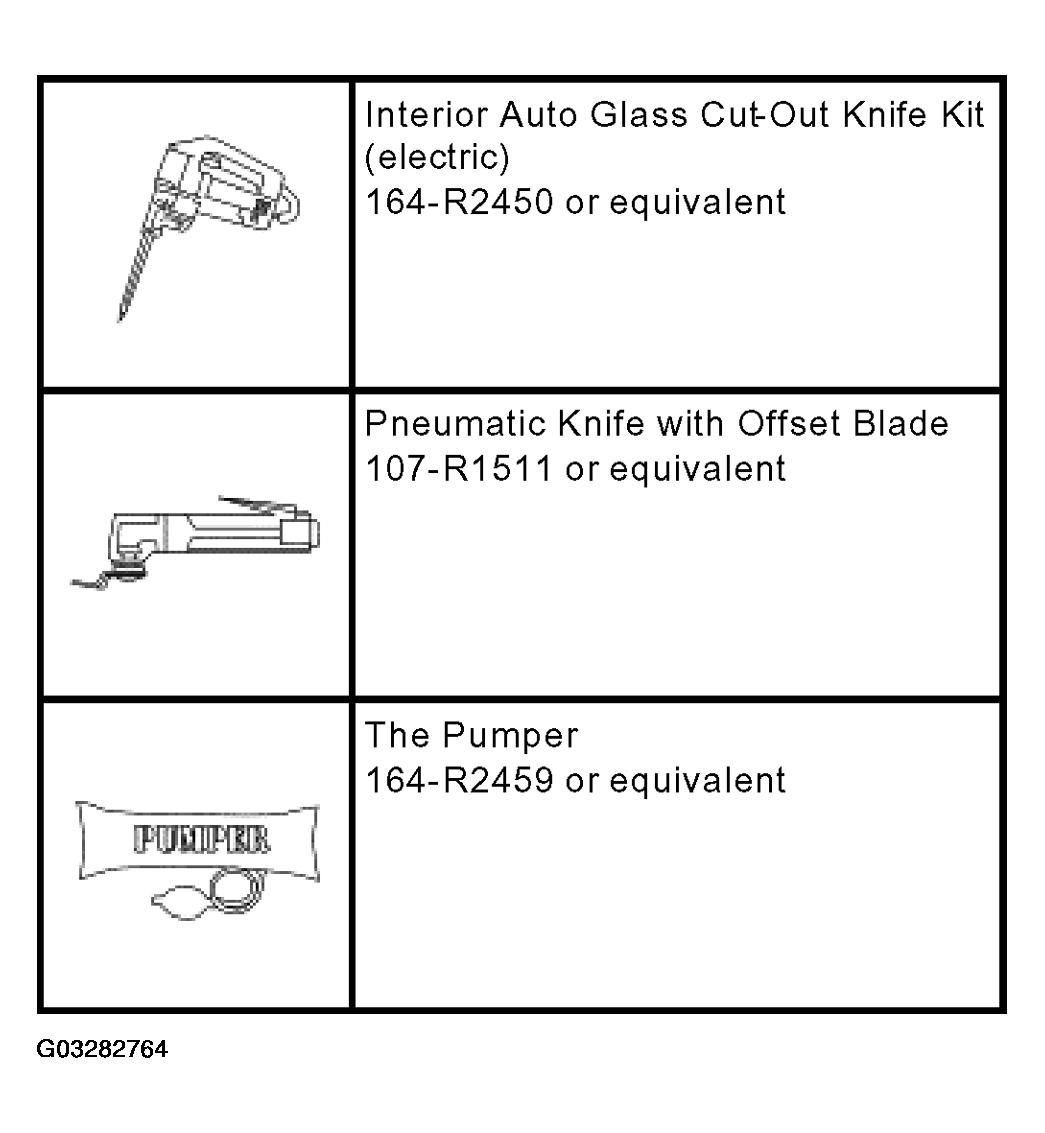

Special Tool(s)

Item	Specification
Urethane Metal Primer Essex U-413	WSB-M2G234-C
Urethane Glass Prep Essex U-401	WSB-M5B280-C
Urethane Glass Primer Essex U-402	WSB-M2G314-B
Urethane Adhesive Essex 400-HV	WSB-M2G316-B

1. Remove the cowl vent screen. For additional information, refer to COWL VENT SCREEN .
2. Remove the windshield side garnish moulding. For additional information, refer to BODY SYSTEM - INTERIOR .
3. Remove the parts in the order indicated in the following illustration and table.

   To remove individual parts only, carry out the listed steps:

   WINDSHIELD GLASS COMPONENT REMOVAL STEPS



   Part	Steps
   Interior rear view mirror	1-2
   Defroster grille	3
   Windshield molding	2, 3, 4-9
   Windshield	1-10

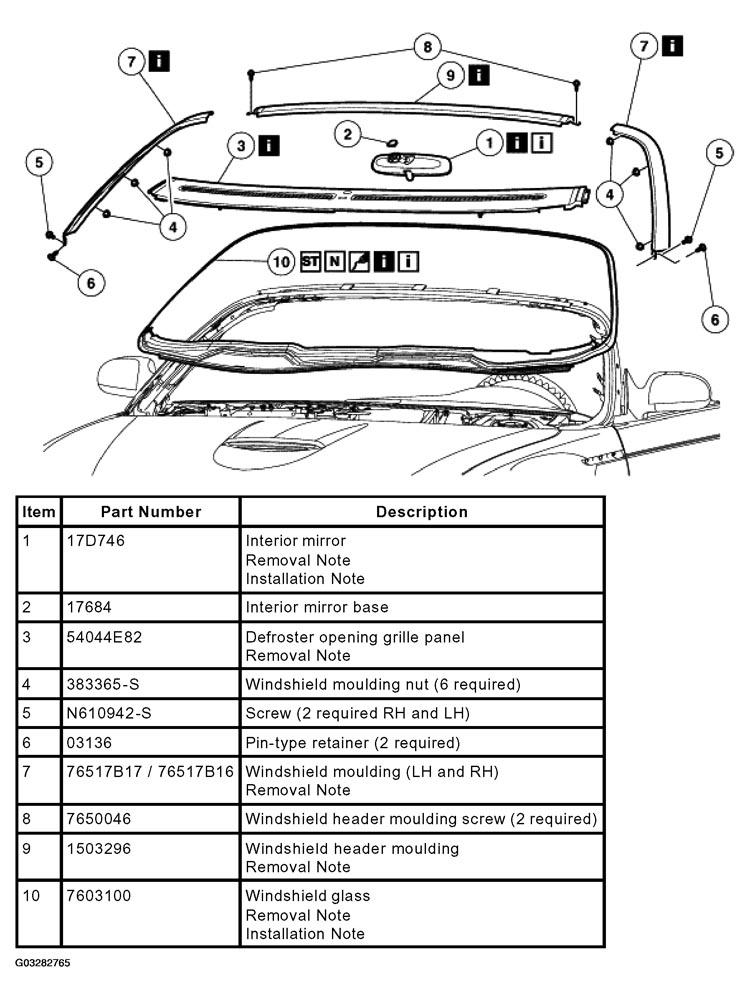

   Fig 2: Windshield Glass Removal Sequence

   Courtesy of FORD MOTOR CO.
4. To install, reverse the removal procedure.
