Ignition Switch

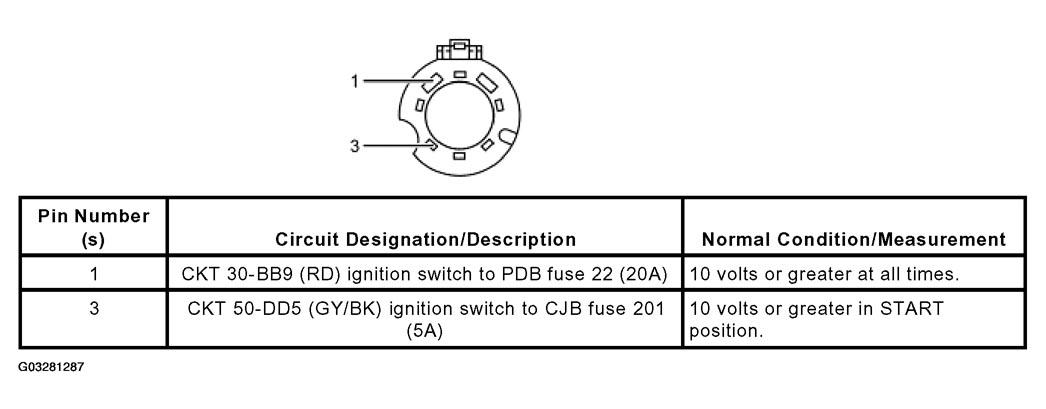

Fig 1: Identifying Instrument Cluster Pin
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
