Air Cleaner Assembly: Notes

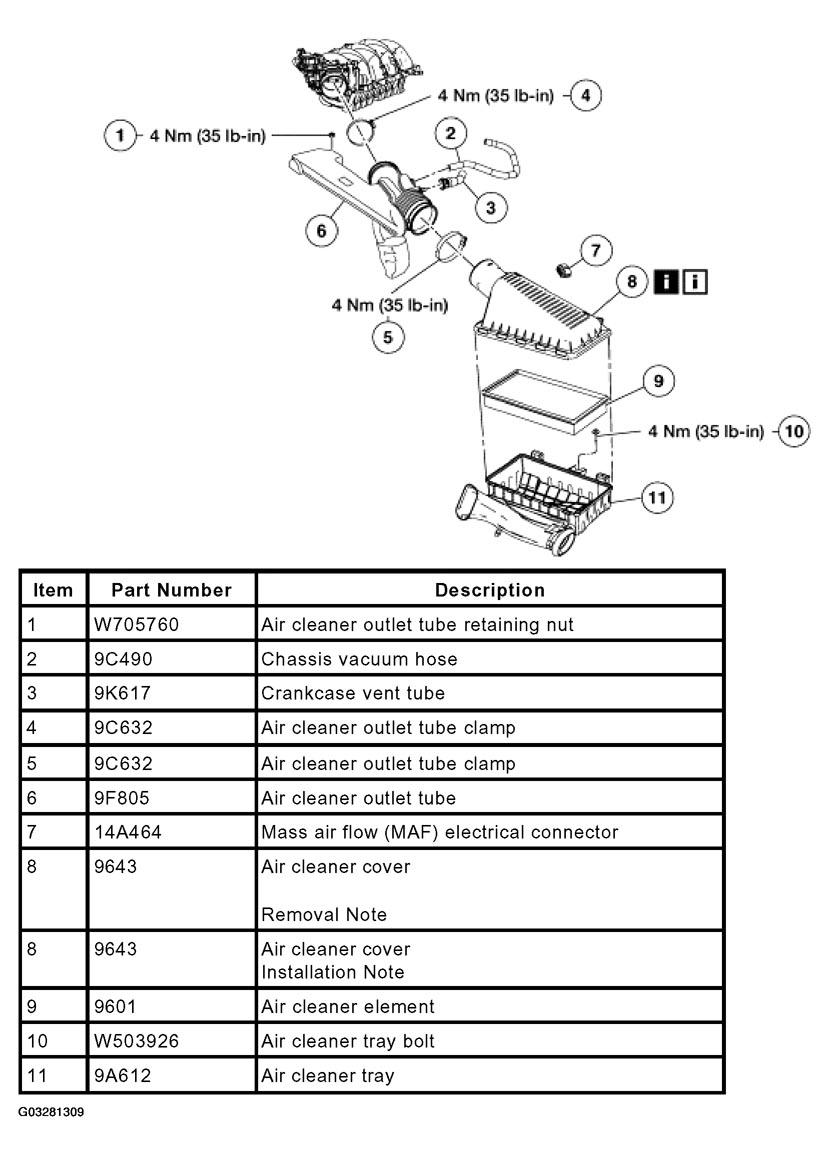

- Remove the components in the order indicated in the following illustration and table. To remove individual components, carry out only the listed stepsAIR CLEANER COMPONENT REMOVAL STEPS
Component Steps Air cleaner outlet pipe 1-6 Air cleaner element 1-4, 6-7 and 10 Air cleaner outlet tube and cover assembly 1-4, 6-7 and 10 Air cleaner 1-4, 6-7 and 10 - To install, reverse the removal procedure.
