Variable Assist Power Steering (VAPS) Module C2231a

WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

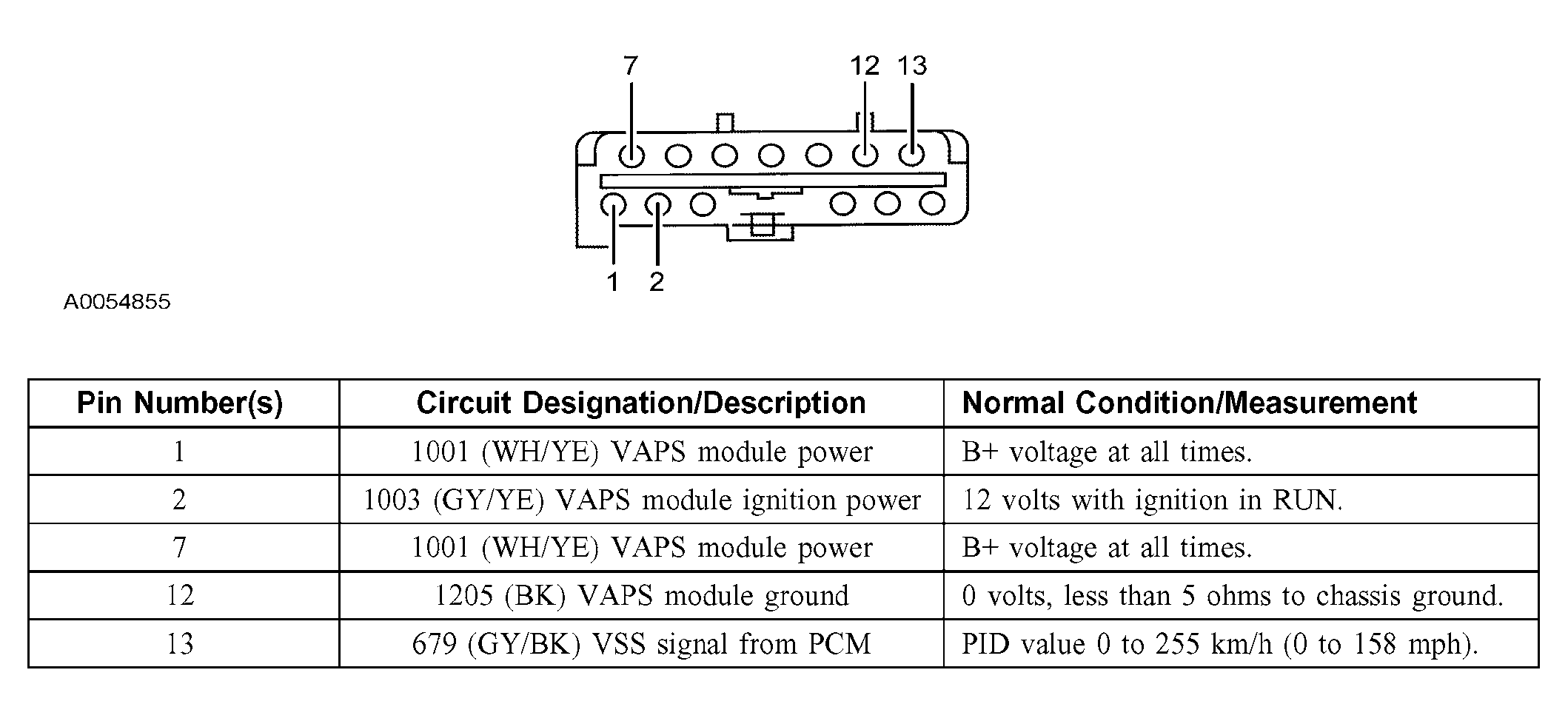

Fig 1: Identifying Variable Assist Power Steering Module C2231a Connector Pins
G04025862Courtesy of FORD MOTOR CO.
