Variable Assist Power Steering (VAPS) Module
WARNING: This page is about a different car, the 2004 Lincoln Aviator. However, it is still accessible from the selected car via links, so may be relevant.

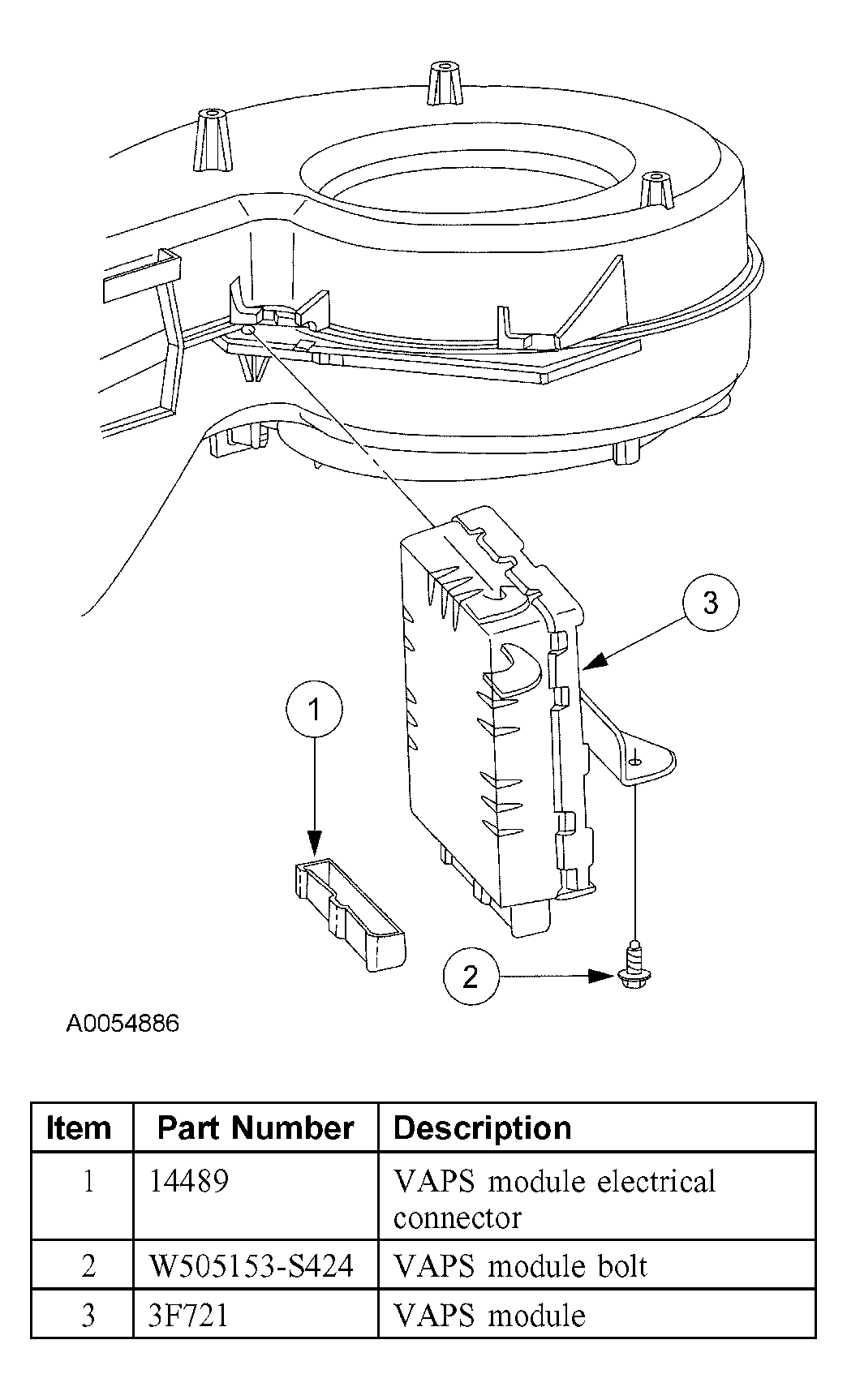

- Remove the components in the order indicated in the following illustration and table.
- To install, reverse the removal procedure.
- Calibrate the VAPS module. For additional information, refer to MODULE COMMUNICATIONS NETWORK article .
NOTE:
The variable assist power steering (VAPS) module is located under the RH side of the instrument panel, attached to the heater core and evaporator core housing.
