Item 33: Axle Isolator Bushing Assembly Note

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. Align the notches in the bushing at 45° from the fore and aft position.

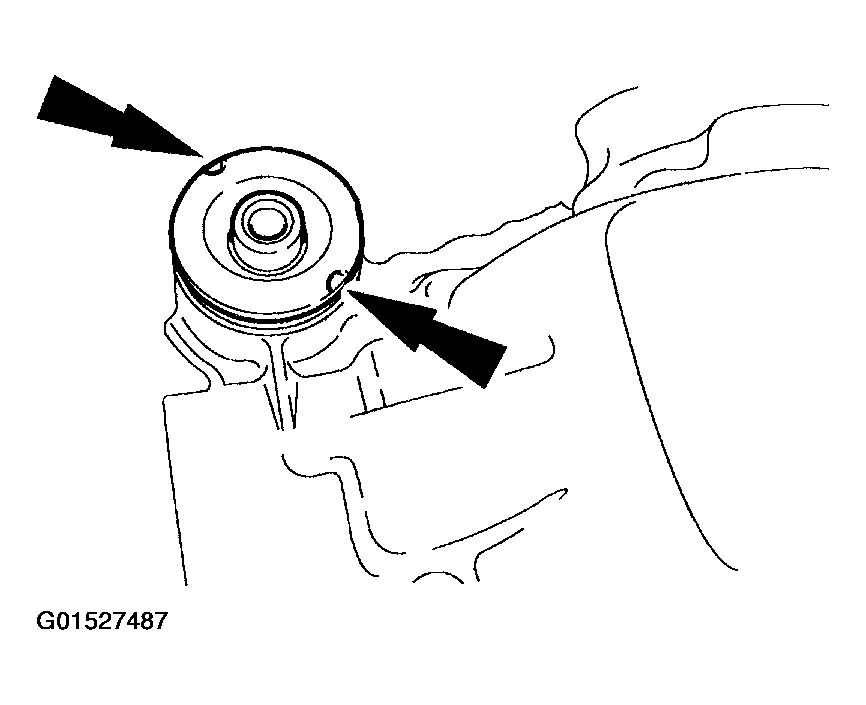

    Fig 1: Aligning Notches In Bushing
    G01527487Courtesy of FORD MOTOR CO.
  2. Using the special tools, install the rear axle isolator bushing.

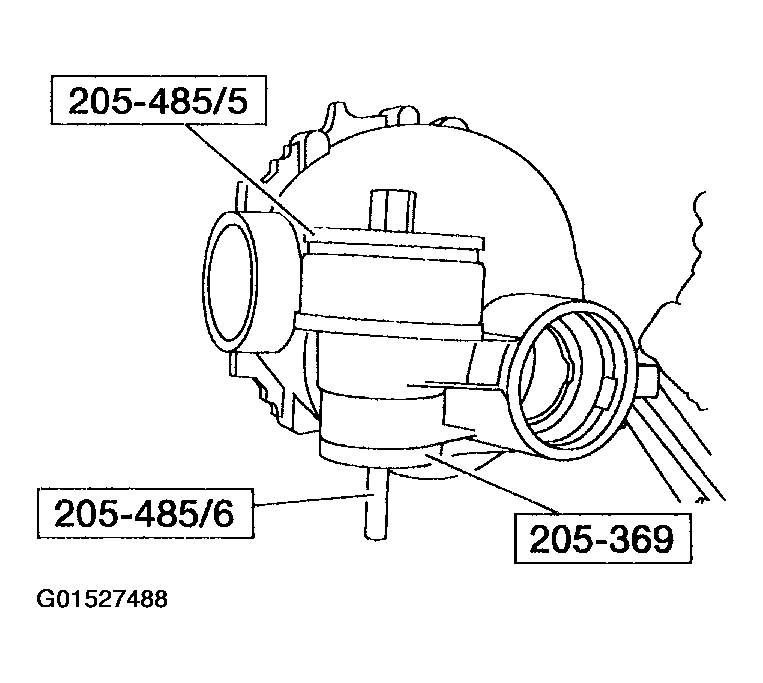

    Fig 2: Installing Rear Axle Isolator Bushing
    G01527488Courtesy of FORD MOTOR CO.
