Disassembly and Assembly: Notes

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the rear axle assembly. For additional information, refer to REAR AXLE ASSEMBLY .
  3. Remove the components in the order indicated in the following illustration and table.
  4. To assemble, reverse the disassembly procedure.

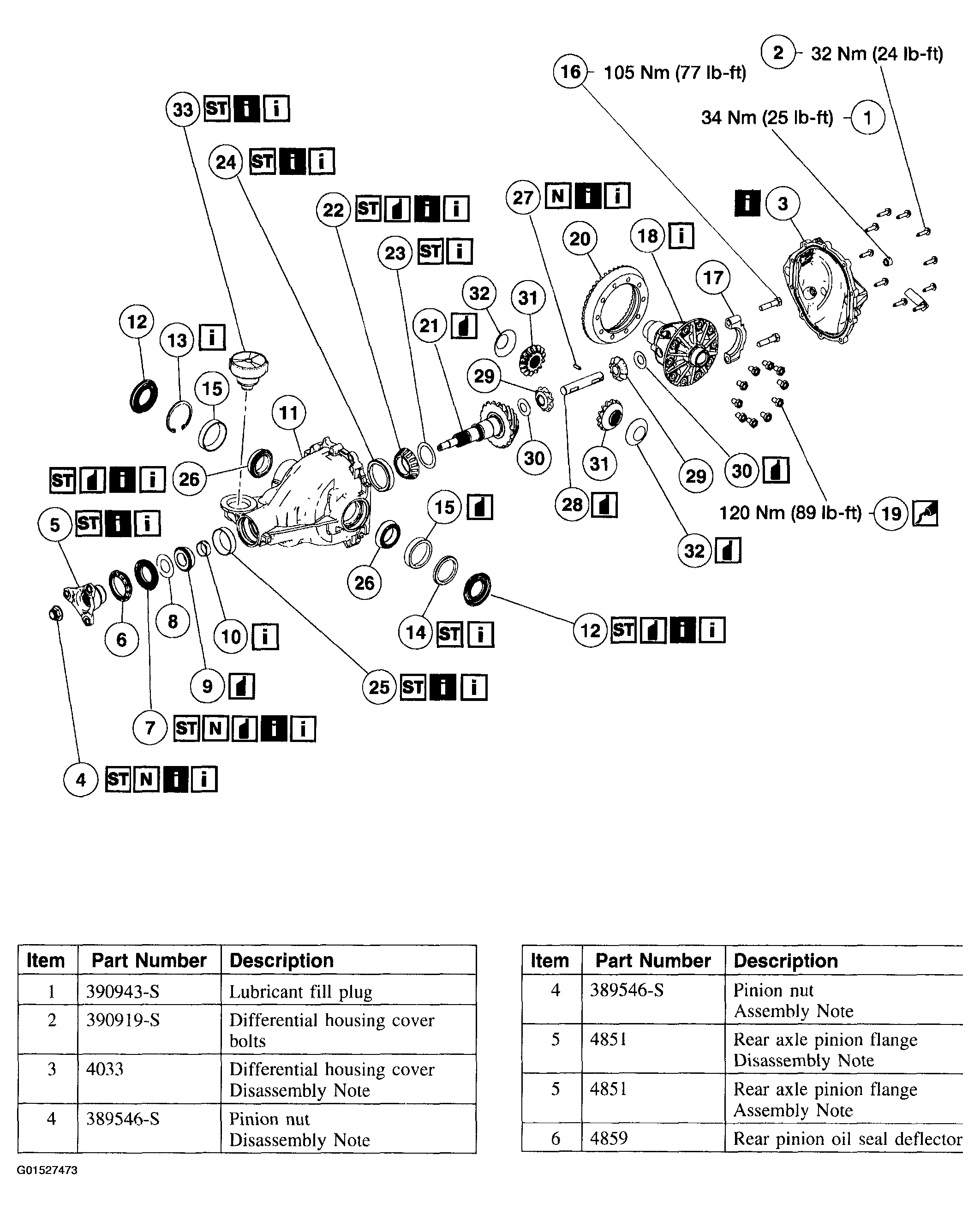

    Fig 1: Rear Axle Assembly Component Locator (Items 1-6)
    G01527473Courtesy of FORD MOTOR CO.

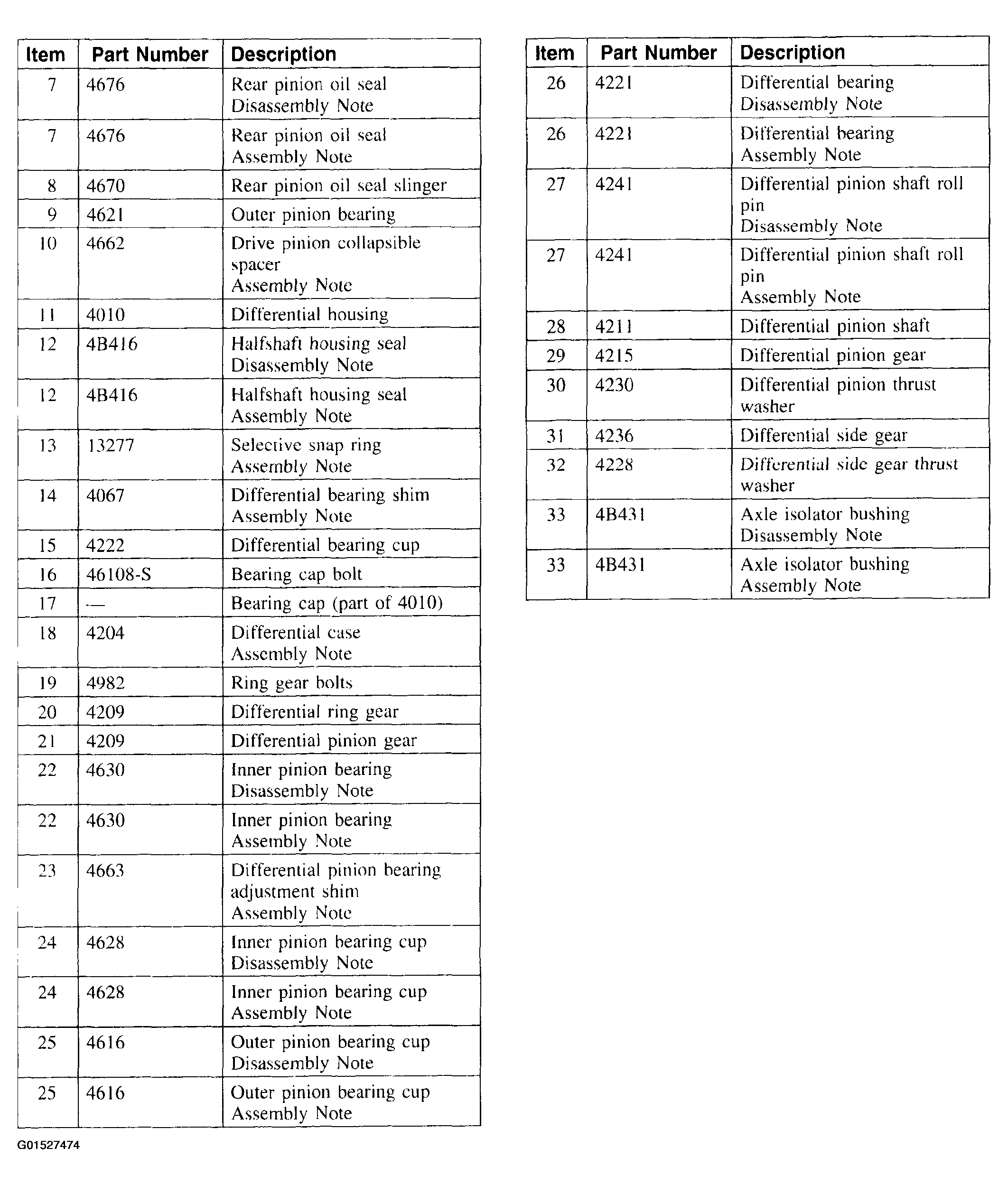

    Fig 2: Rear Axle Assembly Component Locator (Items 7-33)
    G01527474Courtesy of FORD MOTOR CO.
  5. Fill the axle with the specified quantity of the specified lubricant.
