Front Electronic Module (FEM)-C201c

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

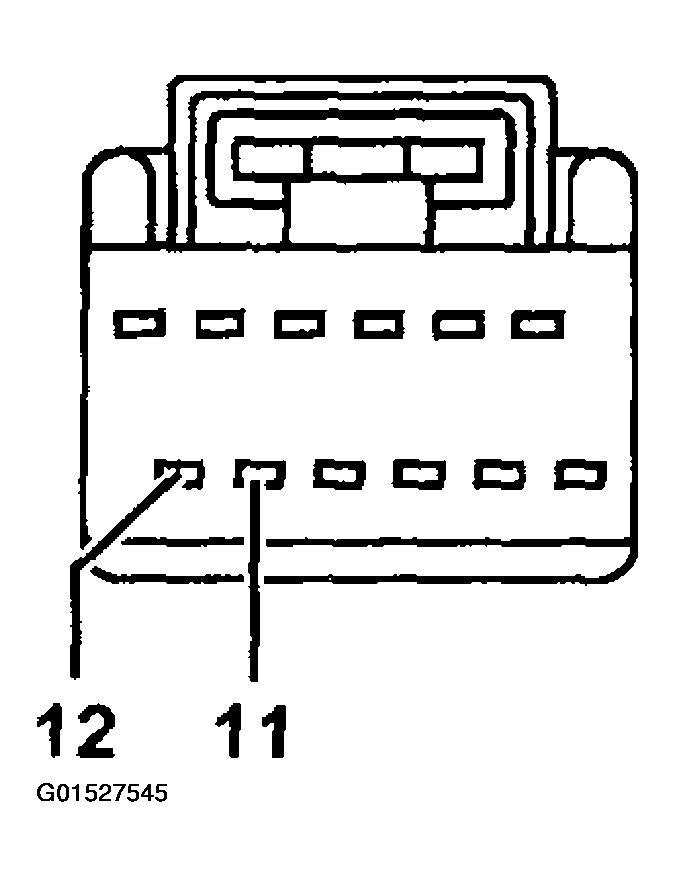

Fig 1: Front Electronic Module (FEM)-C201c Terminal
G01527545Courtesy of FORD MOTOR CO.

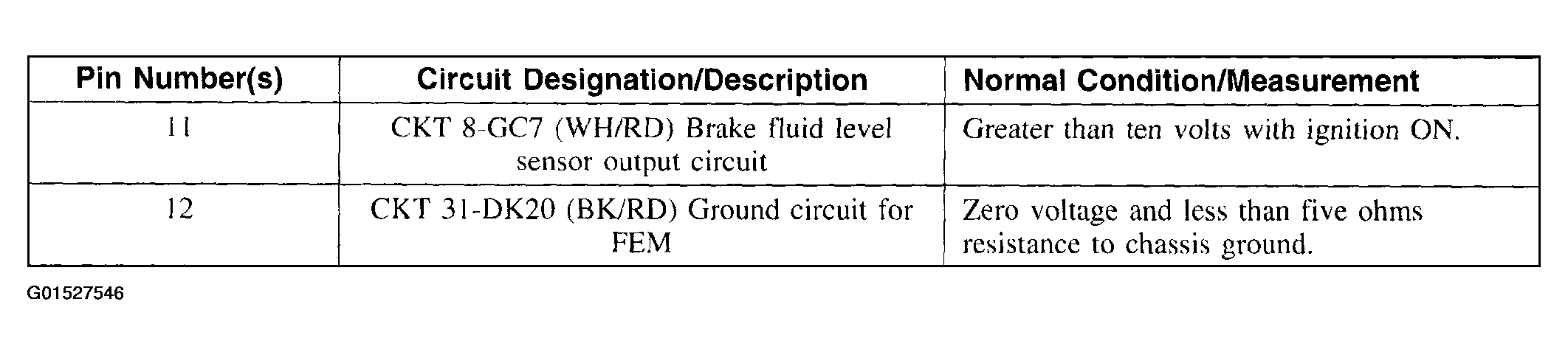

Fig 2: Connector Reference Chart
G01527546Courtesy of FORD MOTOR CO.
