Symptom Chart

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

Refer to ANTI-LOCK BRAKES for schematic and connector information.

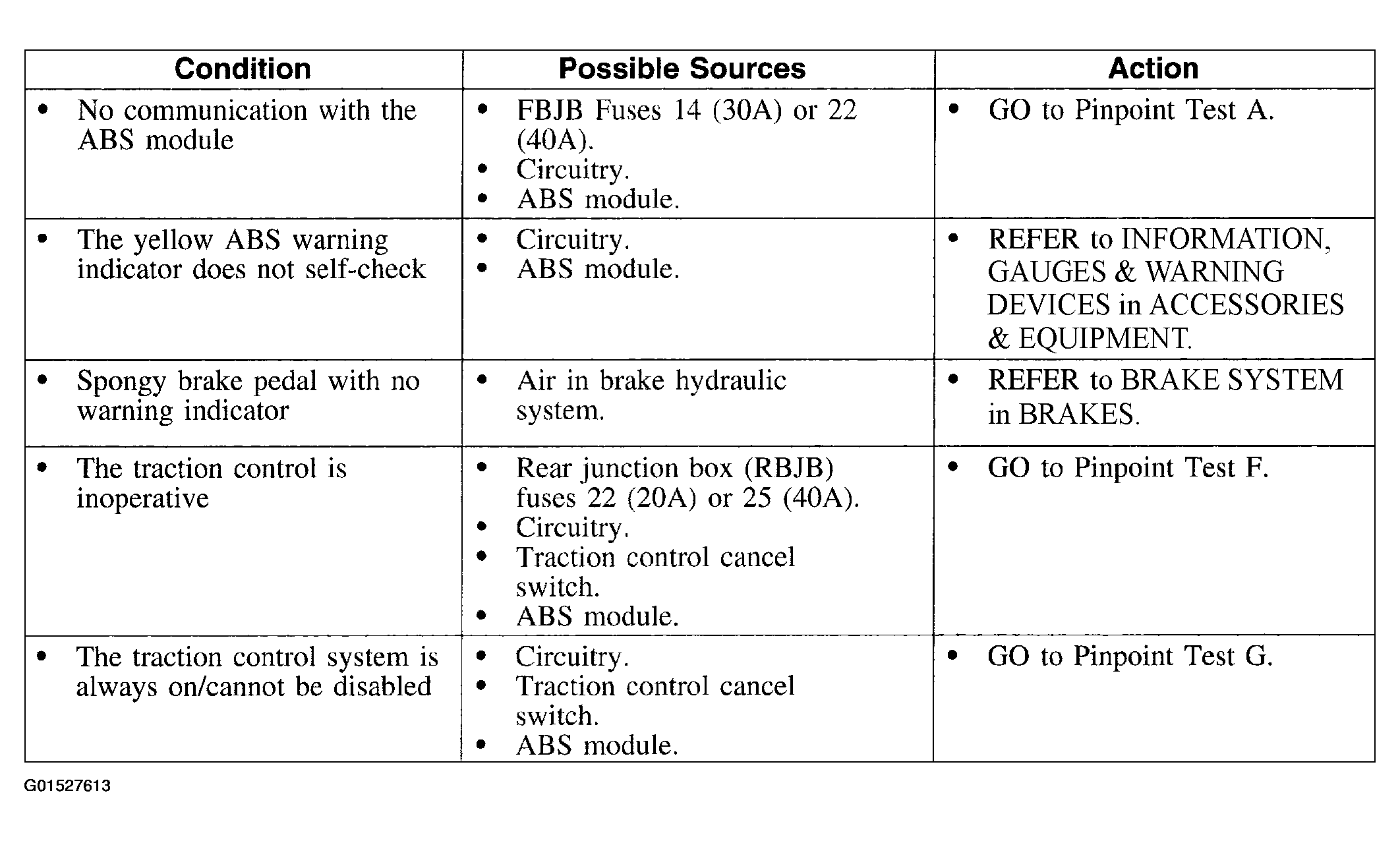

Fig 1: Symptom Chart
G01527613Courtesy of FORD MOTOR CO.
