Instrument Cluster Module (ICM) C220c

WARNING: This page is about a different car, the 2003 Ford Thunderbird. However, it is still accessible from the selected car via links, so may be relevant.

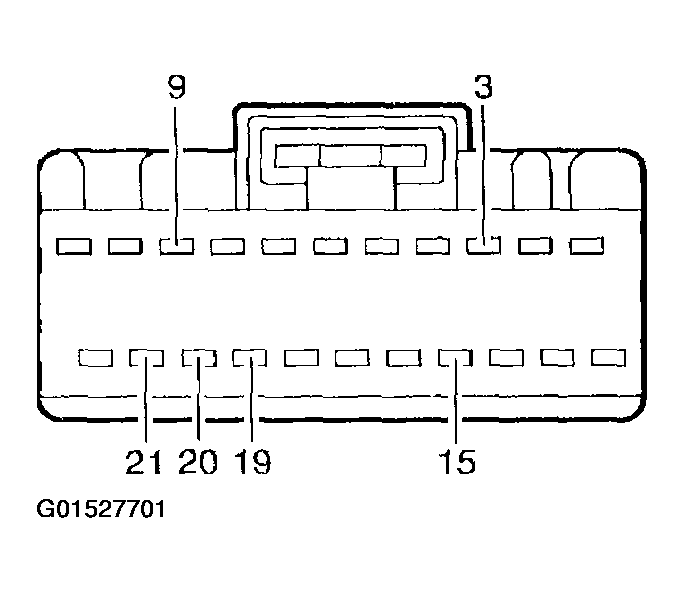

Fig 1: Instrument Cluster Module (ICM) C220c Terminal

Courtesy of FORD MOTOR CO.

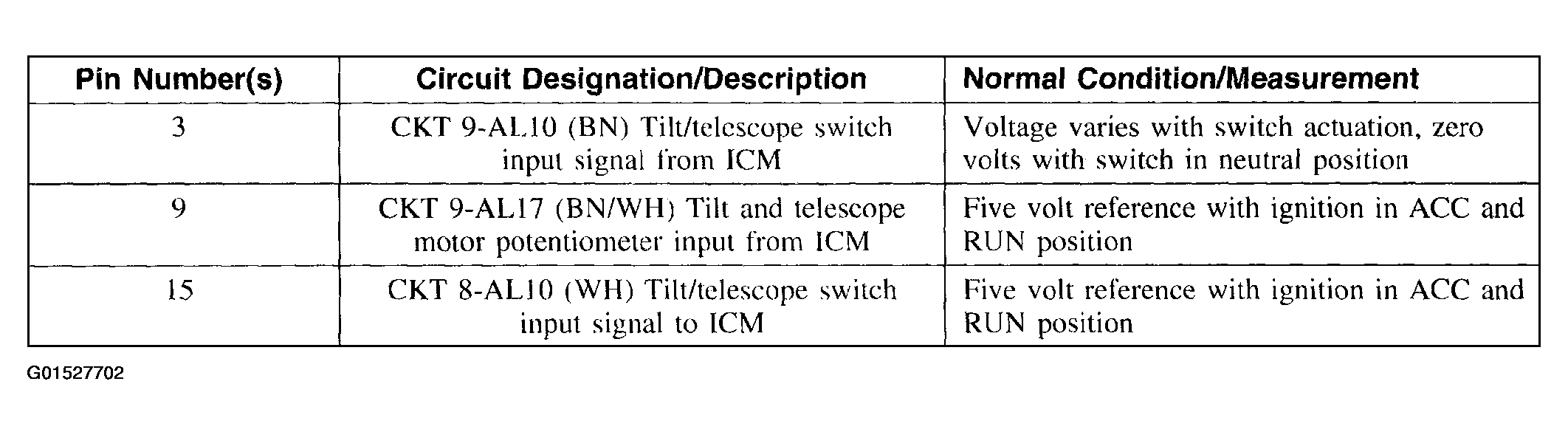

Fig 2: Connector Reference Chart (Pin Numbers 3, 9, 15)

Courtesy of FORD MOTOR CO.

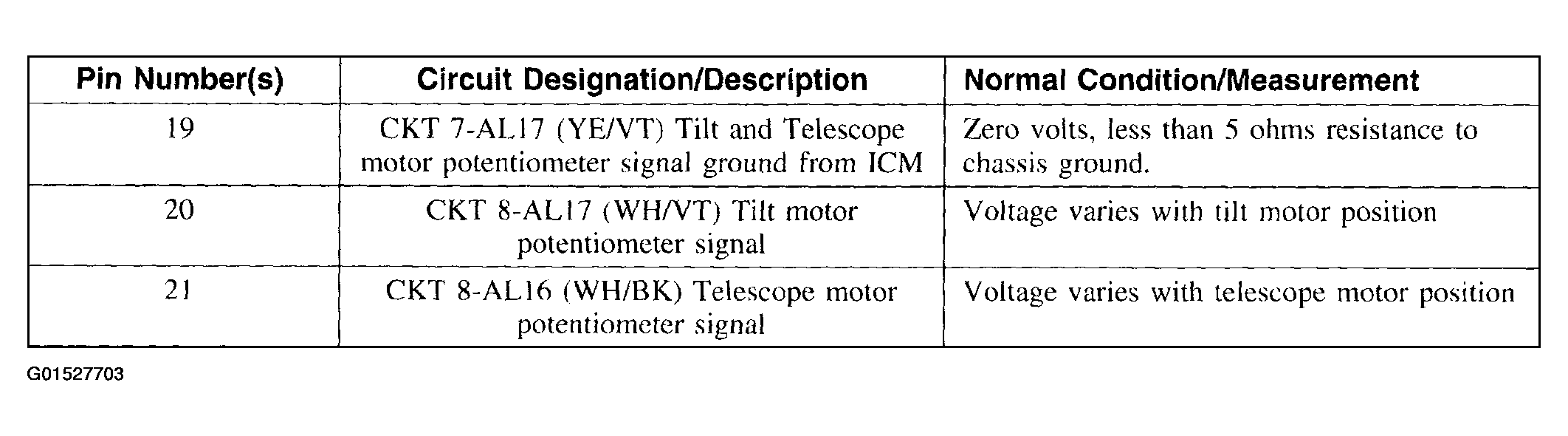

Fig 3: Connector Reference Chart (Pin Numbers 19, 20, 21)

Courtesy of FORD MOTOR CO.
